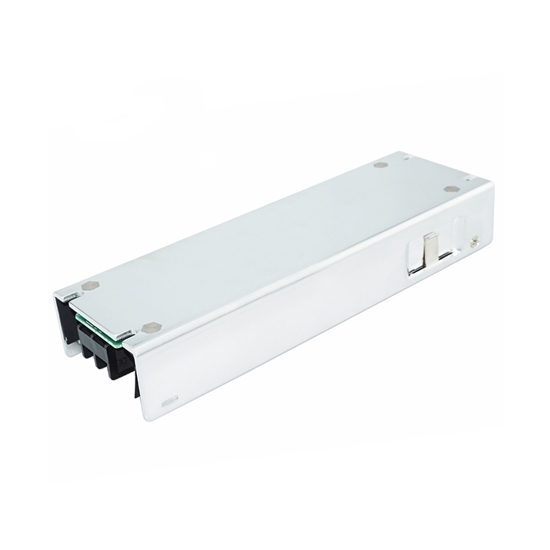

Isolated DC-DC Converter, 220V to 24V

220V to 24V isolated DC-DC converter is a step down converter that uses a synchronous rectification technology, and features high efficiency and power density. It provides that rated output voltage of 24V and the maximum output current of 12.5A.

Features

• 100% full power, high stability output.
• 100% full load aging test.
• 100% complete isolation of input and output, safe and stable.
• Aluminum alloy shell, small size and easy installation.
• Built-in overcurrent, over temperature, short circuit, reverse connection and other protection functions.
• Wide voltage 127-380VDC input, up to 96% conversion efficiency.
• Isolated DC-DC buck converter is widely used in artificial intelligence, communication base stations and industrial control, etc.

Isolated DC-DC Buck Converter Specification

• Model: ATOWGI25-220S24L
• Input Rated Voltage: 220V DC
• Input Voltage Range: 127-380V DC
• Conversion Efficiency: 95%
• Output Voltage: 24V DC
• Output Current: 12.5A
• Output Power: 300W
• Voltage Regulation: < 1%
• Load Regulation: < 2%
• Ripple & Noise: 300mVp-p
• Load Loss: 20mA
• Operating Temperature: -40°C~ +60°C
• Input Wiring Type: Terminal
• Output Wiring Type: Terminal
• Heat Dissipation Method: Natural Heat Dissipation of the Shell
• Dimensions: 185*60*30mm
• Weight: 0.5kg

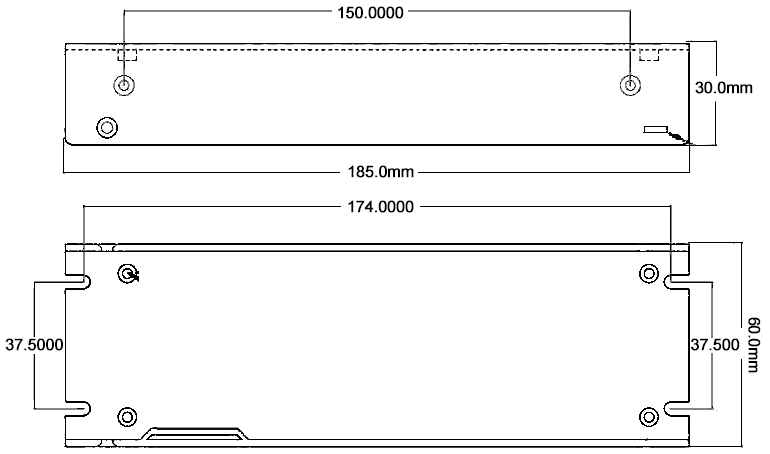

Dimension (Unit: mm)

Tips: What are the isolated DC-DC converter used for?

Isolated DC-DC converters are widely used in electric vehicles, electric cleaning vehicles, electric motorcycles and other electric vehicle power conversion systems, and are also used in mobile phones, MP3, digital cameras, portable media players and other products.
