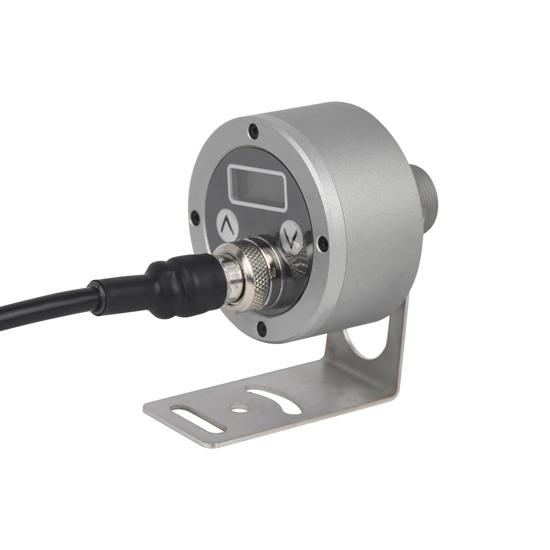

Non-Contact Infrared Temperature Sensor with Display

$540.99
Buy industrial non-contact infrared temperature sensor online, with LCD display, 0-5V or 2 wire/4wire 4-20mA signal output, accuracy ±1% or ±1.5℃. High precision IR temperature sensor with infrared measurement, can be used for temperature monitoring in electrical systems, manufacturing processes, and food safety.
*
SKU: ATO-IR-SA50AE
30-day Returns
Free Shipping
Delivery date: 6-12 days

ATO infrared temperature sensor with LCD display and 0-5V or 2 wire/4wire 4-20mA signal output, measures temperature without direct contact by detecting infrared radiation emitted by an object. This non-contact IR temperature sensor is used in environments where traditional contact sensors are impractical, such as in high-temperature settings or moving objects.

Specification

Model ATO-IR-SA50AE
Technical Parameters Temperature Range 0℃~500℃(LT)
Optical Resolution D:S = 20:1 (90% Energy)
Response Wavelength 8~14μm
Response Time 150ms (95%)
Accuracy ±1% reading or ±1.5℃, Take the Maximum Value
Repeatability ±0.5% reading or ±1.5℃, Take the Maximum Value
Emissivity 0.100~1.000 (Adjustable)
Electrical Characteristics Working Power 24 VDC±20%,<50 mA
Signal Output (Optional) 0-5V or 2 wire 4-20mA, 4 wire 4-20mA
Digital Communication Part TTL
Minimum Load 10KΩ (Voltage Output)
Maximum Load 500Ω (Current Output)
Mechanical parameters Protection Level IP65(NEMA-4)
Ambient Temperature 0℃~70℃
Storage Temperature 20℃~85℃
Relative Humidity 10%~95% (Non-Condensing)
Connection Cable Temperature Resistance -20℃~80℃
Connection Cable Length 3m (Standard), 5m or 10m
Weight 200g


Dimension (Unit: mm)

Non-contact infrared temperature sensor with display dimension

Detail

Infrared temperature sensor with display detail

Note:

  1. In the temperature measurement state, please press (∧) and hold it, then press (∨) to enter the setting mode.
  2. Press (∧) to select the item you want to modify.
  3. After selecting the item you want to modify, press (∨) again to make the (-) symbol appear on the right side of the item, indicating that you have entered the setting mode.
  4. You can press (∧) to increase or (∨) to decrease to change its setting value.
  5. After confirming that the item is set, wait for 7 seconds and the button does not move. The non contact IR temperature sensor will automatically store the set parameter value and return to the temperature measurement state immediately.

Optical Resolution

Infrared temperature sensor with display optical resolution

The ratio of the distance from the non contact infrared temperature sensor to the object to the size of the spot being measured (D:S). The larger the ratio, the better the resolution of the instrument and the smaller the measured spot size. The closer the measured object is to black, the higher the measurement accuracy.

Tips: What is a non-contact infrared temperature sensor?

An infrared temperature sensor is a non-contact device used to measure the temperature of an object or surface. It detects infrared radiation emitted by the object, which is directly proportional to its temperature. The sensor converts this radiation into an electrical signal, then processed to determine the temperature reading.

These IR temperature sensors are commonly used in environments where traditional contact-based temperature measurements are impractical or impossible, such as in high-temperature or moving objects. Infrared temperature sensors are widely used in industrial automation, manufacturing, and healthcare applications, including monitoring equipment, detecting hotspots in electrical systems, and medical diagnostics.

The key advantages of infrared temperature sensors include their ability to provide quick and accurate temperature readings, durability in harsh conditions, and the capability to measure temperatures from a distance without affecting the object being measured.
