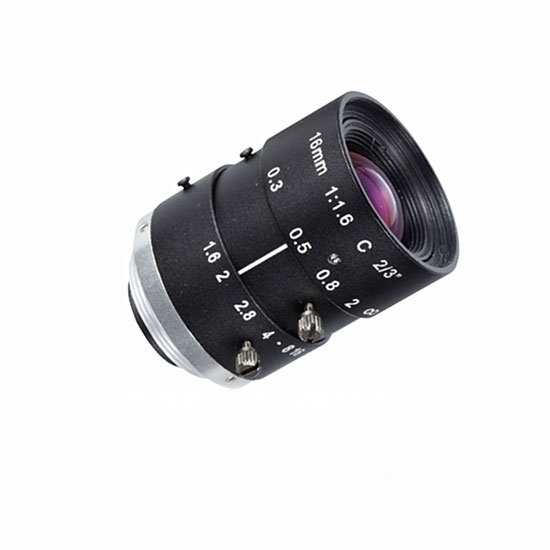

    Industrial Camera Lens, Fixed Focus, 2/3", 16mm, F/1.6, C-Mount

    $328.57
    This lens is fixed focus lens for C-mount (1-32UNF) industrial camera, with iris manually adjusted, 2/3" image size, 16.0mm focal length, and f/1.6 aperture, to deliver sharp and clear photos.
    SKU: ATO-LEN-1616
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Indutrial camera manual iris fixed focus lens with focal length 16.0mm and aperture F/1.6 is high cost-performance, and an ideal choice to help users capture realistic and clear images in various industrial detections, intelligent transportation and machine vision.

    Lens Specification

    Model LEM-1616-MP5
    Sensor 2/3 CCD/CMOS
    Image Format (HxV, D) 8.8×6.6, 11
    Format/Image Size 2/3"
    Focal Length/EFL 16.0mm
    F-number/Aperture F/1.6
    Field of View (FOV) / 2/3" 1/1.8"
    Diagonal (D) 37° 30°
    Horizontal (H) 29.5° 24.5°
    Vertical (V) 22.6° 18°
    Back Focal Length 9.03mm
    Lens Effective Diameter Front ∅19.8mm
    Back ∅11.1mm
    Lens Construction 9-7
    TV Distortion < -0.5%
    Resolution 5 Mega Pixel
    Relative Illumination > 80%
    Iris Type Manual
    Max Chief Ray Angle 15.3°
    MOD 0.2m
    Mount C-Mount / 1-32UNF
    TTL 57.02mm
    Dimension (∅×L) ∅29×41.5mm
    Weight 110g

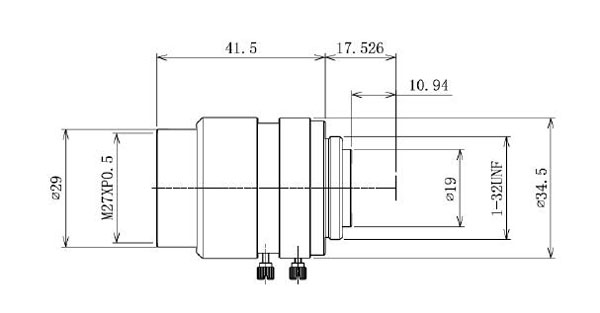

    Industrial Camera Lens Dimension

    16mm f1.6 industrial camera lens dimension

    Tips: Why do you need a industrial camera lens?

    The industrial camera lens is equivalent to the role of the pinhole in the pinhole imaging. But what are they differences? On the one hand, the light transmitting aperture of the lens is many times larger than the pinhole, and it can receive more light in the same time, so that the industrial camera can obtain proper exposure in a short time (milliseconds to seconds). On the other hand, the industrial lens can focus the beam and produce a sharper image on the camera than pinhole imaging.

    Fixed focus lenses are commonly used in machine vision, and the aperture is manually adjusted and generally does not allow automatic adjustment. The industrial camera lens has two rings - focus ring and aperture ring, to prevent accidental touch. Two rings of industrial lens have locking screws. Please note that the focus ring is not used to adjust the focus, but to adjust the image distance to ensure that the clear image falls on the focal plane.

    1. Industrial Camera PDF Catalogue

    GigE Vision Industrial Camera Catalog.pdf

    USB Industrial Camera Catalog.pdf

    2. Industrial Lens PDF Catalogue

    Industrial Camera Lens Catalog.pdf
