    Incremental Rotary Encoder, Shaft, 1600 ppr

    5 out of 5 based on 1 reviews | Write a review
    $183.87

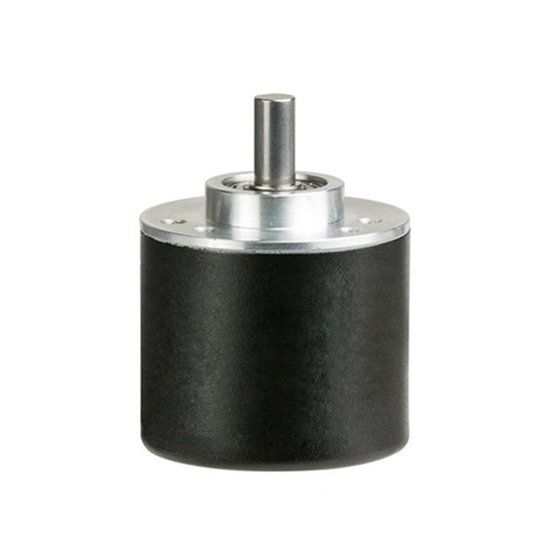

    Inexpensive optical rotary encoder adopts stainless steel shaft, high reliability, high quality, several output modes to choose, manufacturer direct sale. Incremental encoder 1600 ppr with 8mm shaft diameter, 52mm shell diameter, 5000 rpm maximum shaft speed can be used for injection molding machines, robots and CNC machine centers.
    *
    *
    *
    SKU: ATO-IRE-1600PS
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Incremental optical rotary encoders with 1600 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

    Features:

    • Incremental rotary encoder internal adopts ASIC devices
    • High reliability, long life
    • Anti-jamming performance
    • Small size, light weight, compact structure
    • Easy installation

    Specification:

    Basics Model ATO-S5208G-1600BM
    Weight 100 g
    Wiring Color Red Black Green White Yellow Brown Gray Orange
    Signal Vcc GND A B Z A- B- Z-
    Mechanical properties Maximum shaft speed (r/min) 5000
    Starting torque <0.03Nm (25℃)
    Maximum shaft load Radial load: 50N, axial load: 20N
    Shock resistance 50G/11ms
    Anti-vibration 10G (10~2000Hz)
    Rotational inertia 4X10-8kgm2
    Operating temperature -30~+85℃ (-22~+185℉)
    Storage temperature -35~+95℃ (-31~+203℉)
    Protection Level IP51
    Electrical characteristics Output circuit Open-collector output Voltage output Push-pull output Line driver output
    Supply voltage Vcc DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC5V±0.2 DC 5~24V
    Current consumption ≤60mA ≤60mA ≤60mA ≤100mA
    Output high level ≥3.5V ≥Vcc-2.5V - - ≥2.5V ≥Vcc-2.5V
    Output low level ≤0.5V ≤0.5V - - ≤0.5V ≤1.0V
    Rise time Tr ≤500ns ≤1500ns - - ≤200ns ≤500ns
    Fall time Tf ≤100ns ≤300ns - - ≤200ns ≤200ns
    Maximum frequency response 0~100kHz 0~100kHz 0~100kHz 0~100kHz 0~100kHz 0~100kHz

    Model selection:

    Shaft type Diameter of shell Diameter of shaft Connection type Cable length * Resolution Production identifier Z signal Z signal wavelength Output mode * Voltage *
    S: Shaft 52: 52mm 08: 8mm G: Cable edge output 1: 1m
    2: 2m
    3: 3m
    4: 4m
    1600: 1600 ppr B M: Output 1 if receiving Z signal Default: 1T C: Open-collector NPN
    CP: Open-collector PNP
    T: Voltage ouput NPN+R
    P: Push-pull output NPN+PNP
    L: Line driver 26LS31
    K: Line driver 7272
    5: +5VDC
    830: +8~30VDC

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Tips: How to choose pulse per revolution (PPR)?

    When choosing the encoder's PPR value, keep in mind a few simple rules. Make sure that the selected PPR value does not exceed the maximum frequency of the controller or encoder. Try to select PPR approached to the value displayed, thus eliminating or reducing the necessity for calibration constants. For example, if you want to display 12 inch per circle, select PPR 12. Select 1200 PPR if you want to display 12.00 inches. However, do not mistakenly forget the input multiplier of controller. Most controllers have X2 or X4 logic. If it is X2 logic, it will change to PPR 600 when displaying 12.00; when X4 logic becomes PPR 300. Remember when creating a PPR, be sure to remember the frequency. When selecting PPR, the maximum speed cannot exceed the frequency that the encoder can handle. The opposite situation is the same, please don't choose too low PPR, otherwise the controller can't identify the signal. Try to select a PPR that let the calibration constant is between 0.5 and 1.
