    Incremental Rotary Encoder, Shaft, 1024 ppr

    $189.63

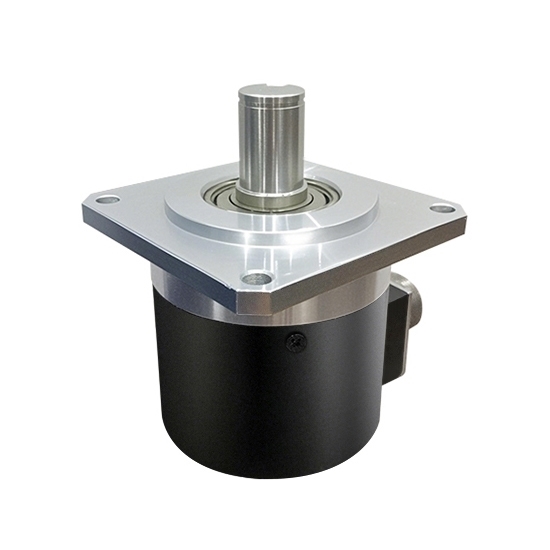

    Favourable price optical rotary encoder adopts stainless steel square flange, Φ15mm stainless steel shaft and Φ58mm shell. Incremental rotary encoder with 1024 ppr resolution has high reliability, good antijamming capability and long service life. It can be widely used in automation control and measurement systems.
    *
    *
    *
    SKU: ATO-IRE-1024PS
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Incremental optical rotary encoders with 1024 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

    Features:

    • Incremental rotary encoder internal adopts ASIC devices
    • High reliability, long life
    • Anti-jamming performance
    • Small size, light weight, compact structure
    • Easy installation

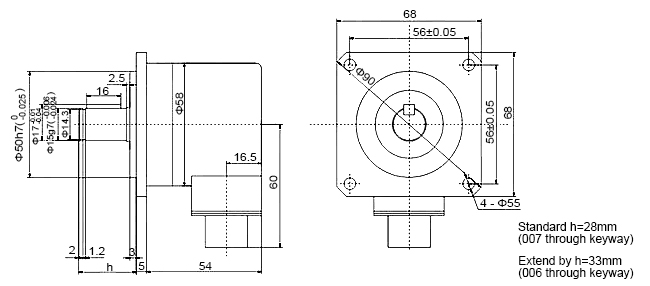

    Specification:

    Basics Model ATO-F5815C-1024BM
    Weight 100 g
    Wiring Signal Vcc GND A B Z A- B- Z- Shielded wire
    Color Red Black Green White Yellow Brown Gray Orange Copper
    5 pin plug 3 5 1 2 4 - - - -
    7 pin plug 1 4 3 5 2 - - - 6
    9/10 pin plug 1 4 5 3 2 7 6 8 9
    19 pin plug 8 10, 12 1 3 2 13 15 14 17
    Mechanical properties Maximum shaft speed (r/min) 5000
    Starting torque <0.03Nm (25℃)
    Maximum shaft load Radial load: 50N, axial load: 20N
    Shock resistance 50G/11ms
    Anti-vibration 10G (10~2000Hz)
    Rotational inertia 4X10-8kgm2
    Operating temperature -30~+85℃ (-22~+185℉)
    Storage temperature -35~+95℃ (-31~+203℉)
    Protection Level IP51
    Electrical characteristics Output circuit Open-collector output Voltage output Push-pull output Line driver output
    Supply voltage Vcc DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC5V±0.2 DC 5~24V
    Current consumption ≤60mA ≤60mA ≤60mA ≤100mA
    Output high level ≥3.5V ≥Vcc-2.5V - - ≥2.5V ≥Vcc-2.5V
    Output low level ≤0.5V ≤0.5V - - ≤0.5V ≤1.0V
    Rise time Tr ≤500ns ≤1500ns - - ≤200ns ≤500ns
    Fall time Tf ≤100ns ≤300ns - - ≤200ns ≤200ns
    Maximum frequency response 0~100kHz 0~100kHz 0~100kHz 0~100kHz 0~100kHz 0~100kHz

    Model selection:

    Shaft type Diameter of shell Diameter of shaft Connection type Cable length * Resolution Production identifier Z signal Z signal wavelength Output mode * Voltage *
    F: Shaft+Flange 58: 58mm 15: 15mm C: Plug edge output 1: 1m
    2: 2m
    3: 3m
    4: 4m
    1024: 1024 ppr B M: Output 1 if receiving Z signal Default: 1T C: Open-collector NPN
    CP: Open-collector PNP
    T: Voltage ouput NPN+R
    P: Push-pull output NPN+PNP
    L: Line driver 26LS31
    K: Line driver 7272
    5: +5VDC
    830: +8~30VDC

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Tips: What is open collector output?

    An open collector output is an NPN transistor. NPN transistors allow leakage current in the common terminal. It can be thought of as a switch that allows the circuit to be connected to a common terminal after a load. This means that a power supply is needed if have output. The power supply must be connected to the output after going through load, or NPN transistor is only to establish a path to the common end, which is a dry contact. Therefore, if measure an open collector output voltage that is not connected to any power supply, there is no voltage change. If the open collector is working properly, the voltage should be detected after going through the output load.
