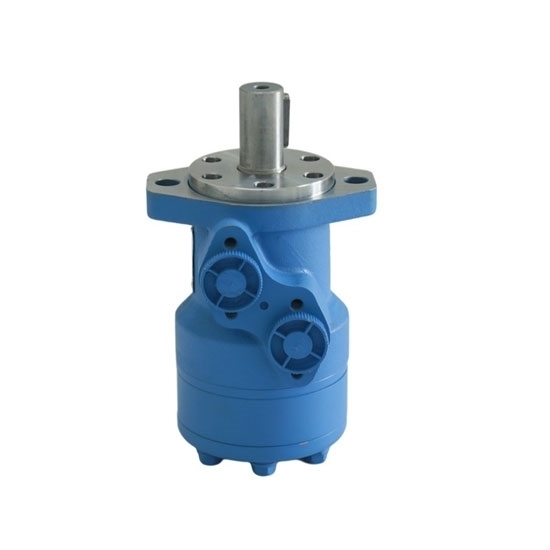

High torque low speed orbital hydraulic motor is widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machines, cleaners, grass cutters, winches, conveyors, slews, sweeper drives, augers, cutters, mowers and chippers.
Specification
Model |
ATO-OMP-80 |
Shaft Type (Optional) |
Flat Key, Splined |
Flange Type (Optional) |
2 Bolts, 4 Bolts |
Displacement |
80 cc/rev (80 cm3/rev) |
Working Pressure |
15 MPa |
Flow |
Continuous |
57 LPM |
Intermittent |
68 LPM |
Max.Speed |
Continuous |
679 rpm |
Intermittent |
811 rpm |
Pressure |
Continuous |
124 ∆Bar |
Intermittent |
138 ∆Bar |
Torque |
Continuous |
124 Nm |
Intermittent |
139 Nm |
Weight |
7kg |
Note:
- A simultaneous maximum torque and maximum speed are not recommended.
- ∆Bar refers to true pressure difference between inlet port and outlet port.
- Continuous Rating means that the motor may be run continuously at these ratings.
- Intermittent operation refers to that the motor running time must not exceed 10% per minute under this condition.
*To assure the best orbital motor life, run it for approximately one hour at 30% of rated pressure before application to full load. Be sure this motor is filled with fluid before any load applications.
Dimensions (Unit: mm)
L1=146mm
Hydraulic Orbital Motor Shaft (Unit: mm)
Flange Types (Unit: mm)
L=152mm
Details
Tips: What is the relationship between orbital motor and hydraulic pump?
The orbital motor is a power unit and is used to provide torque. The hydraulic pump supplies oil and pressure to the hydraulic orbital motor. It is equivalent to the relationship between the battery and the motor.
