HMI Touch Screen, 7 Inch, 800 x 600

5 out of 5 based on 2 reviews | Write a review

$645.89

7'' HMI touch screen 800x600 pixels, 1 USB host, Human Machine Interface with 65536 color TFT display, with a whole new 2D drawing technique, the screen resolution is enhanced for more realistic images and for more colorful and vivid displays. RS-232/RS-422/RS-485, USB disk, ethernet, audio output, SD card and more are supported for various applications.

SKU: ATO-HMI-7B

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

HMI 7 inch display touch screen with 65,536 color display, Human Machine Interface equipped with LED backlights which provide energy-efficient lighting that is made without mercury, reduces energy use and CO2 emissions, and protects the environment.

Specification:

Model		ATO-DOP-B07S515
LCD Module	Display	7" TFT LCD
	Resolution	800 x 600 Pixels
	Back Light	LED Back Light
	Back Light Brightness	450 cd/m²
	Back Light Life	20000 Hours
	Display Colors	65536 Colors
MCU		400 MHz
Flash ROM		128 MB
RAM		64 MB
Backup Memory (Bytes)		16 MB
Audio Output		Multi-Tone Frequency (2K ~ 4K Hz) / 80dB
AUX		N/A
Ethernet		N/A
Memory Card		SD card (supports SDHC)
USB		1 USB Host Ver 1.1 / 1 USB Client Ver 2.0
Serial COM Port	COM1	RS-232 (supports hardware flow control)
	COM2	RS-422 / RS-485^*2
	COM3	RS-422 / RS-485^*2
VGA Input		N/A
Delta Professional Integration Function		N/A
Function Key		N/A
Perpetual Calendar RTC		Built-in
Cooling		Natural air circulation
Certification		CE, UL
Waterproof		IP65 / NEMA4 / UL Type 4X
Operation Voltage^*3		DC +24V (-15% ~ 15%)^*2
Voltage Endurance		A500V for 1 minute (between charging DC24 terminal and FG terminals)
Power Consumption^*5		7.68 W
Backup Battery		3V lithium battery CR2032 x 1
Backup Battery Life		Depends on the temperature used and the conditions of usage, usually about 3 years or more at 25° C
Operating Temperature		0℃ ~ 50℃
Storage Temperature		-20℃ ~ 60℃
Ambient Humidity		10% ~ 90% RH (0 ~ 40° C), 10% ~ 55% RH (41 ~ 50° C), Pollution Degree 2
Vibration		IEC 61131-2 compliant 5Hz ~ 8.3Hz = Continuous: 3.5mm, 8.3Hz ~ 150Hz = Continuous: 1.0g
Shock		IEC 60068-2-27 compliant 15g peak for 11ms duration, X, Y, Z, directions for 6 times
Dimensions (W) x (H) x (D)		184 x 144 x 50mm
Mounting Dimension W) x (H)		172.4 x 132.4mm
Weight		800g

Features

1. ATO HMI Embedded Linux System Open system for flexible and stable program development.
2. New software DOPSoft 4.0 offers more complete functions and a better interface.
3. Compliant with industrial operation environments, CE / UL Certified Compliant with CE and UL standards.
4. Ethernet Communication Connects to master device, or PLC with high-speed Ethernet communication.
5. Communication Isolation COM and Ethernet ports with built-in isolation circuits enhance communication stability. FTP/eMail Supported Simple data transmission and real-time status report.
6. Easy setting to play vivid GIF elements.
7. Simple and easy structural programming language to meet various demands.
8. Pressing times >10,000,000 Effective pressing times increased through strict endurance tests.
9. IP65 Rating, the front case protects the HMI from snow, rain, and dust.
10. Diagnostics Function Collects and solves issues remotely, power Isolation, protects the HMI from accidental surge interference.
11. VNC Remote Monitoring Remote control with mobile devices, supports PDF and TXT Reader, PDF and TXT files supported, User-Friendly, intuitive operation interfaces for users.

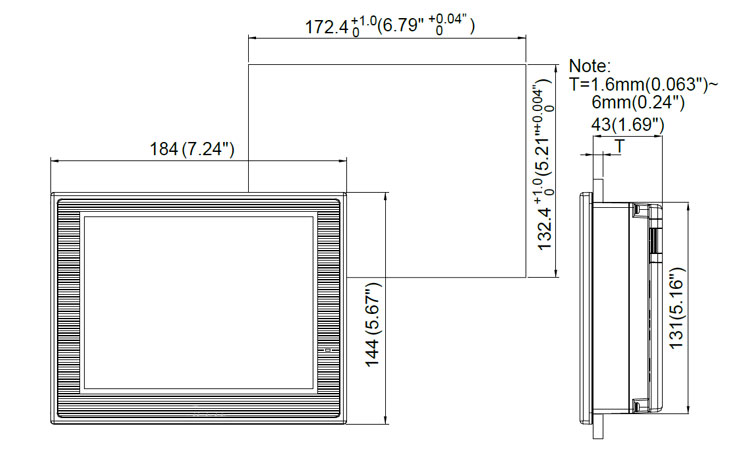

ATO-DOP-B07S515 Dimension (Unit: mm)
Tips: The composition and working principle of HMI
Human-machine interface products are composed of hardware and software. The hardware part includes a processor, a display unit, an input unit, a communication interface, and a data storage unit. unit. According to different product grades of HMI, the processor can choose 8-bit, 16-bit and 32-bit processors respectively. HMI software is generally divided into two parts, namely the system software running in the HMI hardware and the screen configuration software running in the Windows operating system of the PC. The user must first use the HMI screen configuration software to create the "project file", and then download the prepared "project file" to the HMI processor through the PC and the serial communication port of the HMI product to run.

HMI and PLC Programming and Testing

This video will show you HMI and PLC programming and testing.

How to Control a Stepper Motor Using a PLC and HMI?

This video shows you how to configure a PLC, HMI, motor driver, and proximity sensor to perform Origin Return (OPR) control of a stepper motor.

Controlling the Forward and Reverse Motion of Stepper Motor Using PLC and HMI

In this video, you are shown the setup and programming required to control the forward and reverse motion of a stepper motor using a PLC, HMI, and motor driver. By following these instructions and setup, you can effectively achieve easier and precise control of the rotation of the stepper motor, and further optimize your industrial automation process by putting this combination of techniques into practice.

PLC and HMI Analog Output Programming

This video introduces the method of using PLC and HMI analog output programming for VFD frequency control.

How Does HMI Communicate with PLC?

HMI and PLC need to set the same communication parameters and match the same communication protocol to communicate successfully, which is the key to the successful use of HMI.

How to Control a VFD through HMI and PLC?

This video continues the last programming video of HMI and PLC. The video shows a complete HMI control ATO VFD system, which is logically controlled by PLC in the middle.

HMI and PLC Program Control VFD

This video shows the use of PLC as an intermediate tool for HMI to control the variable frequency drive.
