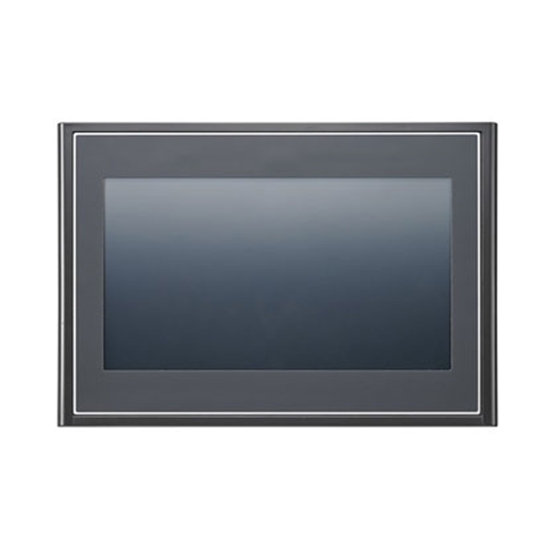

Human machine interface manufacturer direct sales, industrial hmi touch panel with 10" TFT LCD display, 1024 x 600 pixels, equipped with HMI programming software DOPSoft 4.0 and built-in Lua editor, it can be easily programmed, and has alarm / history / user rights functions for efficient management.
Specification:
Model |
ATO-DOP-110WS |
ATO-DOP-110CS |
LCD Module |
Display |
10.1" TFT LCD |
Resolution |
1024 x 600 Pixels |
Back Light |
LED Back Light |
Back Light Brightness |
450 cd/m2 |
300 cd/m2 |
Back Light Life |
30000*1 Hours |
20000*1 Hours |
Display Area |
225.52 x 128.10 mm |
226 x 128.7 mm |
MCU |
ARM Cortex-A8 (800MHz) |
Flash ROM |
256 MB Bytes |
256 Mbytes |
RAM |
512 MB Bytes |
256 Mbytes |
Touch Panel |
Four-wire resistor, over 10,000,000 pressing times |
Buzzer |
Multi-Tone Frequency (2K ~ 4K Hz) / 80dB |
Ethernet Interface |
1 Port*2, 10/100 Mbps auto-sensing |
/ |
Audio Output |
Buzzer |
/ |
Multi-Tone Frequency (2K ~ 4K Hz) / 80dB |
AUX |
/ |
N/A |
USB |
1 USB Slave Ver 2.0 / 1 USB Host Ver 2.0 |
SD |
N/A |
Serial COM Port |
COM1 |
RS-232 (supports hardware flow control) |
COM2 |
RS-232 (supports hardware flow control) / RS-485*2 |
COM3 |
RS-422 / RS-485*2 |
RTC |
Built-in |
Cooling |
Natural air circulation |
Certification |
CE, UL |
Waterproof |
IP65 / NEMA4 / UL Type 4X |
Operation Voltage*3 |
DC +24V (-15% ~ 15%)*2 |
Voltage Endurance |
A599V for 1 minute (between charging DC24 terminal and FG terminals) |
Power Consumption*5 |
Max 11 W*3 |
10.4 W*3 |
Backup Battery |
3V lithium battery CR2032 × 1 |
Backup Battery Life |
Depends on the temperature used and the conditions of usage, usually about 3 years or more at 25° C |
Operating Temperature |
0℃ ~ 50℃ |
Storage Temperature |
-20℃ ~ 60℃ |
Ambient Humidity |
10% ~ 90% RH (0 ~ 40° C), 10% ~ 55% RH (41 ~ 50° C), Pollution Degree 2 |
Vibration |
IEC 61131-2 compliant 5Hz ~ 8.3Hz = Continuous: 3.5mm, 8.3Hz ~ 150Hz = Continuous: 1.0g |
Shock |
IEC 60068-2-27 compliant 15g peak for 11ms duration, X, Y, Z, directions for 6 times |
Dimensions (W) x (H) x (D) |
270 x 180.9 x 47.75mm |
272 x 200 x 61mm |
Mounting Dimension W) x (H) |
255 x 170.5mm |
261.3 x 189.3mm |
Weight |
1.1kg |
1.4kg |
Features
1. ATO HMI Embedded Linux System Open system for flexible and stable program development.
2. New software DOPSoft 4.0 offers more complete functions and a better interface.
3. Compliant with industrial operation environments, CE / UL Certified Compliant with CE and UL standards.
4. Ethernet Communication Connects to master device, or PLC with high-speed Ethernet communication.
5. Communication Isolation COM and Ethernet ports with built-in isolation circuits enhance communication stability. FTP/eMail Supported Simple data transmission and real-time status report.
6. Easy setting to play vivid GIF elements
7. Simple and easy structural programming language to meet various demands.
8. Pressing times >10,000,000 Effective pressing times increased through strict endurance tests.
9. IP65 Rating, the front case protects the HMI from snow, rain, and dust.
10. Diagnostics Function Collects and solves issues remotely, power Isolation, protects the HMI from accidental surge interference,
11. VNC Remote Monitoring Remote control with mobile devices, supports PDF and TXT Reader, PDF and TXT files supported, User-Friendly, intuitive operation interfaces for users.
ATO-DOP-110WS Dimension (Unit: mm)

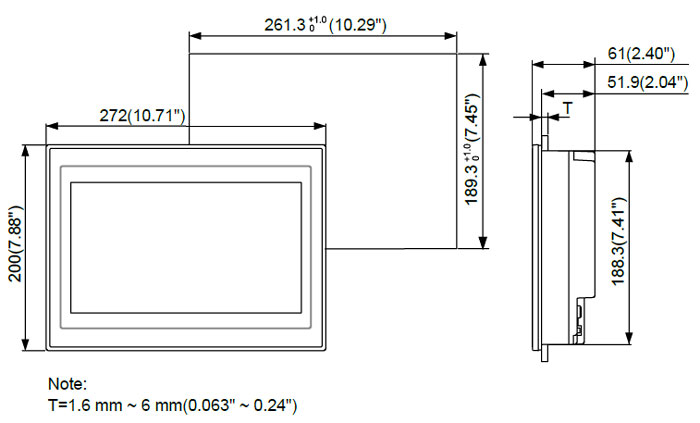

ATO-DOP-110CS Dimension (Unit: mm)
Tips: What is HMI?
HMI Human Machine Interface is used to connect industrial control equipment such as programmable logic controllers (PLCs), frequency converters, DC speed regulators, meters, etc., using the display screen to display and write work through input units (such as touch screen, keyboard, mouse, etc.) The digital device that realizes the information interaction between human and machine by parameter or input operation command is composed of hardware and software.
