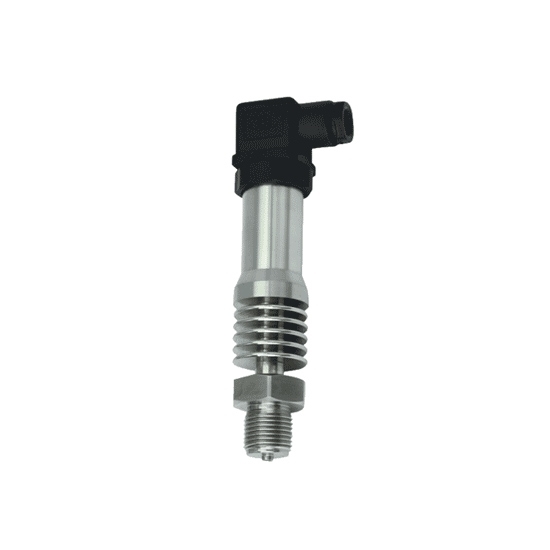

Stainless Steel High Temperature Pressure Transmitter, -20℃~350℃

Wholesale price pressure transmitter uses high-quality high temperature resistant pressure sensors as the signal of the measuring sensitive element. The pressure of the measured medium is transmitted to the sensor through the heat dissipation structure on the transmitter. The sensor probe can work stably for a long time at a high temperature of 350℃. With a 0-60Mpa measurement range and an output signal of 4-20mA, 0-5V, 1-5V, 0-10V, RS485, DC 12V/24V power supply and 5-15 cooling fins, this stainless steel pressure sensor is widely used in the measurement and control of liquid and steam pressure in the high temperature field.

Specifications

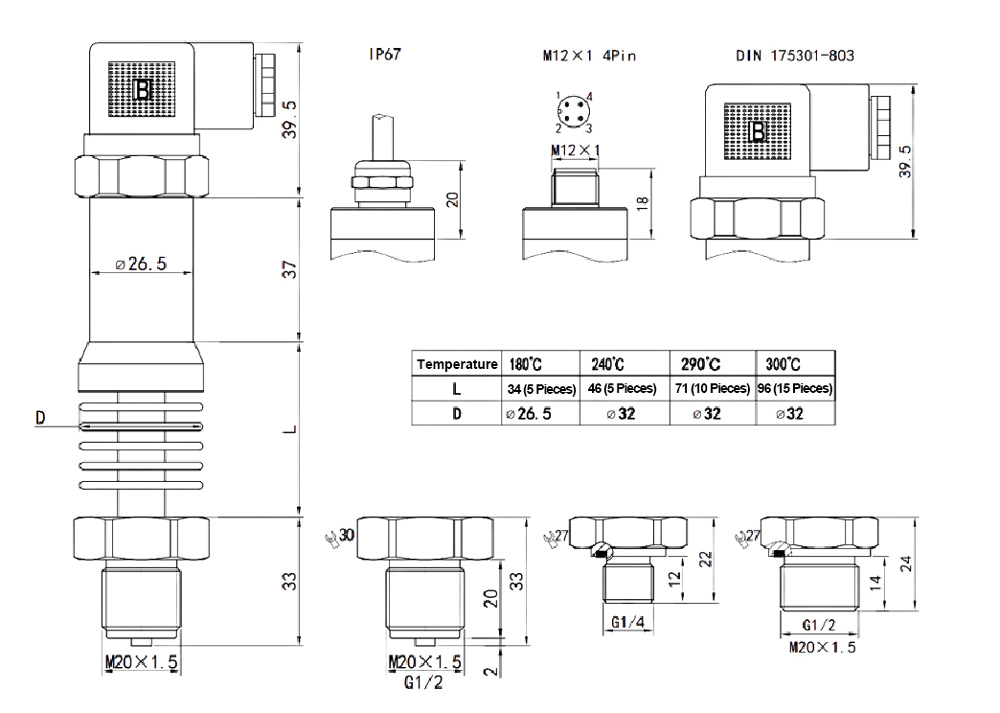

Dimension (Unit: mm)

Pressure Transmitter Electrical Wiring Diagram

Tips: Why choose a stainless steel high temperature pressure sensor?

• High Temperature Resistance: Stainless steel pressure sensors are designed to function reliably in environments with elevated temperatures, sometimes reaching up to 500°C or more, without degrading performance.
• Corrosion Resistance: Stainless steel has excellent resistance to corrosion, making it suitable for harsh environments where moisture, chemicals, or saltwater (in marine settings) could corrode other materials.
• Durability and Longevity: Stainless steel is highly durable and resistant to mechanical wear, contributing to a longer lifespan in challenging conditions.
• Mechanical Strength: The material can withstand high pressures and physical stress, which is crucial in applications like hydraulics, gas pipelines, or combustion engines.
• Wide Range of Applications: Stainless steel high-temperature pressure sensors can be used in oil and gas, chemical processing, automotive, aerospace, and power generation industries where high pressure and high temperatures are involved.
• Minimal Maintenance: Due to its robustness and resistance to harsh conditions, stainless steel sensors typically require less maintenance than other materials' sensors.
