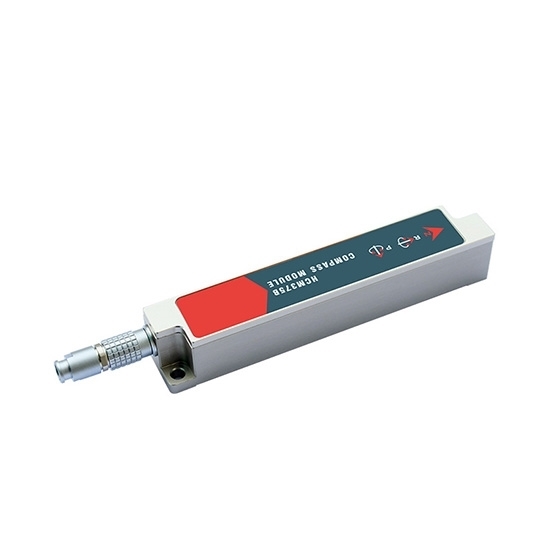

High Accuracy Electronic Compass Sensor, IP67, RS232/RS485/TTL

Write a review

$904.85

High-accuracy electronic compass sensors for sale, providing accurate 3-axis directional measurements. 3D electronic compass sensor has an IP67 protection level and is completely dustproof and waterproof. This electronic compass sensor can be equipped with RS232, RS485, and TTL interfaces, with a resolution of 0.1°, making it suitable for applications such as antenna stabilization, vehicles, system integration, and more.

Output Signal *

SKU: ATO-CPS-HCM375B

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

The electronic compass integrates a three-axis magnetic field sensor and a three-axis acceleration sensor. It uses an industrial microcontroller with high reliability and strong anti-interference ability to calculate heading data in real time, and uses a three-axis accelerometer to compensate for heading angles over a large range.

Feature

Electrical compass sensor adopts hard and soft iron calibration algorithms, combined with high-precision accelerometer for tilt compensation to ensure high accuracy of direction measurement.
It has high resolution and strong noise resistance, and stable temperature offset, ensuring data reliability under various environmental conditions.
The electronic compass has an IP67 waterproof rating, making it perform well in harsh environments such as drilling measurements.
3D electronic compass sensor is compact in design, low in power consumption, and provides high performance and stability, suitable for various application scenarios.

Specification

Model	ATO-HCM375B
Compass heading parameters	Heading accuracy (RMS)	0.5° tilt <10°
		2.0° tilt <60°
		3.0° tilt <80°
	Resolution	0.1°
Compass inclination parameters	Pitch accuracy (RMS)	0.1° <15° (measuring range)
		0.1° <30° (measuring range)
		0.1° <60° (measuring range)
		0.2° <85° (measuring range)
	Pitch tilt range	±85°
	Roll accuracy	0.1° <15° (measuring range)
		0.1° <30° (measuring range)
		0.1° <60° (measuring range)
		0.3° <180° (measuring range)
	Roll tilt range	±180°
	Resolution	0.1°
Calibration	Hard iron calibration	✔
	Soft iron dalibration	✔
	Magnetic field interference calibration method	Plane rotates one circle (two-dimensional calibration)
Physical properties	Size	L111.5×W19.5×H19.5mm
Physical properties	Connectors	5 PIN aviation socket
Interface Characteristics	Startup delay	<50ms
	Output signal	RS232/RS485/TTL (optional)
	Output rate	20Hz/s
Power supply	Supply voltage	(Default) DC +5V
	Current (MAX)	30mA
	Ideal mode	26mA
	Sleep mode	TBD
Environment	Operating range	-40℃~+85℃
	Storage temperature	-40℃~+85℃
	Vibration resistance	100g
	Protection level	IP67
Electromagnetic compatibility	According to EN61000 and GBT17626
MTBF	≥40000 hours/time
Insulation resistance	≥100 megohm
Vibration resistance	10grms, 10~1000Hz
Weight	≤85g

Dimension (mm)

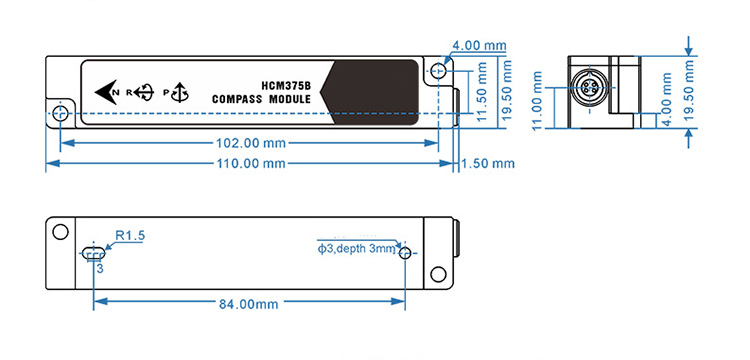

High accuracy electronic compass sensor dimension

Signal Definition

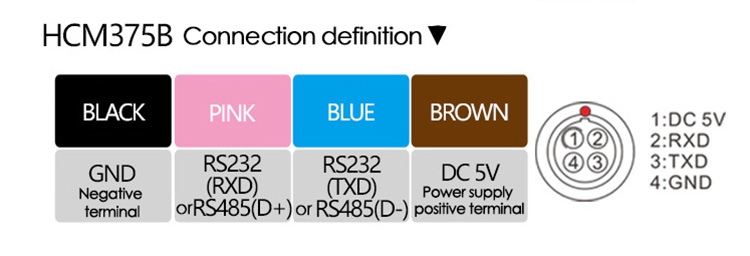

High-accuracy electronic compass sensor wiring definition

Applications

Electronic compass sensor application

Installation direction diagram

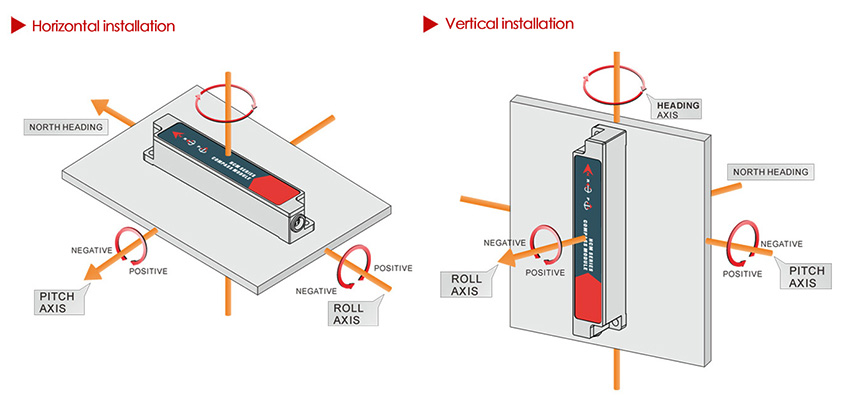

High-accuracy electronic compass sensor installation direction

Tips: Installation instructions for high-accuracy electronic compass sensor

Since high-precision electronic compass relies on geomagnetic principles for azimuth measurement, it is essential to install it in an environment with minimal magnetic interference. Ensure that the sensor is placed as far away as possible from iron objects, magnets, engines, and other magnetic materials. Even in the presence of these magnetic sources, maintain a minimum distance of at least 30cm from the compass, as the interference distance may vary depending on the strength of the magnetic field. To achieve optimal measurement performance, use anti-interference screws during installation.
