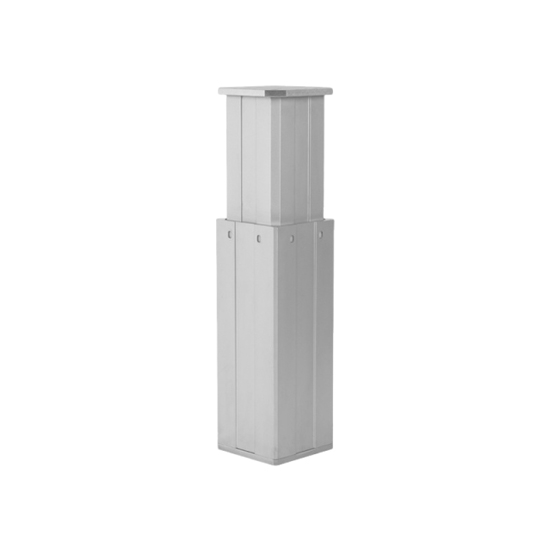

    Heavy Duty Industrial Lifting Column, 12V/ 24V/ 36V/ 48VDC, 2000N

    $434.92
    Reliable heavy duty industrial lifting column for sale at affordable price. Heavy duty lifting column with rated voltage 12V/ 24V/ 36V/ 48V are optional, max. thrust 2000N, rated speed 5000 rpm. The electric lifting column advantages of small power consumption, stable and beautiful style and large lifting range.
    *
    *
    *
    SKU: ATO-LC-HTX2
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Competitive price lifting column with max. pulling force 500N, typical current consumption 3.5A, column size 160*141mm, panel size 216*160mm. The electric industrial lifting column is telescopic and the two positive and negative wires are exchanged and connected to the electric lifting column working system: intermittent operation, the built-in limit switch will automatically stop when it stretches or shrinks to the end.

    Specification

    • Model: ATO-LC-HTX2
    • Rated voltage: 12V/ 24V/ 36V/ 48VDC
    • Rated speed: 5000 rpm
    • Maximum thrust: 2000N
    • Maximum pulling force: 500N
    • Maximum speed at full load: 6 mm/s (load 2000N)
    • Column size: 160*141 mm
    • Panel size: 216*160mm
    • Typical current consumption: 3.5A
    • Stroke: 100mm~800mm
    • Outer tube size (L*W): 80*50mm
    • IP rating: IP54
    • Operating temperature range: -45°C ~ +75°C
    • Full performance operating temperature range: +5°C ~ +45°C
    • Certificate: CE

    Lifting Column Load and Speed Selection

    Rated Load Capacity Self Locking Current (N) Rated Load Current (A) Output Speed at No Load (mm/ s) Output Speed at Full Load (mm/ s)
    Pull (N) Push (N)
    2000 1000 2000 3.2 6.6 5
    1000 1000 2000 3.2 13.1 9.5
    800 800 1000 3.2 26.2 20.1

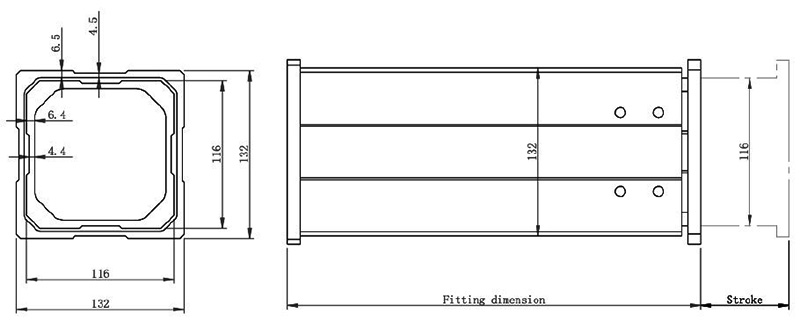

    Dimension (mm)

    Heavy duty industrial lifting column

    • S: Stroke
    • L: Retracted length
    • L=stroke + 180mm (travel exceeds 300 = stroke + 200mm)

    Lifting Column Stroke Selection

    Stroke±2 (mm), Mounting Dimension±2 (mm)
    Stroke 100 150 200 250 300 350 400 450 500
    Retracted length 250 300 350 400 480 530 580 630 680

    Tips: How to Maintain the Heavy Duty Lifting Column?

    Any item will wear out or fail during use, and the same is true of lifting columns, so daily maintenance and regular inspections are the basis for ensuring that equipment can work at peak efficiency. What are the precautions for the daily maintenance of the lifting column?

    1. Check the working status of switches, buttons, indicator lights and buzzers once a month.
    2. For the transmission mechanism and mechanical fixing mechanism of the equipment, conventional screw tightening should be carried out.
    3. The screws on each terminal and each electrical component should also be checked once a month for looseness.
    4. Regularly carry out dust removal and maintenance operations on the surface of the lifting column equipment, electrical control system and hydraulic control system.
    5. During the electrical maintenance process, the relevant power supply should be cut off in time, and the maintenance, repair and other signs should be hung in obvious positions.
    6. Regardless of any abnormal phenomenon of the lifting column, stop work immediately and check the lifting column. After the abnormal situation is resolved, it can be restarted to work again.
