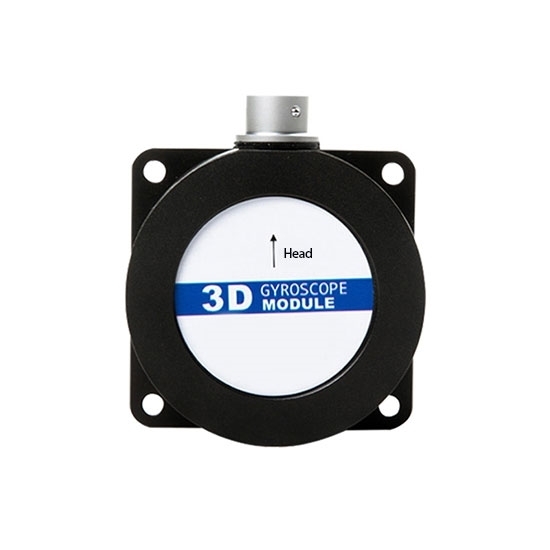

3D Gyroscope Sensor, 1 Axis, ±180°, RS232/RS485/TTL

Write a review

$693.88

The 3D gyro sensor is designed for high-precision angle measurement, supporting single-axis Z-axis ±180° azimuth measurement, with a resolution of 0.1°/sec. Its output frequency supports customized settings (5Hz to 50Hz), and is coupled with a variety of communication interfaces, such as RS232/RS485/TTL/CAN, which ensures seamless connectivity with a wide range of devices.

Output Signal *

SKU: ATO-GS-1-AXIS

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Portable 3D gyroscope sensor with four-point M4 screw mounting design, small size, easy to install, strong adaptability. Operating voltage (9~36V), low power consumption (40mA), both high performance and low energy consumption, widely used in robotics, precision machinery and vehicle control and other fields, to provide reliable and accurate angle and angular velocity measurement solutions.

Specification

Model	ATO-ML7300-1-A
Measuring Axial	Z axis
Angle of Azimuth Measuring Range	±180°
Angular Velocity	Measurement range <450°/S
Acquisition Band Width	>1000Hz
Resolution	0.1°/S
Operating Life	5 years
Non-linear	0.1% of FS
Temperature Compensation	Full temperature range, -45℃~85℃
Temperature Drift	<±0.2°/sec
Power-on Startup Time	3s
Auto Output Rate	5Hz output, 15Hz, 35Hz, 50Hz can be set (RS485 without this function)
Output Signal	RS232/RS485/RS422/TTL/CAN
Average Trouble-Free Operating Time	≥45000 hours/time
Negative Tenderness	20000g, 2ms, 1/2sine
Vibration Resistant	10grms, 10~1000HZ
Waterproof Rating	IP67
Cable	Standard 1.5 meters length, wear-resistant, oil-resistant, wide temperature, shielded cable 5*0.2mm²
Connector	6-pin aviation plug
Tolerance Load	1000
Operating Voltage	9~36V
Operating Current	40mA
Operating Temperature	-40℃~85℃
Storage Temperature	-55℃~125℃
Connector	Lead wire (1.5m) or waterproof aviation socket
Housing Material	Aluminum alloy frosted oxidation
Mounting	Four M4 screws
Dimensions	605929mm
Net Weight	180g

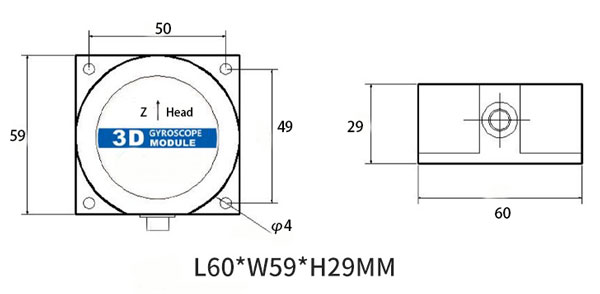

Dimensional Drawing (unit: mm)

1 axis gyroscope sensor size

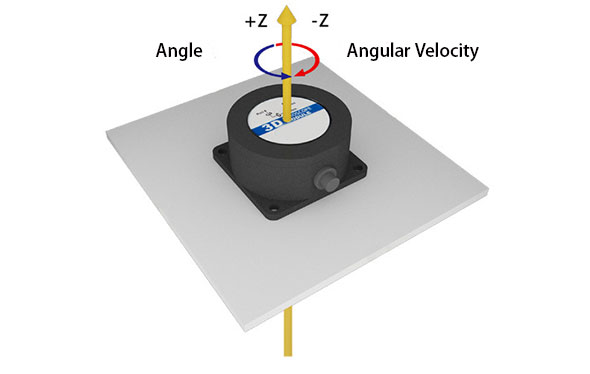

Axis Direction

1 axis gyroscope sensor axis direction

ATO-ML7300 is mainly used for the navigation of robotic vehicles, AVG vehicles, and the attitude control of UAVs. This gyro sensor is not affected by magnetic field interference, so it can measure the yaw angle normally in the magnetic field area, only need to set the desired zero-deviation angle (±180°/0-360°), which can replace the function of electronic compass without being affected by the magnetic field.

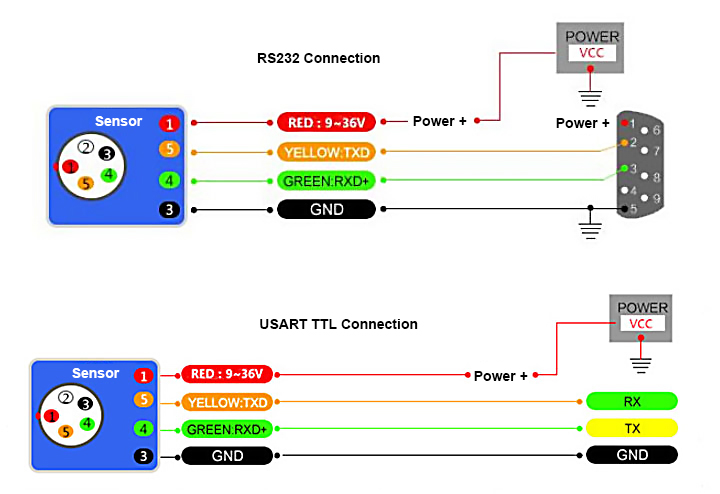

Wiring Drawing

1 axis gyroscope sensor wiring drawing

Applications

1 axis gyroscope sensor application

Tips: How to calibrate and improve the accuracy of a single-axis gyro sensor?

To ensure the accuracy of the sensor data, the calibration steps are very important:

Static Calibration: Place the sensor in a no-motion state and record zero offset data.
Dynamic Calibration: Verify the output value at a known rotation rate and adjust the deviation.

In addition, care should be taken to minimize the effects of ambient noise and temperature drift, for example by adding a shield around the sensor or using temperature compensation algorithms. Choosing a high-quality signal processing chip can also significantly improve measurement accuracy.
