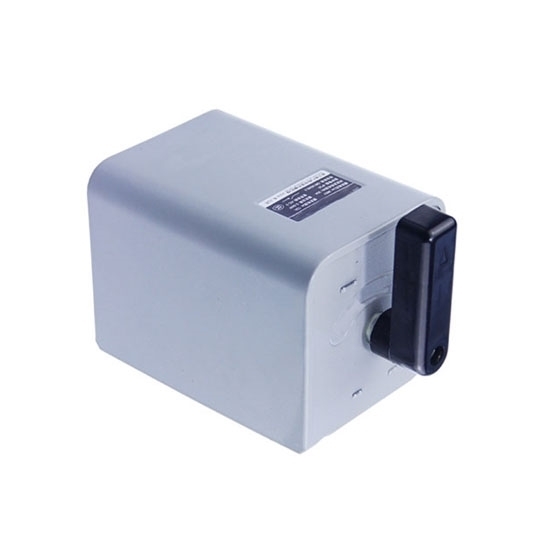

    3 Phase Forward Reverse Switch, 7A/ 12A/ 20A

    5 out of 5 based on 1 reviews | Write a review
    $39.41
    Cost-effective forward reverse switch with working current 7A/ 12A/ 20A, heating current 15A/ 30A/ 60A, three phase, working voltage 220V/ 380VAC. 3 phase reverse forward switch is mainly used in the fields where the equipment needs to rotate in both directions, such as electric vehicles, cranes, elevators, elevators, etc.
    *
    SKU: ATO-FRS-HY2
    This product has a minimum quantity of 5
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    3 phase forward and reverse switch with IP20 protection grade, which can applicate forward, stop, reverse. The reverse forward switch has the advantages of easy installation, high protection level, simple operation and long service life.

    Specification

    Model HY2-15 HY2-30 HY2-60
    Working current 7A 12A 20A
    Heating current 15A 30A 60A
    Working voltage 220V 1.7kW/ 380V 3kW 220V 3.4kW/ 380V 5.5kW 220V 10kW/ 380V 20kW
    Rated voltage 220V/ 380VAC
    Phase 3 phase
    Protection grade IP20
    Application Forward, stop, reverse
    External material Metal
    Color Grey
    Weight 1kg
    Certificate CCC
    Warranty 12 months

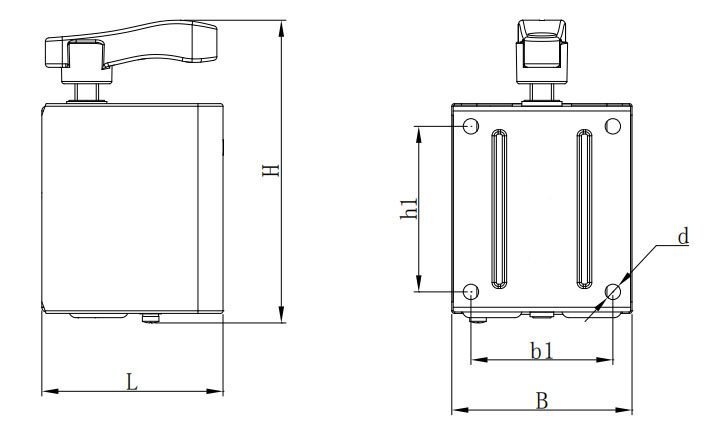

    Dimension

    Dimension of forward and reverse switch

    Model Outer size (mm) Mounting size (mm)
    L B H h1 b1 d
    HY2-15 78 78 130 70 60 φ6.5
    HY2-30/60 90 88 150 80 64 φ7

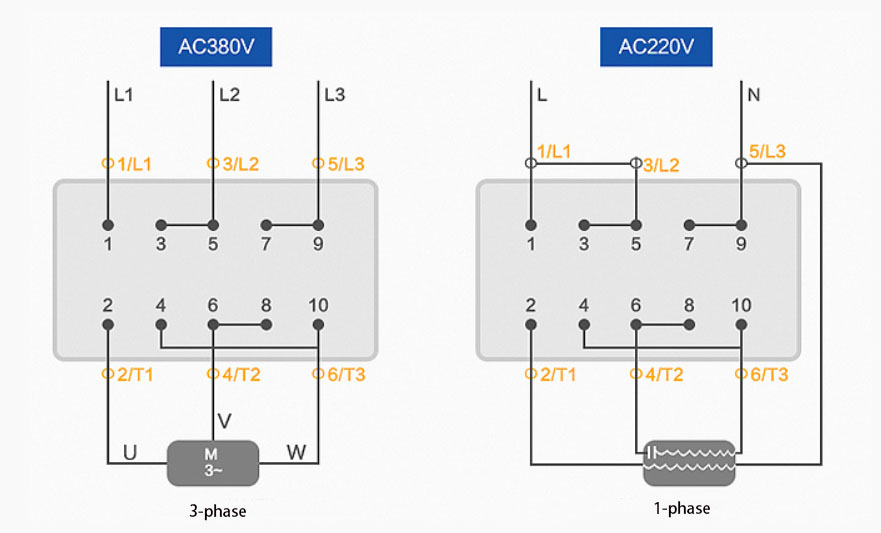

    Wiring diagram

    Wiring diagram of forward and reverse switch

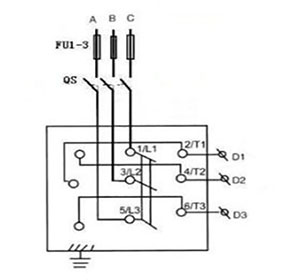

    Tips: Working Principle of Forward and Reverse Switch.

    The three-phase power supply provides a rotating magnetic field to make the three-phase motor rotate. Due to the different connection methods of the three-phase power supply, the magnetic field can rotate clockwise or counterclockwise. To change the direction of rotation, you only need to change any two-phase phase sequence of the motor power supply. Can be done. If the original phase sequence is A, B, C, just change it to A, C, B or C, B, A. The general reverse switch has two rows of six terminals, and the phase modulation is switched through the middle contact to achieve the purpose of phase commutation. Take a three-phase motor reverse switch as an example: set the incoming line ABC three phases, the outgoing line is also ABC, because the ABC three phases are separated by 120 degrees and connected to form a circle, set the ABC on this circle to be clockwise and connect to After the motor, the motor rotates clockwise.
    If you switch BC in the switch, A will not move as usual, so that the outlet of the switch becomes ACB, then the ABC arrangement on the circle becomes counterclockwise. After connecting to the motor, the motor also rotates counterclockwise.

    1. If you pull its handle to the left, the outlet line is A-B-C.
    2. If you pull its handle to the middle, all A-B-C will be disconnected and in the off state.
    3. If you pull its handle to the right, the outgoing line is A-C-B, and the rotation direction of the motor is opposite to when it is pulled to the left.Working principle of forward reverse switch

    Wiring Reverse Switch to Control a 3 Phase Motor Experiment
    The forward and reverse 3 phase forward reverse switch usually refers to the switching device used to control the forward and reverse rotation of the 3 phase power supply. A 3 phase forward reverse switch usually includes a control circuit and a set of contactors or relays for turning on or off the3 phase power. In industrial control, this switch can be used to control the forward and reverse rotation of the motor to achieve reciprocating motion or change direction of the equipment. This video will show you how to use a reverse switch to control the direction of rotation of a 3 phase induction motor, and explain why using this switch is smarter than using a traditional contactor.

    Wiring Reverse Switch to Control a 3 Phase Motor Experiment
    The forward and reverse 3 phase forward reverse switch usually refers to the switching device used to control the forward and reverse rotation of the 3 phase power supply. A 3 phase forward reverse switch usually includes a control circuit and a set of contactors or relays for turning on or off the3 phase power. In industrial control, this switch can be used to control the forward and reverse rotation of the motor to achieve reciprocating motion or change direction of the equipment. This video will show you how to use a reverse switch to control the direction of rotation of a 3 phase induction motor, and explain why using this switch is smarter than using a traditional contactor.
