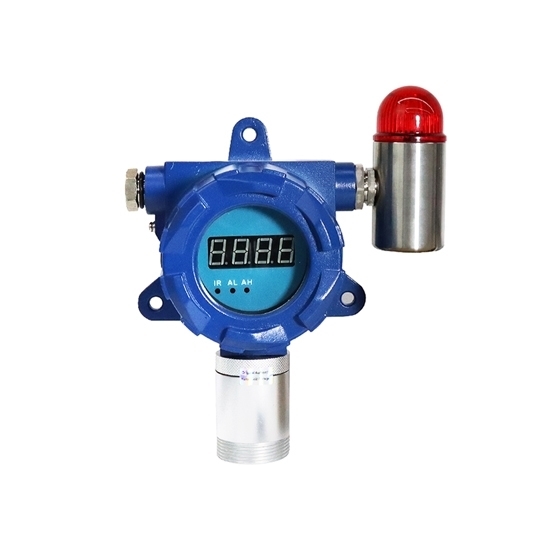

Fixed Nitric Oxide (NO) Gas Detector, 0 to 250/500/1000 ppm

$689.99

The exclusive discounted nitric oxide gas detector provides highly accurate measurements for sale. The built-in alarm system ensures you know the NO concentration in the environment promptly. The measurement range is 0~250ppm, 0~500ppm, and 0~1000ppm to choose from, which is highly reliable. Characteristic, high stability hydrogen sulfide detector, real-time display, output signal 4-20mA & RS485 optional.

Measuring Range *
Signal Output *
Relay Output *
Power Adapter *
Calibration Kit *

SKU: GD300-NO

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

The fixed nitric oxide gas leak detector is used to monitor NO concentration in different environments or pipelines. The measurement range is 0 to 250/500/1000 ppm. The gas monitor detects hydrogen sulfide online 24 hours a day and issues an audible and visual alarm. The infrared remote control is explosion-proof, the working voltage is 12-30V DC, and the output signal is three-wire 4-20mA standard signal output and RS485 signal output.

Features

Adopting high precision sensor for accurate gas leak detection.
Equipped with 3-wire system 4-20mA analog output, relay output, RS485 output (optional).
Compatible with various controlled alarms, PLC, DCS and other control system, and can be remote monitored.
Explosion-proof design, fast, relaible and stable.
Infrared ray controller can remote control the alarm point settings, zero calibration, and address modification.
Two-stage alarm with sound and light, and the alarm point is settable.
With self-calibration function, and three standard keys will be used to realize on-site maintenance.
Can output one or two on-off signals, can drive ventilator, solenoid valve or other external devices.

Specification

Model	GD300-NO
Detection Principle	Electrochemistry
Gas	Nitric Oxide (NO)
Range (Optional)	0 to 20 ppm, 0 to 50 ppm, 0 to 100 ppm, 0 to 250 ppm, 0 to 500 ppm, 0 to 1000 ppm
Resolution	0.01ppm (0-20/50ppm), 0.1ppm (0-100/250ppm), 1ppm (0-500/1000ppm)
Accuracy	≤±3% F.S.
Responce Time	≤10s
Repeatability	≤±1%
Recovery Time	≤10s
Linearity Error	≤±1%
Zero Shift	≤±1% (F.S./year)
Signal Output (Optional) ^Note	4-20mA and RS485 Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional).
Alarms	Sound, light
Display	High light nixie tube display
Installation	Wall-mounted, piping type, flow-type (according to the detected environment)
Connection	G1/2 is the inlet and outlet for power and signal lines Pipe-mounted type: The installation thread size of the instrument is M45*P2.0
Operating Time	24h
Explosion-proof Grade	Ex d llC T6
Protection Grade	IP65
Certification	CE, ATEX
Working Voltage	12-36V DC
Case Material	Die-casting aluminum housing
Operating Temperature	-20℃~50℃
Operating Humidity	0~95%RH (non-condensing)
Dimension	20617990mm
Weight	≤1.6kg
Accessories	Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 2A (Optional USA plug & Europe plug)

Note: To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.

Fixed Gas Detector Dimension (Unit: mm)

***Other Common Gases and Ranges Available for Fixed Gas Detectors

Gas Type	Measure Range	Resolution
Ammonia (NH3)	0-50/100/200/500/1000ppm	0.01ppm/0.1ppm/1ppm
Benzene (C6H6)	0-1/10/50/100/200/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Carbon Dioxide (CO2)	0-1000/2000/5000/9999ppm, 0-1/5/100%VOL	0.1ppm/1ppm/0.001%VOL
Carbon Monoxide (CO)	0-10/20/50/100/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Chlorine (Cl2)	0-10/20/50/100ppm	0.01ppm/0.1ppm
Chlorine Dioxide (ClO2)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Ethylene (C2H4)	0-50/100/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Formaldehyde (CH2O)	0-10/20/50/100ppm	0.01ppm/0.1ppm/1ppm
Hydrocarbons (HC)	0-100%LEL	1%LEL
Hydrogen (H2)	0-1000/2000/5000/9999ppm, 0-1/4%VOL	1ppm/0.001%VOL
Hydrogen Chloride (HCL)	0-10/20/50/100/200ppm	0.01ppm/0.1ppm
Hydrogen Cyanide (HCN)	0-10/20/50/100ppm	0.01ppm/0.1ppm
Hydrogen Sulfide (H2S)	0-20/50/100/200ppm	0.01ppm/0.1ppm
Methane (CH4)	0-50/100%VOL, 0-100%LEL	0.01/0.1%VOL/1%LEL
Nitric Oxide (NO)	0-20/50/100/250/500/1000ppm	0.01ppm/0.1ppm/1ppm
Nitrogen (N2)	0-100%VOL	0.01%VOL
Nitrogen Dioxide (NO2)	0-20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Nitrogen Oxides (NOX)	0-1/5/10/20/50/100/250/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Oxygen (O2)	0-25/30%VOL	0.01%VOL
Ozone (O3)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Phosphine (PH3)	0-10/20/50/100/500/1000/2000/3000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Dioxide (SO2)	0-20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Volatile Organic Compounds (VOC)	0-1/5/10/20/50/100/200/500/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Combustible Gas (EX)	0-100%LEL	1%LEL

Note: Some common gases and the measuring ranges are listed in the above table. For more information, please feel free to contact us.

Details

Tips: Installation of Fixed Hydrogen Sulfide (H2S) Detector

A fixed nitric oxide (NO) gas detector is a device specially designed to monitor the concentration of nitric oxide gas in the environment. The gas leak detectors are widely used in industrial, chemical, gas, environmental protection, and medical fields to ensure that the concentration of nitric oxide is within a safe range and to sound an alarm once the concentration rises.

Working Principle and Composition

Sensor: Fixed NO gas detectors are usually equipped with nitric oxide gas sensors. Common gas sensor types include electrochemical sensors, optical sensors, and chemical sensors. These gas sensors work on different principles, but all detect the presence of nitric oxide molecules.
Data Acquisition: The gas leak detector sensor generates an electrical signal or other sensing signal by detecting the concentration of nitric oxide gas in the surrounding environment.
Data Processing: The generated signals are fed into a built-in microprocessor or control unit for data processing and analysis.
Alarm Systems: Gas monitors are often equipped with gas alarm systems with sound, light, or digital interfaces, and often the ability to transmit information to a monitoring center. When the nitric oxide concentration exceeds the set safety threshold, the gas alarm system is triggered to notify the operator to take necessary measures.

Gas Detector 3-Wire System

In the realm of gas detection systems, the 3-wire configuration offers a robust wiring solution, especially for applications requiring analog output. This video will show you the 3-wire gas detector wiring.

Gas Detector 4-Wire System

The wiring of the 4-wire gas detector supports the RS485 interface Modbus RTU communication mode. This video will show you the 4-wire gas detector wiring.
