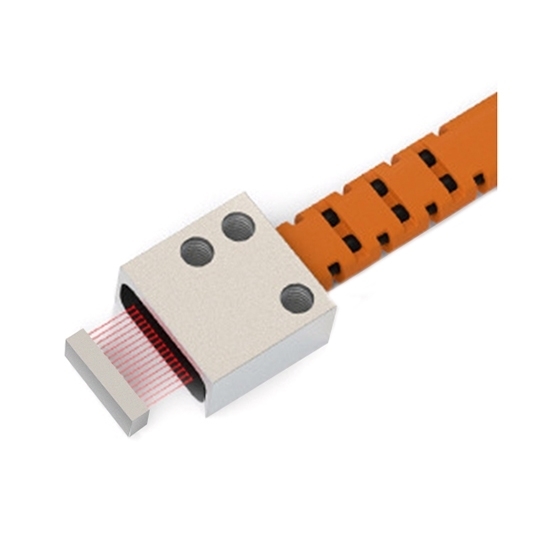

    Rectangular Fiber Optic Sensor, Top Induction

    $141.56
    The industrial grade rectangular fiber optic sensor combines advanced technology to provide efficient and stable inspection performance. Its diffuse reflective design and top induction mode, together with three inspection ranges (10mm, 15mm, 20mm), help you accomplish difficult inspection tasks with ease!
    *
    SKU: ATO-FIBER-RT
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The first choice for accurate detection-rectangular fiber optic sensors, with top induction diffuse reflection technology, durable temperature zone (-55 ℃ ~ 70 ℃), detection distance up to 120mm, extended 2 m fiber optic cable and minimum R25 bending design, the user can be more convenient installation and wiring.

    Specification

    Model LSD-DF10MLD LSD-DF15MLD LSD-DF20MLD
    Detection Range 10mm 15mm 20mm
    Detection Type Diffuse reflective
    Sensing Position Top induction
    Optical Fiber Outer Diameter Ø2.2
    Fiber Core I.D. Ø0.25*8 Ø0.25*8 Ø0.25*16
    Working Temperature -55℃~70℃
    Inspection Distance 120mm
    Min. Bend Radius R25
    Line Length 2m
    Size 10*10mm 15*15mm 15*15mm
    Net Weight 150g

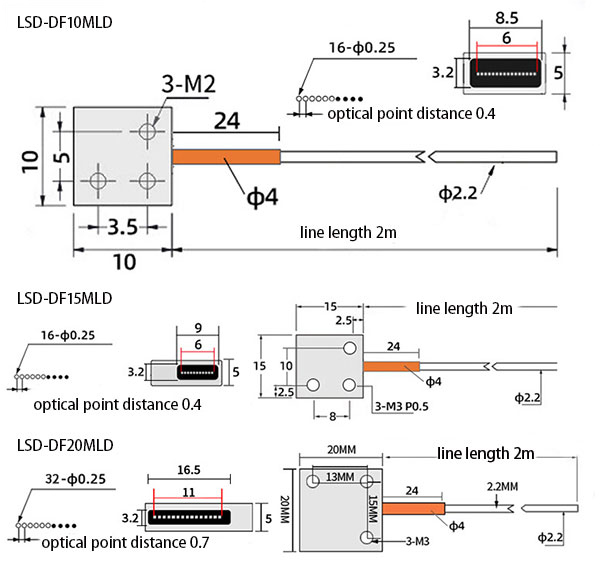

    Dimensional Drawing (unit: mm)

    Fiber optic sensor top induction sizes

    Detection Type

    Fiber optic sensor lateral induction Fiber optic sensor lateral induction type

    Diffuse Reflective: When the switch emits a beam of light, the target is diffusely reflected and the emitter and receiver form a single standard component. The switch state changes when enough combined light returns to the receiver.

    Applications

    Fiber optic sensor lateral induction application

    Tips: What are the advantages of rectangular fiber optic sensors vs. traditional fiber optic sensors?

    The main advantages of rectangular fiber optic sensors are their flexibility and accuracy.

    • Highly Adaptable: The rectangular cross-section design makes it easier to install in tight or complex spaces while providing higher mechanical strength.
    • High Sensitivity: Due to the unique propagation path of the light signal in the rectangular fiber, it responds faster and more accurately to changes in the external environment.
    • Versatility: Multiple parameters, such as temperature, pressure and displacement, can be detected simultaneously, reducing the number and complexity of devices.

    Compared to traditional fiber optic sensors, rectangular fiber optic sensors are better suited to the need for high-precision measurements in complex environments.
