Model |
ATO-IBOX-700 Plus |
CPU |
Core i5 7200U (Dual Core Quad Threads, 3MB L3 Cache, 2.5 GHz, Max Turbo Frequency 3.1 GHz) |
Core i7 7500U (Dual Core Quad Threads, 4MB L3 Cache, 2.7 GHz, Max Turbo Frequency 3.5 GHz) |
Intel Celeron 3865U (Dual Core Dual Threads, 2MB L3 Cache, 1.8 GHz) |
CPU Framework |
KabyLake-U |
Usable System |
Linux, Windows 7, Windows 10 |
RAM |
1*DDR4 1866/2133 SODIMM, Max. 16GB |
BIOS |
AMI EFI BIOS |
Display Chip |
Intel HD Graphics 610/620 |
Display Port |
1*VGA, 1*HDMI PIN (Support synchronous and asynchronous double display) |
Back Panel I/O |
2*USB 3.0 |
2*USB 2.0 |
1*Power Switch |
2*Intel Gigabit LAN |
1*VGA |
1*3P phoenix terminal for power |
1*RST key |
1*Mic |
1*Line Out |
4*COM (Max. 6*COM, COM1 and COM2 can set RS232/422/485) |
Expansion Port |
1*MINI PCIE (WIFI/3G/4G), 1*SIM card slot 1*MINI PCIE (support MSATA) 2*USB 2.0 Built-in Optional Ports (Standard PC does not has this interface): GPIO, PS/2, audio interface, HDMI |
Network |
2*Intel i211-AT 10/100/1000M LAN |
Storage |
1*SATA3.0, 1*MSATA |
Input Voltage |
DC 9V~36V wide voltage Input, support positive pole and negative electrode connect reversely protection |
Other Function |
Electricity boot, time-on, wake-on-LAN, PXE boot, watchdog (0-255 level) |
Working Temperature |
0 ~ +50℃ (Commercial HDD), -20℃ ~ +60℃ (Industrial SSD), Surface air flow |
Working Humidity |
5%~95% non-condensing |
Certification |
CE, CCC, FCC Class A, ROHS |
Color |
Blue + Grey (Any color can be customized) |
Material |
High-quality all aluminum, surface anodic oxidation |

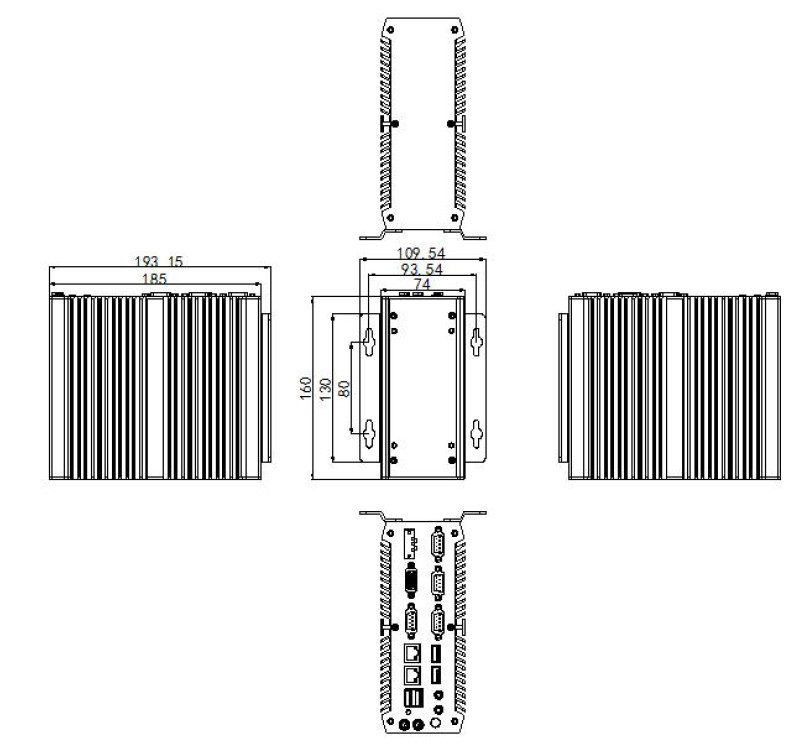

Dimension |
185 * 160 * 74 mm (Not include the brackets) |
Net Weight |
2.2 kg (Not include the brackets) |
