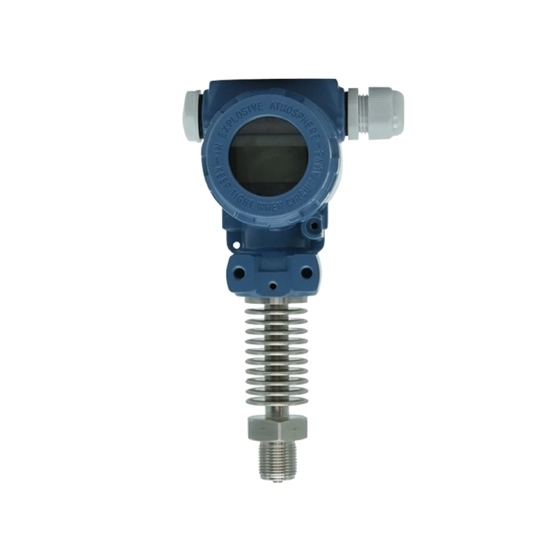

High Temperature Explosion Proof Pressure Sensor, -20℃~350℃

Cost-effective stainless steel explosion-proof pressure sensor for steam/fuel oil. It works at -20℃~350℃ and provides an optional 0.1-0-60MPa measurement range, 4-20mA, 0-5V, 1-5V, 0-10V, RS485 output signal, DC 12V/24V power supply and 5 to 15 cooling fins, suitable for petrochemical, pharmaceutical, hydraulic and pneumatic systems.

Specifications

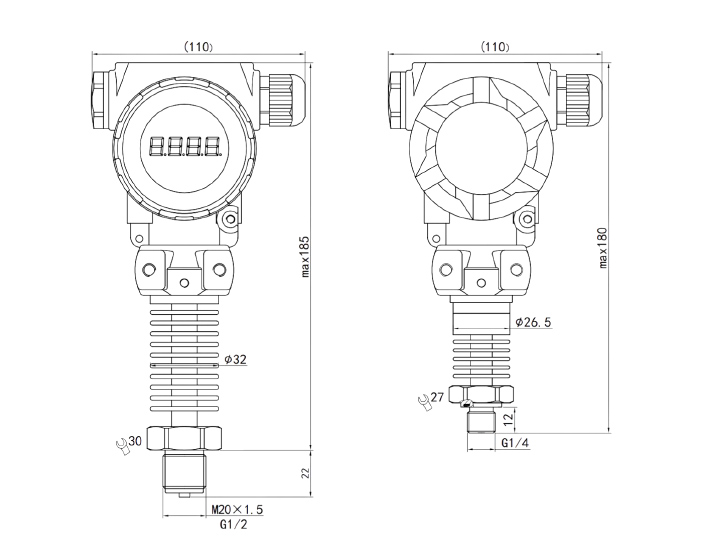

Dimension (Unit: mm)

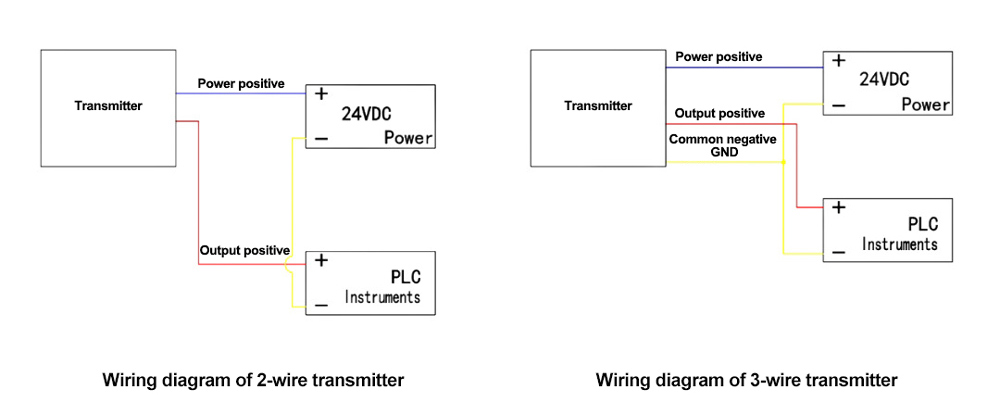

Pressure Transmitter Electrical Wiring Diagram

Tips: Advantages of explosion proof pressure sensors

• Safety: These sensors are enclosed in robust, sealed housings that prevent any sparks or heat from igniting the surrounding environment, ensuring safe operation in explosive atmospheres.
• Compliance: They meet stringent safety standards (like ATEX or IECEx) required for hazardous industries, ensuring regulatory compliance.
• Durability: Explosion-proof sensors are built to withstand harsh conditions, including extreme temperatures, high pressure, and corrosive substances, enhancing their longevity.
• Reliability: Even in dangerous environments, they provide consistent, accurate pressure readings, which are critical for maintaining operational safety and efficiency.
• Versatility: Used in a variety of industries like oil and gas, chemical plants, and mining, they ensure safe monitoring and control in highly volatile conditions.
