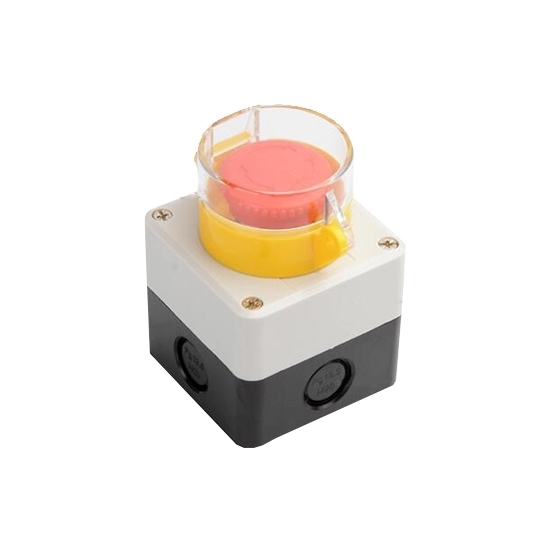

Emergency Push Button Switch, Plastic Type

5 out of 5 based on 1 reviews | Write a review

$40.55

Emergency push button switch with mushroom button component, has variety types of 1NC/ 1NO+1NC/ 2NC+1NO/ 2NO+1NC to choose, works at 220V voltage and 5A current. It can protect the safety of people and equipment, when the machine is in a dangerous state.

Button type *

SKU: ATO-EPB-PT

This product has a minimum quantity of 3

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

The emergency push button control switch has a simple structure of 1NC/ 1NO+1NC/ 2NC+1NO/ 2NO+1NC contact form, sensitive response and long service life. The push button switch box is widely used in electrical automatic control circuits. And mainly used to manually send control signals to control contactors, relays, electromagnetic starters, etc.

Emergency Push Button Switch Specifications:

Model	ATO-KL-B104	ATO-KL-B204	ATO-KL-B304	ATO-KL-B305
Item	1NC emergency push button	1NO+1NC emergency push button	2NO+1NC emergency push button	2NC+1NO emergency push button
Material	ABS plastic
Temperature	-40℃-+80℃
Protection level	IP65
knock off hole	Yes
Cover and base connect	Yes
Color of the button box	Yellow or grey
Max.voltage	220V
Max.current	5A

Structure and Dimension (Unit=mm)

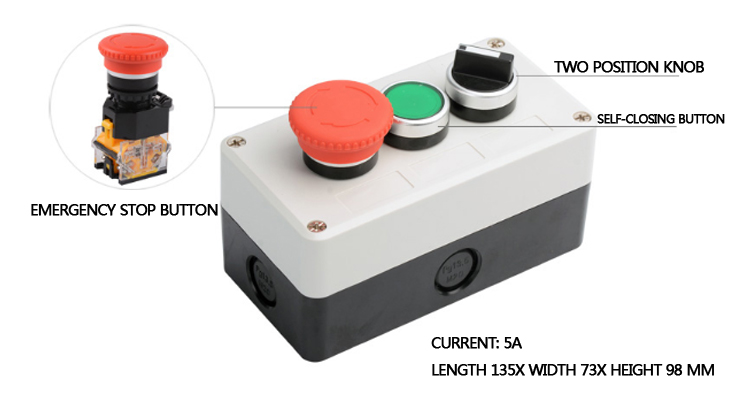

1NO+1NC emergency push button2NC+1NO emergency push button

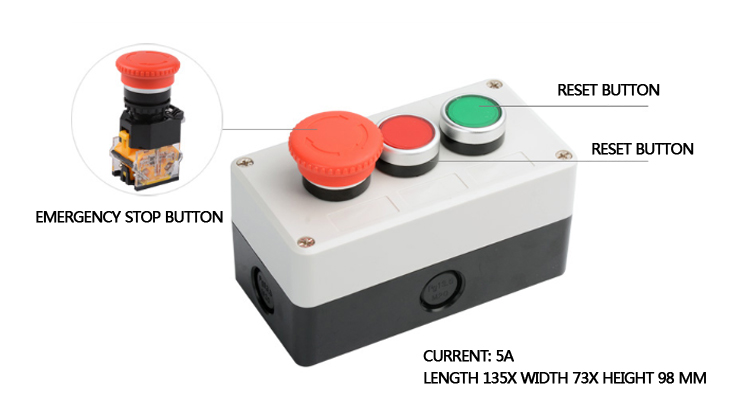

2NO+1NC emergency push button

Tips: selection of NO and NC contact form for Emergency push button Switch

The most basic function of the emergency stop button is to stop in an emergency to avoid mechanical accidents or personal accidents. However, due to the long-term operation of the machine, the line, especially the emergency stop line part, may cause a fault and open circuit. At this time, if the emergency stop button uses a normally open contact, the line fault of the emergency stop part will not be found. If the emergency stop button is used then it will be too late. When using normally closed contacts, when the emergency stop part of the circuit fails, it will at most cause the machine to stop, and the loss will be relatively small. When designing an electrical control system, it is best to use a normally closed contact for the emergency stop button, so that the safety factor is relatively high.

This two-way emergency switch consists a mushroom button and a standard push button, suitable to be used in electrical automatic control circuits with max voltage 220V and max current 5A.

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

In this video, we've walked you through the step-by-step procedure for wiring an AC contactor to establish the latching circuit and we also showed you how to achieve motor control with the established latching circuit.
