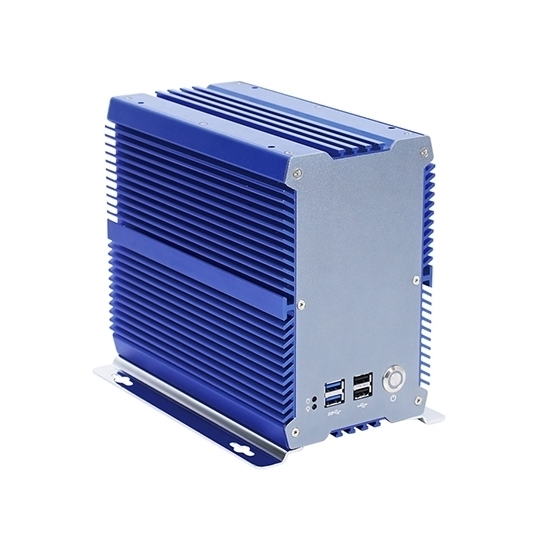

Embedded Fanless Industrial PC, Core i5 i7, Celeron 3865U

5 out of 5 based on 1 reviews | Write a review

$1,232.46

Buy fanless industrial PC at affordable price. Optional CPU Intel Core i5 7200U, Core i7 7500U, Celeron 3865U, dual core dual/quad threads, usable system Linux/Windows 7/Windows 10, RAM DDR4 1866/2133 SODIMM slot, max 16GB, I/O interface 2 Intel 1000M LAN, 4 COM, power supply DC 9~36V. Industrial computer supports embedded mounting, all-aluminum structure.

CPU *
RAM/ Hard Disk Capacity *
Usable System *
Usable System *
Usable System *

SKU: ATO-IPC-i35C3865

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Embedded fanless industrial PC works at 9~36V input voltage. Select CPU Intel Core i5 7200U/ Core i7 7500U/ Celeron 3865U (dual core dual/quad threads), applicable system Linux/Windows 7/Windows 10, interface Intel 1000M LAN*2, COM*4. Industrial grade computer not only for industrial automation, but also medical, logistics transportation, warehouse, electronic education, machine and so on.

Specification

Model	ATO-IBOX-701 Plus
CPU	Intel Core i5 7200U (Dual core quad threads, 3MB third level cache, 2.5GHz, Max turbo 3.1GHz)
	Intel Core i7 7500U (Dual core quad threads, 4MB third level cache, 2.7GHz, Max turbo 3.5GHz)
	Intel Celeron 3865U (Dual core dual threads, 2MB third level cache, 1.8GHz)
Usable System	Linux, Windows 7, Windows 10
RAM	1*DDR4 1866/2133 SODIMM RAM Slot, Max. 16GB
BIOS	AMI EFI BIOS
Display Chip	Integrated Intel HD Graphics 610/620
Display Port	1VGA, 1HDMI Built-in Pin (Support synchronous and asynchronous dual display)
Front I/O Interface	2*USB 3.0
	2*USB 2.0
	2*Indicator light
	1*Power Switch
Rear I/O Interface	2*USB 3.0
	2*Intel 1000M LAN
	1*VGA
	1*3Pin Power supply Phoenix Connector
	1*Clean COMS button
	Standard 4COM (6COM Optional, COM1 and COM2 have RS232/422/485 Optional)
Expansion Port	1MINI PCIE Slot (WIFI/3G/4G Optional, please contact us for configuration), Embedded SIM Slot 1MINI PCIE Slot (Support MSATA) Optional Ports: GPIO, Audio, HDMI, 2*COM (Standard version doesn't include these ports)
Expansion Slot (Choose 1 from 3)	Standard Slot: 2PCI (32bit), Built-in 1USB 2.0 Optional Slot: 1PCIE X4 + 1PCI (32bit), Built-in 1USB 2.0 1PCIE X4 + 1 PCIE X1, Built-in 1*USB 2.0
Network	2*Intel i211-AT 10/100/1000M LAN
Storage	1MSATA slot, Onboard 12.5" HDD
Input Voltage	DC 9V～36V wide voltage Input, support positive pole and negative electrode connect reversely protection
Other Function	Auto power on when there is electricity, timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level)
Working Temperature	0 ~ +50℃ (Commercial HDD), -20℃ ~ +60℃ (Industrial SSD), Surface air flow
Working Humidity	5%~95% non-condensing
Certification	CE, CCC, FCC Class A, ROHS
Color	Blue + Grey (Any color can be customized)
Material	High-quality all aluminum, surface anodic oxidation
Dimension	215 * 185 * 115mm (Not include the brackets)
Net Weight	3.6 kg (Not include the brackets)

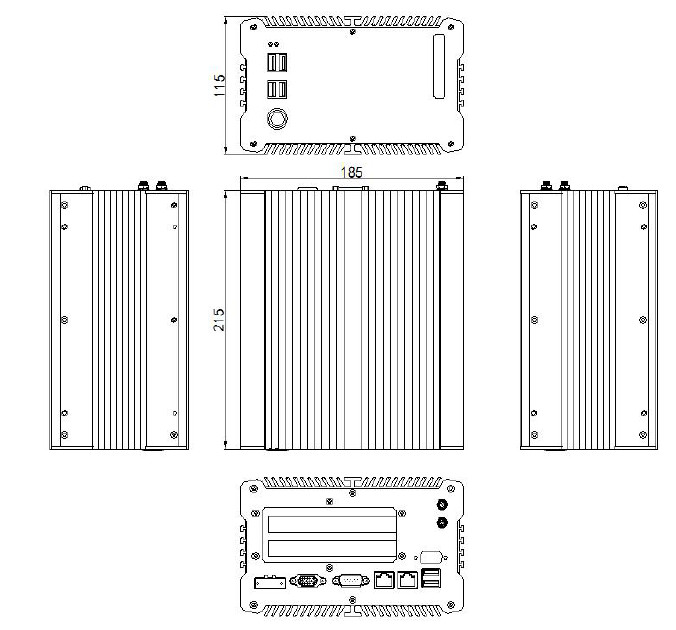

Embedded Fanless Industrial PC Dimensions Diagram (Unit: mm)

Dimensions of Embedded Fanless Industrial PC, Core i5 i7, Celeron 3865U

Accessories List

Name	Quantity	Specification
Power Adapter	1	DC 12V, 5A/ 12V, 10A
Power Cord	1	Any Plug Optional (US, EU, UK etc.)
VESA Bracket	2	Standard
Motherboard CD	1	Neutral

Tips: What are the common faults of fanless industrial PC?

Troubles when repairing fanless industrial PC hard drives

The hard disk is very slow when running programs, and it also crashes sometimes.
When the fanless industrial PC starts, the screen prompts that the hard disk cannot be found.
The hard disk makes a clicking sound and other abnormal sounds, and system cannot be started.
The hard disk circuit board burns and smokes.
Accidental deletion, accidental formatting, accidental clone, accidental partition, virus invasion, etc.

Troubles when repairing fanless industrial PC keyboards

The keys on fanless industrial PC keyboard do not work.
Fanless industrial PC keyboard gets water.
Keyboard of the fanless industrial PC automatically repeats keystrokes.

Trouble when repairing industrial PC battery

The battery of fanless industrial PC is not charged.
When using the battery, fanless industrial PC cannot be turned on.
The fanless industrial PC battery can be charged, but the discharge time is particularly short.
