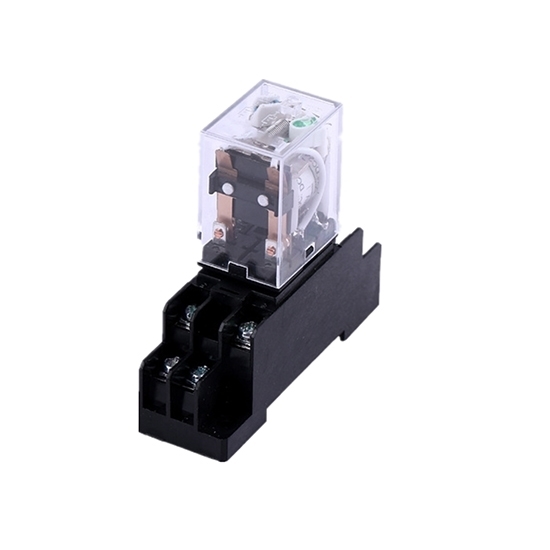

Electromagnetic Relay, DPDT, 12/24/110/220V coils

5 out of 5 based on 4 reviews | Write a review

$52.99

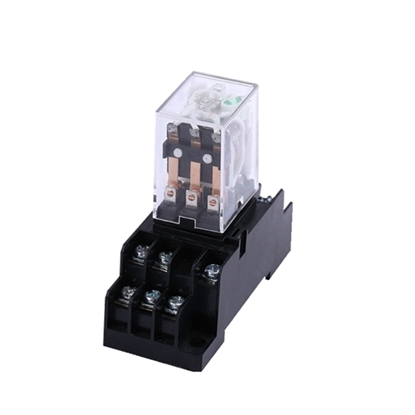

Electromagnetic relay features with 8 pins, DPDT(Double Pole Double Throw), clear and plastic housing. The coil voltages of 12V DC, 24VDC, 110V AC and 220V AC are available with contact load 5A/240V AC 28V DC and widely used in automatic control system.

Coil Voltage(V) *

SKU: ATO-EMR-HH52P

Qty:

30-day Returns

Free Shipping

Delivery date: 2-12 days

Overview
Related Video

8-pin DPDT electromagnetic relay is in small size, easy to drive and has a wide range of applications like electronic equipment, household appliances, office automation etc.

Specification

Basics	Model		ATO-HH52P/MY2NJ (Relay with Socket)
	Dimension (LWH)		27×21×35mm
	Weight		30g
	Ambient Temperature		-25℃~+55℃
	Terminal Type		Plug-in
	Number of Pins		8
Technical Parameters	Contact Form		DPDT (2 Form C)
	Contact Material		Silver alloy
	Contact Capacity (Resistive load)		5A/28V DC, 5A/240V AC
	Coil Power		DC≤0.9W, AC≤1.2VA
	Coil Voltage (Optional)		12V DC, 24VDC, 110V AC, 220V AC
	Pick-up Voltage at 23℃		DC≤75%, AC≤80%
	Drop-out Voltage at 23℃		DC≥10%, AC≥30%
	Contact Resistance @6V DC 1A		≤100MΩ
	Dielectric Strength	Between open contact	≥1000V AC 50Hz/1min
		Between adjacent contact	≥1000V AC 50Hz/1min
		Between coil & contact	≥1500VAC 50Hz/1min
	Leakage current		≤1mA
	Insulation Resistance (MΩ)		≥500MΩ at 500V DC
	Service life	Electrical	10⁵Times (Frequency: On 1 Time/1s, Off 1 Time/1s)
		Mechanical	10⁶Times (Frequency: 300 Time/1min)

Note: Here just shows the contact form DPDT, and another contact forms 2NO (2 Form A) and 2NC (2 Form B) are still available. What's more, please kindly note that What's more, please kindly noted that other coil voltages are also available (DC: 6-220V; AC: 6-380V). If you have any requirments, please don't hesitate to contact us.

Dimensions & Connection Diagram
Details

Tips: Working principle of electromagnetic relay

Electromagnetic replay uses electromagnet to control “on” or “off” status of operating circuit. Thus how an electromagnetic relay works specifically?

Electromagnetic relay consists of electromagnet, armature, spring, movable contact and stationary contact. When applying voltage to both ends of a coil, the coil will be flowed with current and generate electromagnetic effect. The electromagnet will attract armature to the iron core against tension of spring, so as to pull the movable contact of the armature to the stationary contact (normally open contact, or NO). When users cut off power, attraction of the electromagnet will disappear and the armature will restore its position under tension of the spring to release the movable contract from the stationary contact (normally closed contract or NC). The pulling and releasing are used to control opening and closing of the circuit. Normally open and closed contacts respectively refer to the stationary contract when the coil is cut off from power and the stationery contract when the coil is connected to power.

Electromagnetic Relay Introduction

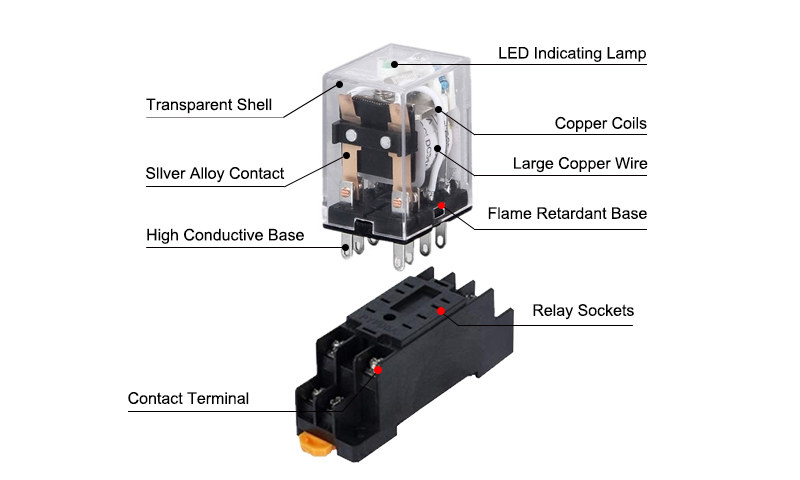

This 8-pin relay features DPDT wiring which you can see clearly through the transparent outer shell. Coil voltage is optional among 12/24/110/220V. Contacts are made from silver alloy for precision operation. It's widely used in auto-control system.

Functions & Operation of HH52PL Electromagnetic Relay
The working principle of electromagnetic relay is to use electromagnetic force to drive the opening and closing of contacts. When energized, the coil produces a magnetic field whose strength increases as the current increases. This magnetic field attracts the iron core, causing it to move, thus pushing the contacts to close. When the power is cut off, the magnetic field disappears and the iron core returns to its original position under the action of the spring force, causing the contacts to open. By controlling the on and off of the current, the contacts can be controlled, thereby controlling the circuit. We used 4 light bulbs (220V), a power supply, a push button switch and relay to show you how it works in a more intuitive way.

How to Use AC Contactor with a Relay at Safe Voltage?

Contactors are widely used in industrial equipment. It is a common application to control 110V/120V/220V/240V AC contactors with 12V/24V/36V DC relays. Users can use this method to control unsafe voltages. This video will show you how to use AC contactor with a relay at safe voltage.

Relay Holding Circuit and PLC Holding Program

Automatic holding circuit is commonly used in various electrical cabinets and is a simple logic circuit. Of course, this simple logic circuit can be built into a large number of PLCs, and it is the basis of PLC logic instructions.

Essential Electronic Components in Electrical Systems

Welcome back to the ATO Channel, you go-to source for electrical and industrial automation insights.

Electromagnetic Switches: Relays VS. Contactors

In this video we will try to clear the confusion many people have between relays and contactors by showing you how to tell the difference based on five criteria: Definition, Capacity, Structure, Contacts and Applications.

3-phase motor reverse connection

In this video, we have 120V/220V/240/380V/415V AC motors with power from 1hp~100hp, widely used to drive various industrial machines such as fans, pumps, machine tools.

Existing reviews of Electromagnetic Relay, DPDT, 12/24/110/220V coils

Solid electromagnetic relay

I bought 2 electromagnetic relays. They do make a buzzing noise when active. I used them to control the master valve in my in ground irrigation system. They work just fine.

From: Jakko | Date: 08/03/2023

Was this review helpful? Yes No (0/0)

High quality electromagnetic relay

Equal in quality to any relays I've used in industry applications. Handy LED indicator. Electromagnetic relay plugs in and out of the socket smoothly and firmly.

From: Daye | Date: 09/12/2022

Was this review helpful? Yes No (0/0)

Compact and easy to wire

This is a DPDT electromagnetic relay with a 12V coil. The din mount makes it easy to install with others. The ease of having the relay socket labeled. I will definitely be buying these again as I make several control panels.

From: Farrah | Date: 27/10/2022

Was this review helpful? Yes No (0/0)

When the relay and its lights are on for a while, will unit get too warm?

I'm a little worried about when the relay and its lights are on for a while, is the unit suppose to get fairly warm? Cause the one I bought from elsewhere gets too warm.

From: Albert | Date: 12/04/2022

Was this review helpful? Yes No (0/0)

Load more reviews...

Write your review for Electromagnetic Relay, DPDT, 12/24/110/220V coils

Only registered users can write reviews

Review title:

Review text:

Rating:

Bad
Excellent

Customers who bought this item also bought

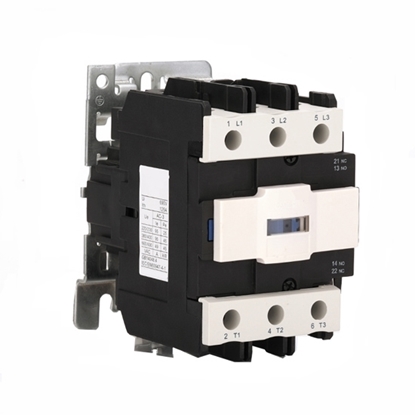

9 Amps 3 Pole AC contactor 24V/110V/220V Coil

$48.90

SKU: ATO-ACCON-009

9 amps 3 pole AC contactor, available with 24V, 110V, 220V coil voltage. It mainly applies to the circuit of AC 50Hz/60Hz, and rated insulation voltage 660V. The rated current is 9A when used at 380V and 7A at 660V, for long distance breaking circuit and frequently starting or control the motor. This bypass contactor frequently start and control AC electromotor.

Quick View

Safety Light Curtain

$319.23

SKU: ATO-SLC-QC

Safety light curtain with short response time, anti-interference ability, superior shockproof performance, long protection length, strong universality, easy to install and debug, certificates of TUV/ CE/ RoHs.

Quick View

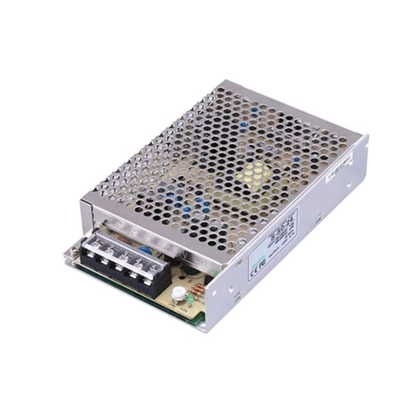

12V DC 4.2A 50W Switching Power Supply

$54.15

SKU: ATO-SMPS-50-12

Cheap yet quality 12V DC switching power supply with universal AC input, works at 4.2A rated current and 50W rated power with short circuit and overload protection, best SMPS power supply for office devices, household appliance and industrial equipment.

Quick View

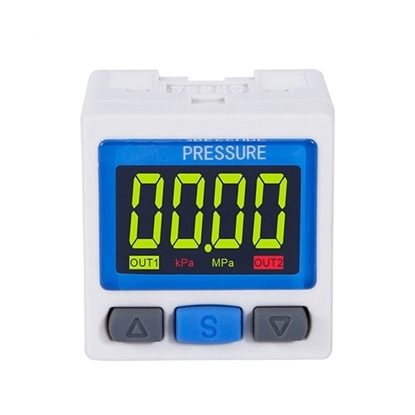

High Precision Digital Pressure Switch, Rc1/ 8
