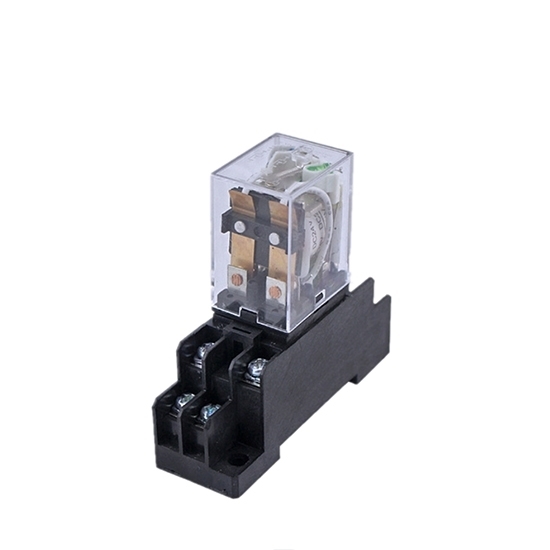

Electromagnetic Relay, 8-pin DPDT, 12V/24V/110V/220V

5 out of 5 based on 3 reviews | Write a review

$53.77

Available for 12V/24V DC, 110V/220V AC coil voltage, electromagnetic relay features DPDT contact configuration, 8 pins with plug-in terminals, contact load 10A/240V AC 28V DC. Favorable price and high quality.

Coil Voltage(V) *

SKU: ATO-EMR-13F2Z

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

8-pin DPDT electromagnetic relay is general purpose in compact size with low price and high quality, and has a wide range of applications such as remote control, electronic equipment, communication equipment, automatic control system and tools and so on.

Specification

Basics	Model		ATO-JQX-13F-2Z (Relay with Socket)
	Dimension (LWH)		27×21×35mm
	Weight		40g
	Ambient Temperature		-25℃~+55℃
	Terminal Type		Plug in
	Number of Pins		8
Technical Parameters	Contact Form		DPDT
	Contact Material		Silver alloy
	Contact Capacity (Resistive load)		10A/240V AC 28V DC
	Coil Power		DC≤0.9W, AC≤1.2VA
	Coil Voltage		Optional: 12V DC, 24V DC, 12V AC, 24V AC, 36V AC, 110V AC, 220V AC
	Pick-up Voltage at 23℃		DC≤75%, AC≤80%
	Drop-out Voltage at 23℃		DC≥10%, AC≥30%
	Contact Resistance @6V DC 1A		≤100MΩ
	Dielectric Strength	Between open contact	≥1200V AC 50Hz/1min
		Between adjacent contact	≥1500V AC 50Hz/1min
		Between coil & contact	≥1500VAC 50Hz/1min
	Leakage current		≤1mA
	Insulation Resistance (MΩ)		≥500MΩ at 500V DC
	Service life	Electrical	10⁵ Times (Frequency: On 1 Time/1s, Off 1 Time/1s)
		Mechanical	10⁶Times (Frequency: 300 Time/1min)

Note: Here just shows the contact form DPDT, and another contact forms 2NO and 2NC are still available. What's more, please kindly note that other coil voltages are also available(DC: 6-220V; AC: 6-380V). If you have any requirments, please don't hesitate to contact us.

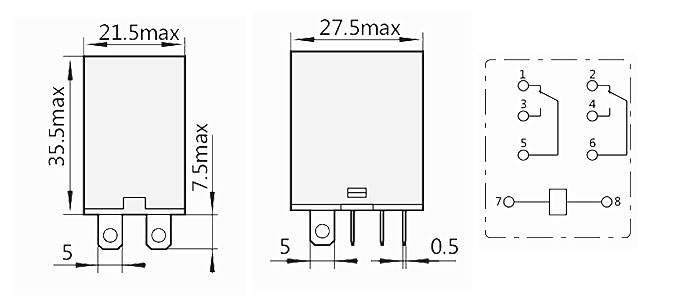

Dimensions & Connection Diagram

Details

Tips: How to test an electromagnetic relay?

Test of coil resistance: use multimeter to measure resistance of relay coil to judge whether the coil is bothered with open circuit. Resistance of the relay coil is closely related to its working voltage and working current. Working voltage and working current of the coil can be calculated according to its resistance.
Test of contact resistance: turn the multimeter to its resistance mode and use it to measure resistance of normally closed contact and movable contact. Their resistance is supposed to be 0. If resistance appears unstable or bigger than the value, that means the contract is bothered with poor contact. If the resistance of the normally open contact and movable contact appears infinite, the condition shall be judged as contact adhesion. By this way, users can distinguish which one is normally closed contact, which one is normally open contact and whether the relay is in good condition (especially for used relay).

Contactors are widely used in industrial equipment. It is a common application to control 110V/120V/220V/240V AC contactors with 12V/24V/36V DC relays. Users can use this method to control unsafe voltages. This video will show you how to use AC contactor with a relay at safe voltage.

Electromagnetic Relay Applications

Electromagnetic relays are key components in electrical engineering and play an important role in various applications. In this video, we will look at why electromagnetic relays are important in our lives.

Essential Electronic Components in Electrical Systems

Welcome back to the ATO Channel, you go-to source for electrical and industrial automation insights.

Electromagnetic Switches: Relays VS. Contactors

In this video we will try to clear the confusion many people have between relays and contactors by showing you how to tell the difference based on five criteria: Definition, Capacity, Structure, Contacts and Applications.

Relays vs Circuit Breakers: What’s the Difference

In this video, we've described the difference between a relay and a circuit breaker as well as explaining their basic working and operation by means of animation. If you find this video helpful, please LIKE it and SHARE with your friends. Don't forget to check out the purchase links above if any featured items're of your interest.

3-phase motor reverse connection

In this video, we have 120V/220V/240/380V/415V AC motors with power from 1hp~100hp, widely used to drive various industrial machines such as fans, pumps, machine tools.

Existing reviews of Electromagnetic Relay, 8-pin DPDT, 12V/24V/110V/220V

About polarity

When connecting to the coil at 7 and 8 does polarity matter when connected or no? I’m guessing not since current in either direction will energize the coil either way but not sure if there is a diode for protection in place these connections. Thank you.

From: Raoul | Date: 09/10/2024

Was this review helpful? Yes No (0/0)

ATO Responded

The 24VDC coil of the relay has positive and negative polarity, pin 7 is 0V, and pin 8 is +24VDC.

For my water conditioning system

I have a water conditioning system in my unheated garage. This electromagnetic relay in conjunction with a old style thermostat and incandescent light keep the enclosure above 40 DegF. I will order more.

From: Harless | Date: 15/12/2022

Was this review helpful? Yes No (0/0)

Perfect 8-pin electromagnetic relay

I was building a custom sound system in my project car requiring the placement of the amp and crossovers in an accessible location. So I incorporated this 8 pin electromagnetic relay to connect the fans to the amp power source when the radio was on. And the system works perfectly.

From: Dezumar | Date: 26/10/2022

Was this review helpful? Yes No (0/0)

Write your review for Electromagnetic Relay, 8-pin DPDT, 12V/24V/110V/220V

Only registered users can write reviews

Review title:

Review text:

Rating:

Bad
Excellent

Customers who bought this item also bought

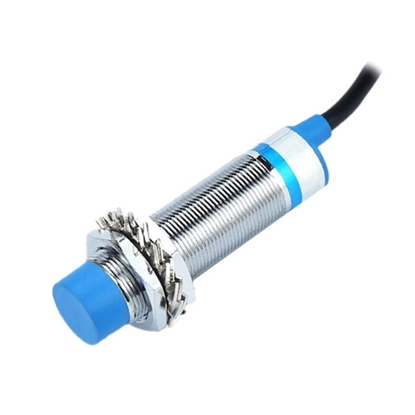

Proximity Sensor, Inductive, M18, 3 Wire, 120V

$39.45

SKU: ATO-PROS-I18

M18 inductive proximity sensor can detect a variety of metals, small size, long life, cheap price, unshielded type installation, anti-interference ability, 8mm detection distance, supply voltage AC 120V, manufacturer direct sale.

Quick View

Electromagnetic Relay, 8-pin DPDT, 12V/24V/110V/220V

Electromagnetic Relay, 8-pin DPDT, 12V/24V/110V/220V coil

Electromagnetic Relay, DPDT, 12/24/110/220V coils

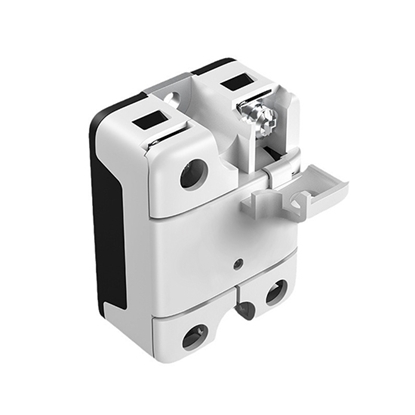

Solid state relay SSR-15DA, 15A 3-32V DC to AC
