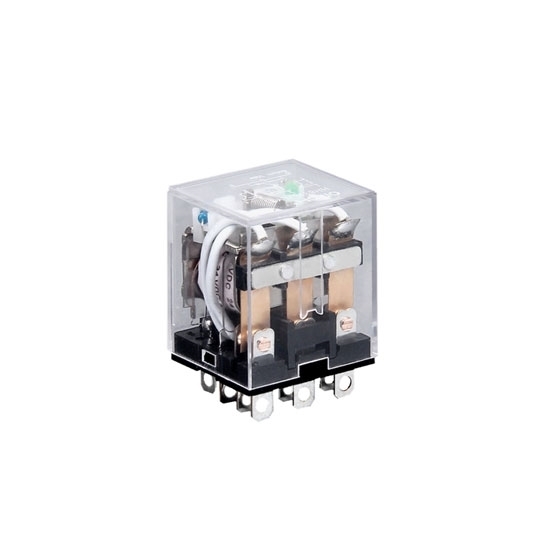

    Electromagnetic Relay, 11-pin 3PDT, 12V/24V/110V/220V

    5 out of 5 based on 1 reviews | Write a review
    $53.77
    Low cost and high quality electromagnetic relay, 11-pin 3PDT, plug-in terminals, silver alloy contacts, and contact load 10A/240V AC 28V DC, common coil voltages of 12VDC / 24VDC / 110VAC / 220V AC for your choice.
    *
    SKU: ATO-EMR-13F3Z
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Compact-size electromagnetic relay is used for general purpose with 11 pins, 3PDT contct type, and widely applied in electronic equipment, communication equipment, automatic control system, instrument and meters, etc.

    Specification

    Basics Model ATO-JZX-22F(D)/3Z (Relay with Socket)
    Dimension (L*W*H) 27.5×31×35mm
    Weight 50g
    Ambient Temperature -25℃~+55℃
    Terminal Type Plug in
    Number of Pins 11
    Technical Parameters Contact Form 3PDT
    Contact Material Silver alloy
    Contact Capacity (Resistive load) 10A/240V AC 28V DC
    Coil Power DC≤0.9W, AC≤1.2VA
    Coil Voltage Optional: 12V DC, 24V DC, 12V AC, 24V AC, 36V AC, 110V AC, 220V AC
    Pick-up Voltage at 23℃ DC≤75%, AC≤80%
    Drop-out Voltage at 23℃ DC≥10%, AC≥30%
    Contact Resistance @6V DC 1A ≤100MΩ
    Dielectric Strength Between open contact ≥1200V AC 50Hz/1min
    Between adjacent contact ≥1500V AC 50Hz/1min
    Between coil & contact ≥1500VAC 50Hz/1min
    Leakage current ≤1mA
    Insulation Resistance (MΩ) ≥500MΩ at 500V DC
    Service life Electrical 105 Times (Frequency: On 1 Time/1s, Off 1 Time/1s)
    Mechanical 106 Times (Frequency: 300 Time/1min)

    Note: Here just shows the contact form 3PDT, and another contact forms 3NO and 3NC are still available. What's more, please kindly note that other coil voltages are also available(DC: 6-220V; AC: 6-380V). If you have any requirments, please don't hesitate to contact us.

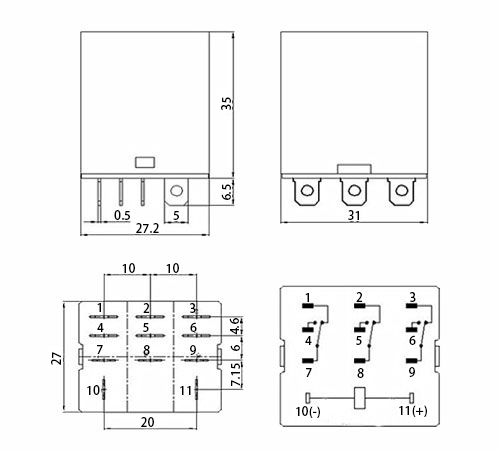

    Dimensions & Connection Diagram
    JQX 13F 3Z electromangetic relay dimensions connecting diagramDetails

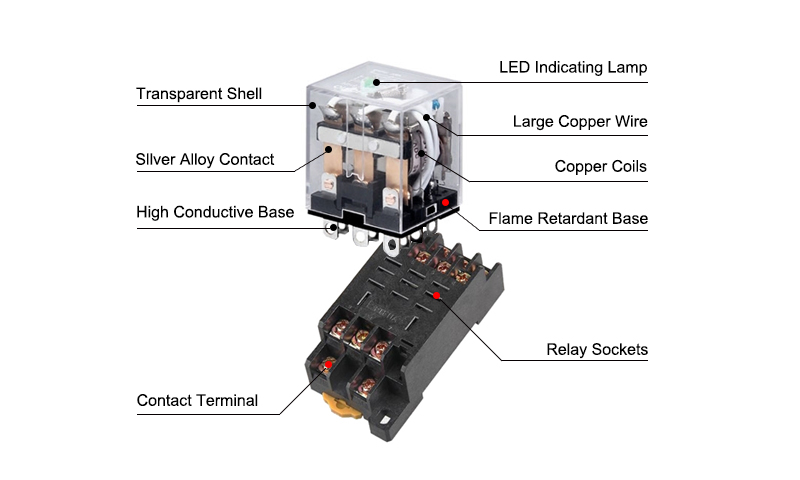

    Electromagnetic Relay, 11-pin 3PDT Details

    Tips: How to select a relay?

    1. Working environment
      Working environment mainly refers to temperature (maximum and minimum temperature), humidity (maximum relative humidity in -40℃), low pressure (it is unnecessary for places with an elevation of lower than 1,000 meters to consider the factor), oscillation and impact. In addition, service environment involves requirements for packaging mode, installation mode, shape, dimensions, and insulation performance etc.
    2. Input signals
      Select electromagnetic, temperature, time or photoelectric relays by judging whether input signals are electricity, temperature, time or photo signals.
    3. Input parameters
      Input parameters refer to working voltage (or current) of the coil. Pull-in voltage (or current) refers to the parameter used by relay producers to control sensitivity of relays.
    4. Load conditions
      Configurations and groups of contacts shall be determined according to actual conditions of controlled circuit. It is very important to determine parameters according to load capacity and load nature (resistive, inductive, capacitive, light load and motor load).
    Existing reviews of Electromagnetic Relay, 11-pin 3PDT, 12V/24V/110V/220V
    The quality is decent for this price
    I bought 5 relays, 3 of which are 24V and the other two are 110V. They do the job I was looking for. I use them to reverse polarity so an actuator will extend or retract depending on if the coil is powered or not by a photocell. Good build quality, would buy again.
    From: David | Date: 07/08/2018
    Was this review helpful? Yes No (1/0)
