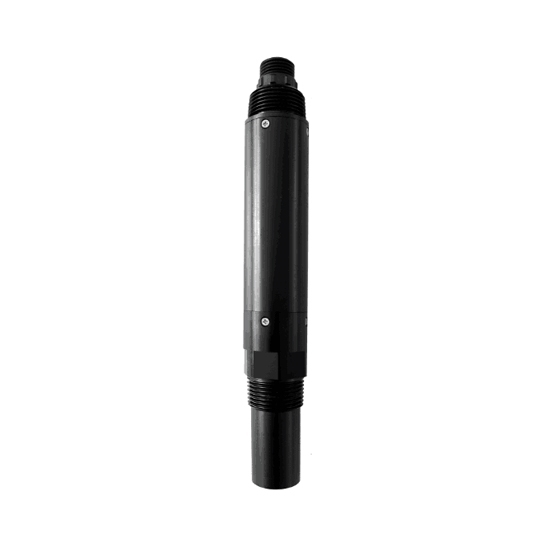

EC (Electrical Conductivity) Sensor for Water Quality, 0~200 μS/cm

$555.89

Electrical conductivity sensor for water quality uses the electrode method, measuring 0~200 μS/cm (TDS 0~100 mg/L) with high accuracy (±1.5%, ±0.3°C) and a resolution of 0.1. It has a fast response time (<10s), two-point calibration, and automatic temperature compensation (Pt1000). With RS485 (Modbus RTU) output, durable POM construction, and submersion installation (3/4 NPT). Ideal for water quality monitoring such as drinking water systems, industrial water treatment, environmental monitoring, and agricultural irrigation.

Measuring Range *

SKU: ATO-WQS-EC

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

The conductivity sensor measures 0~200 μS/cm (TDS 0~100 mg/L) with high accuracy (±1.5%) and fast response (<10s). It features automatic temperature compensation, RS485 output, and durable construction, ideal for water treatment, monitoring, and irrigation.

Specification

Model	ATO-DDM-206
Principle	Electrode Method
Range & Resolution	0~20 μS/cm (TDS 0~10 mg/L), Resolution: 0.01
Range & Resolution	0~200 μS/cm (TDS 0~100 mg/L), Resolution: 0.1
Accuracy	±1.5%; ±0.3°C
Response Time (T90)	<10s
Calibration Method	Two-point calibration
Temperature Compensation	Automatic temperature compensation (Pt1000)
Output Mode	RS485 (Modbus RTU)
Storage Temperature	-5~65°C
Operating Conditions	0~60°C, ≤0.6 MPa
Outer Material	POM
Installation Method	Submersion installation, 3/4 NPT
Power Consumption	0.2 W @12V
Power Supply	12~24 VDC

Feature

Wide Application Range: Ideal for drinking water, groundwater, industrial water, and various water treatment applications.
Simultaneous Output: Measures and outputs both electrical conductivity (EC) and total dissolved solids (TDS) for comprehensive water quality analysis.
Advanced Signal Output: Equipped with RS-485 (Modbus RTU) protocol for seamless integration with PLCs, DCS, industrial control computers, general controllers, or third-party devices like touch screens or recorders.
Flexible Installation: Supports submersion installation with a 3/4 NPT threaded connection, making it suitable for immersion in open water systems or pipe installations.
High Durability: Features IP68 protection for reliable operation in challenging environments, ensuring resistance to dust and water immersion.
High Measurement Precision: Offers a range of 0~200 μS/cm with high accuracy and resolution for precise water quality monitoring.
Automatic Temperature Compensation: Built-in Pt1000 temperature compensation ensures accurate readings across varying environmental conditions.

Dimension (Unit: mm)

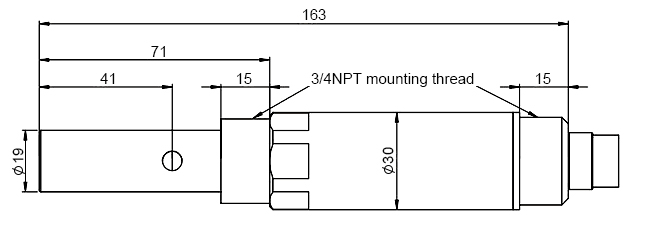

0~20 μS/cm

EC sensor 0-20μscm size

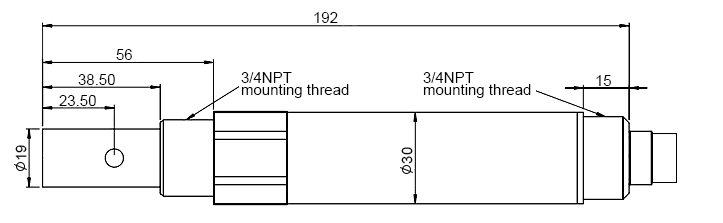

0~200 μS/cm

EC sensor 0-200μscm size

Installation Method

Ammonium nitrogen sensor installation method

Note: Install the test at least 2 cm from the bottom and side walls of the container. The sensor should not be installed upside down or horizontally, but at least at an angle of 15 degrees or more. The interface of sidewall mounting must be beveled at 15 degrees, otherwise it will affect the normal testing and use of the electrodes.

Application

Tips: What makes this sensor environmentally friendly?

The water quality sensor uses non-invasive and chemical-free methods to measure conductivity and TDS, reducing the need for reagents or harmful chemicals. Its durable and long-lasting design minimizes waste, and the low power consumption (0.2W @12V) ensures energy-efficient operation. These features make it an eco-friendly choice for sustainable water quality monitoring.
