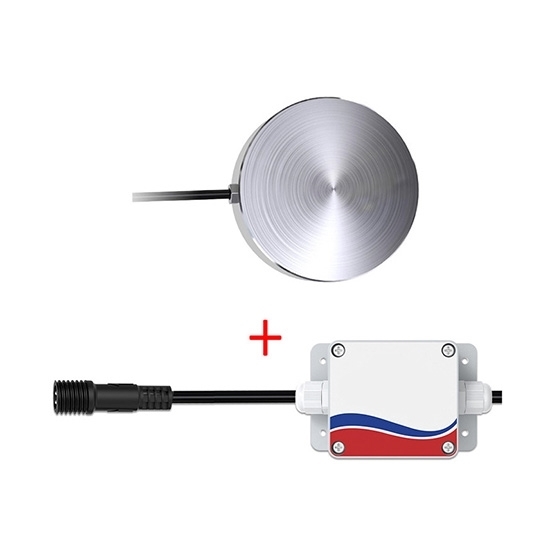

    Earth Pressure Cell with Data Collector, Vibrating Wire

    $201.54
    Vibrating wire earth pressure cell is equipped with a high-precision vibration wire data collector to monitor the pressure on the rock and soil during the construction process. The optional ranges are 0-0.2 MPa, 0-0.4 MPa, 0-0.6 MPa, 0-0.8 MPa, and 0-1.0 MPa, covering a wide range of pressure measurement needs. Temperature sensors can be added to monitor real-time changes in environmental temperature.
    *
    SKU: ATO-LC-RSZX
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Earth pressure cell is mainly used to monitor the changes in rock and soil pressure in the surrounding strata caused by underground engineering construction such as excavation of foundation pits or tunnels, shield tunneling, pile driving, etc. The measurement range covers 0-0.2 MPa to 0-1.0 MPa.

    Features

    • Earth pressure cell offers excellent resolution and resilience against interference.
    • The pressure cell reacts sensitively to concentrated loads, providing reliable and stable measurements.
    • The earth pressure sensor supports the addition of a temperature detection feature.
    • When paired with a vibrating wire sensor collector, it enables real-time monitoring at the backend.
    • The data collector is equipped with a high-resolution frequency measurement component, compatible with most vibrating wire sensors on the market.
    • The collector supports internal conversion of frequency to corresponding physical quantities, reducing the need for later data processing.
    • Vibrating wire collector can measure temperature and is compatible with thermistors or DS18B20.
    • After connecting to the vibrating wire sensor, it allows users to view sensor frequency lines and thermistor resistance, facilitating fault troubleshooting from the backend without on-site checks in case of data anomalies.
    • The excitation voltage limit can be set, and built-in protection measures prevent sensor damage from excessive excitation voltage.
    • The collector outputs RS485 signals, allowing communication up to 2000m and supporting secondary development.

    Specification

    Soil Pressure Sensor Model ATO-RS-ZX-ZLJ ATO-RS-ZXT-ZLJ
    Temperature measurement _ -25℃~+60℃
    Comprehensive error ≤2.0%F·S
    Default resolution ≤0.08%F·S
    Line length 2 meters
    Measurement range 0-1.0MPa (optional)
    Data Collector Model ATO-RS-ZXCJ-DYN01
    DC power supply (default) DC10-30V
    Maximum power consumption ≤1.2W
    Working temperature and humidity -40℃~80℃, 0~80%RH (non-condensing)
    Frequency measurement range 400-7000Hz
    Excitation voltage 30-180V
    Frequency error ±0.05Hz (@800Hz, 52%RH, 21.2℃)
    Frequency resolution 0.01Hz
    Data update interval Default 60s, acquisition interval can be set
    Thermistor acquisition range 1-10KΩ
    Temperature resolution 0.1℃
    Default cable length Default 60cm, cable length can be customized as required
    Dimensions 130.8*68*48.8mm
    Output signal RS485 (Modbus protocol)
    Protection level IP65

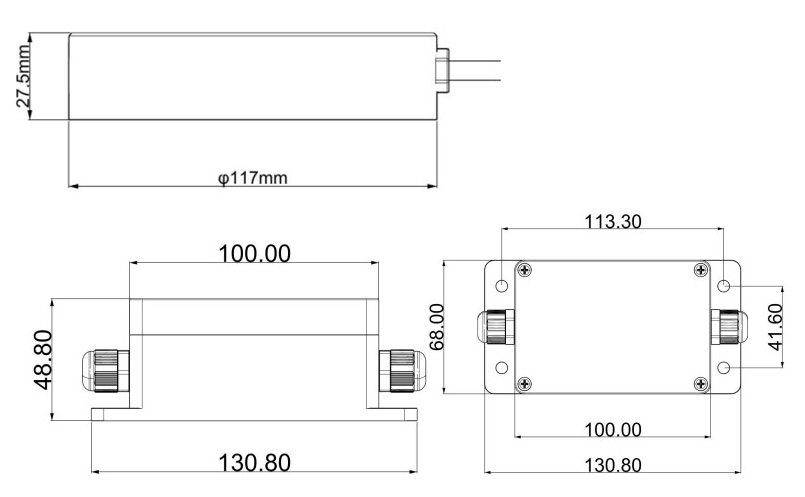

    Dimension (mm)

    Earth pressure cell with data collector dimension

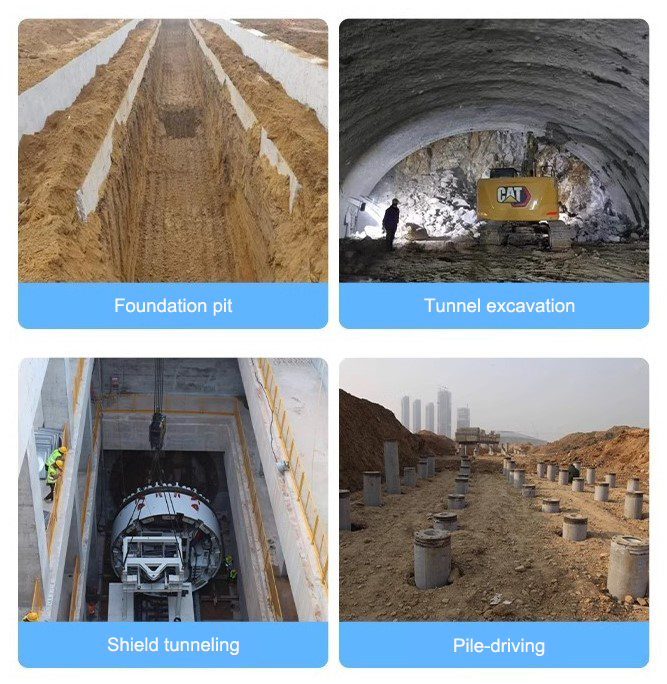

    Applications

    Earth pressure cell with data collector application

    Tips: What is an earth pressure cell?

    An earth pressure cell is a device used to measure the pressure exerted by soil or rock, commonly utilized in civil and geotechnical engineering. It provides real-time data on effective stress in the soil, helping engineers assess the bearing capacity of the ground. Earth pressure cells are essential for monitoring the stability of foundations and surrounding soil during construction and operation, preventing issues such as landslides or settlement. Many units are equipped with data acquisition systems for automated recording and analysis, making them valuable tools in various applications, including underground construction and environmental monitoring.
