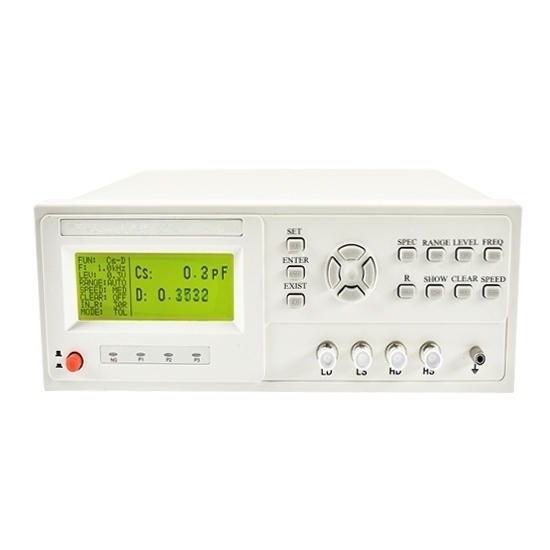

    Digital LCR Meter, 50Hz~100kHz

    5 out of 5 based on 3 reviews | Write a review
    $522.69
    Affordable price LCR meter. Frequency range can select 50Hz~100kHz or 100Hz~10kHz. Measure inductance (L) max. 99.999kH, capacitance (C) max. 99999µF, resistance (R) max. 99.999MΩ. Measurement accuracy up to 0.1%. Fast measurement speed and complete functions, suitable for various components.
    *
    SKU: ATO-LCRM-5010
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Digital LCR meter adopts 192×64 dot-matrix graphic LCD display, 20 typical test frequencies from 50Hz to 100kHz. High measurement stability and accuracy, built-in comparator, 4-level sorting and level counting. Equipped with RS232C interface.

    Specification

    Model ATO-LCRM-2817B ATO-LCRM-2811C
    Test Specifications |Z|, C, L, R, D, Q L-Q, C-D, R-Q, |Z|-Q
    Test Frequency 50/60/80/100
    120/200/400/500
    800/1k/2k/4k/5k
    80k/10k/20k/25k
    40k/50k/100k
    100Hz/120Hz/1kHz/10kHz
    Test Level 0.1V, 0.3V, 1V
    Basic Accuracy 0.1% 0.2%
    Display Range |Z|, R, X: 0.0001Ω—99.999MΩ
    C: 0.001pF—99999µF
    L: 0.001µH—99.999kH
    Q: 0.0001—9.9999
    D: 0.0001—9.9999
    Δ%: 99.999%—99.999%
    |Z|, R: 0.0001Ω—99.999MΩ
    C: 0.01pF—99999μF
    L: 0.01µH—99999H
    D: 0.0001—9.9999
    Q: 0.0001—9999.9
    Measuring Speed slow: 1.5 times/sec
    medium speed: 5 times/sec
    medium speed: 5 times/sec
    Equivalent Circuit  series, paralle
    Range Mode  auto, keep
    Trigger Mode internal, manual, external
    Correction Function open circuit, short circuit
    Measuring End 5
    Display Mode direct reading, Δ%, grade and file count
    Sorting Four stalls (The third gear is qualified. One gear is unqualified.)
    There is another attached gear
    Interface RS232C
    Working Temperature, Humidity 0℃~40℃, ≤90% RH
    Power Requirements 198V~242V AC, 47.5Hz~52.5Hz
    power waste ≤50 VA
    Certification CE
    Size (W×H×D) 308mm×105mm×310mm

    Panel Details

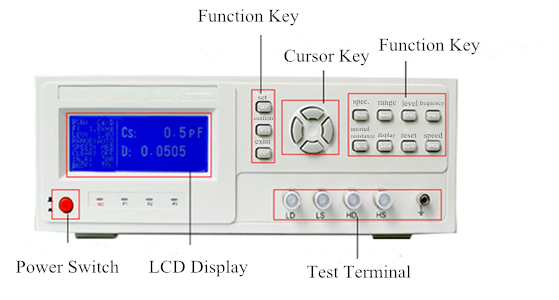

    Panel Details of 50Hz~100kHz Digital LCR Meter

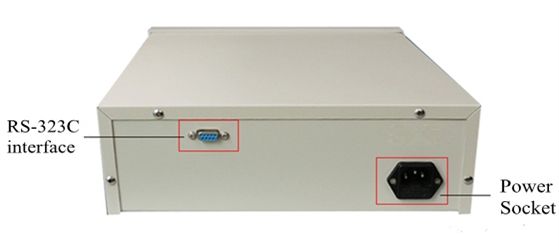

    Panel Back Details of Digital LCR Meter, 50Hz~100kHz

    Dimension Drawing

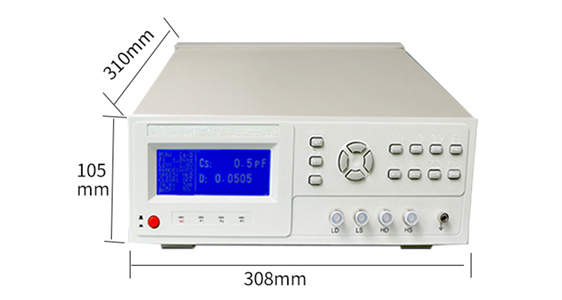

    Dimension Drawing of Digital LCR Meter, 50Hz~100kHz

    Tips: What is a digital LCR meter?

    Digital LCR meter is also called digital LCR bridge or LCR tester. It can accurately and stably measure various component specifications, is a tester mainly used to test inductance (L), capacitance (C), and resistance (R). Digital LCR meter has two detection modes: series mode and parallel mode. The series mode is based on detection for component impedance Z, and the parallel mode is based on detection for component admittance Y. Digital LCR meter has the features of direct function and easy operation. It can meet test requirements of devices in production line quality assurance, incoming inspection, electronic repair and other industries with a lower budget.
