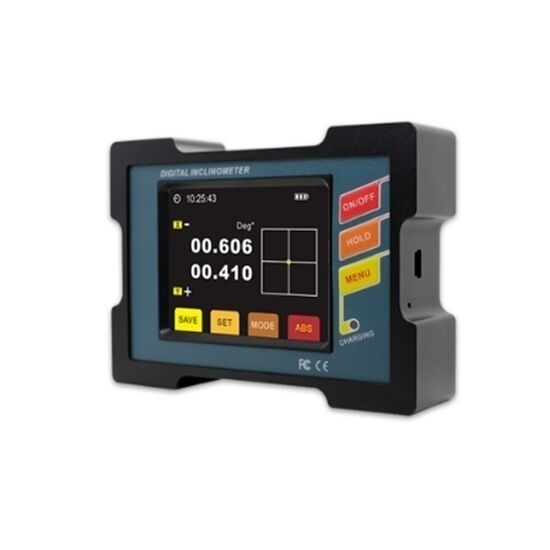

Lower cost inclinometer with output signal USB1.1 for sale, the digital inclinometer with dual axis, radian, angle, mm/ meter three measuring modes can be set.
Features
- Accuracy: <0.003°
- Repeatability: 0.003°
- Angle resolution: 0.001°
- Measuring range: ±15°/ ±30°
- Data store function.
- Absolute/Relative measurement can switch.
- Both sides and bottom can be measured.
- Double benchmark strong magnet installation.
- Auto-angle interleaved compensation function.
- Auto temperature drift compensation.
- Built-in rechargable industy battaries.
- Night vision fours colors screen.
- Filter frequency optional.
Specification
Model |
DMI820-15 |
DMI820-30 |
Angle Measuring Range* |
±15° |
±30° |
Mm Measuring Range |
267mm |
577mm |
Millimeter Measuring Accuracy |
0.1 mm (RMS) |
0.2 mm (RMS) |
The Highest Measuring Accuracy |
<0.005 (Full measuring range) |
<0.001 (Full measuring range) |
Measuring Axis |
Dual axis |
Angle Measuringt Solution |
0.001° |
Three Measuring Mode |
Radian, Angle, mm/meter can be set |
Absolute Accuracy |
0.05°/rms |
Output Signal* |
USB1.1 (Virtual Serial Device), Optional: RS232/RS485 |
Millimeter Measuring LCD |
0.02 mm |
LCD |
64-color true color luminous display |
LCD Visible Area Size |
L57.6mm*W43.2mm |
Working Temperature |
-10℃-70℃ |
Working Humidity |
85% RH |
Power Supply |
3.7V Charging Lithium Battery |
Ideal Charging Time |
5h |
Battery Sustainable Charging Times |
11h |
Connect Plug in |
Standard 5 Pin USB Connector |
Equipped with PC Software |
VC Software |
Shock Resistance |
10g @11ms, three-axis (Half sine wave) |
Shock Impact |
10g rms, 10-100Hz |
Weight |
300g |
Waterproof Grade |
IP54 |
Material |
Aluminum Anodizing |
Size |
L107mm*W75mm*H27.1mm |
Certificate |
CE, FCC, ROHS |
Warranty |
12 months |
3D Demonstration
Here is a 3D demo of the ATO high-precision digital inclinometer. It demonstrates unparalleled accuracy and advanced technology, allowing for precise measurements in various applications.
Dimension (unit=mm)
Measuring Direction
Tips: How to Use Digital Inclinometer?
After we reinstall the battery or press and hold the value lock key (HOLD) for 6 seconds, the inclinometer will enter the calibration state, and the LCD will display the symbol "-1-". The inclinometer must be calibrated to perform the measurement. The calibration steps are as follows:
1. Place the inclinometer on the platform facing the operator, short press the absolute measurement key (ABS), the first stage of calibration symbol "-1" displayed on the screen flashes.
2. After the first stage of the calibration symbol "-1-" flashes for 6 seconds, the screen display will automatically switch to the second stage of the calibration symbol "-2-".
3. Rotate the inclinometer 180 degrees, and face the operator on the back of the product in the original position;
4. Short press the absolute measurement key (ABS), the second stage of calibration symbol "-2-" flashes;
5. After the second stage of the calibration symbol "-2-" flashes for 6 seconds, the screen displays the angle value of the current plane relative to the horizontal plane, and the calibration operation ends.
Note: The displayed angle after calibration is the angle between the currently calibrated plane and the absolute horizontal zero position of the earth.
