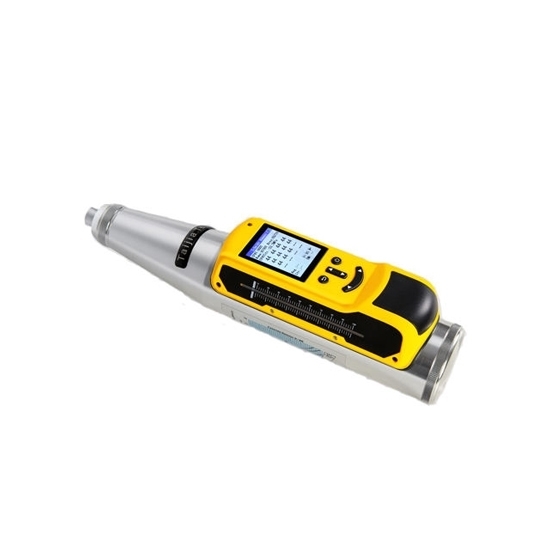

Digital Concrete Rebound Hammer, 10-60 MPa

Buy the low-priced digital concrete test hammer online, it has a strength measurement range of 10-60 MPa. ATO concrete rebound hammer uses a digital sensor to measure the rebound distance and convert the results into a digital display for easy reading and interpretation.

Specification

• Model: ATO-HD-225D
• Material: Integrally formed stainless steel body, sturdy and durable
• Testing Range: 10-60MPa
• Rebound Value of Steel Anvil Calibration: 80±2
• Data Processing: Automatically performs data correction, calculation and statistical analysis in accordance with specifications
• Nominal Kinetic Energy: 2.207J
• Impact Hammer: 75mm
• Stiffness of Impact Tension Spring: 7.85N/cm
• System Capacity: 4000 components
• Operation Interface: Chinese supported
• Voice Function: Voice reading function during impact
• Sensor Service Life: More than 200,000 times
• Operation Mode: Silicone luminous keys
• Indication Consistency Error: ≤±0.5, the difference between the pointer reading of the mechanical rebound tester and the screen reading of the instrument
• Display Size: 2.8-inch color LCD screen (240*320 pixels)
• Body Dimension: 275*55*85mm
• Data Processing: Professional export software, automatic data analysis and test report export
• Battery Capacity: 3.7V 2200mAh lithium battery, direct USB charging
• Input Voltage:  DC 5V

Dimensions

Details

How to Use

Applications

The rebound hammer is a widely used non-destructive testing tool for assessing the strength and consistency of concrete structures. It is commonly used in construction and civil engineering applications to evaluate the compressive strength of concrete in areas such as bridges, dams, buildings, and pavements.

Tips: What are the types of rebound hammers?

A rebound hammer is a device used for non-destructive testing of concrete, which measures the surface hardness of the material by assessing the rebound of a spring-loaded hammer. There are two types of rebound hammers:

• Analog Rebound Hammers: Analog rebound hammers have a mechanical gauge that displays the rebound value on a scale, which the user must interpret. The accuracy of the reading is dependent on the user's ability to read the scale correctly.
• Digital Rebound Hammers: Digital rebound hammers have an electronic display that shows the rebound value in numerical form, eliminating the need for interpretation by the user. The accuracy of the reading is improved due to the elimination of potential errors caused by misreading the gauge on an analog rebound hammer. Additionally, digital rebound hammers typically have additional features such as data storage, automatic calculations of rebound values, and Bluetooth connectivity for remote monitoring and data transfer.
