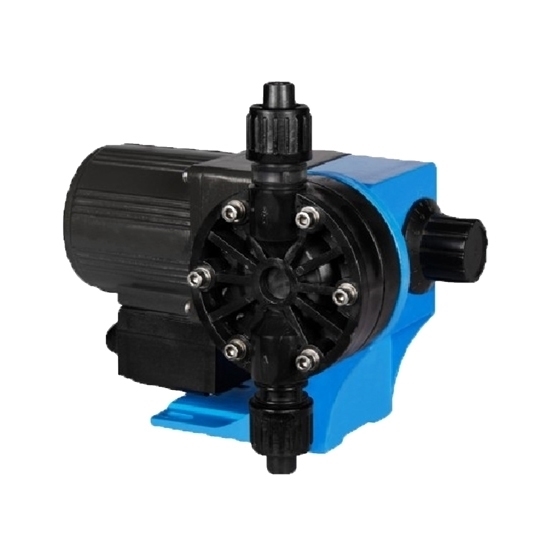

Diaphragm Dosing Pump, 32 L/h Flow

Diaphragm dosing pump is a precision metering device utilized for handling chemicals. It employs a flexible diaphragm instead of a piston to alter the pump chamber's volume. This diaphragm oscillates, resulting in the intake and discharge of liquid through the pump's inlet and outlet valves.

Specification

• Model: ATO-DJ-W32/0.4
• Flow: 32L/h
• Pressure: 0.4MPa
• Stroke: 3mm
• Pump Speed: 135rpm
• Pump Head Material (Optional): PVC (Default), 304 Stainless Steel, 316 Stainless Steel, PTFE
• Motor Power: 25W
• Motor Voltage (Optional): 380V 50Hz (Default), 220V, 110V, 24V
• Diaphragm Diameter: 65mm
• Inlet & Outlet Diameter: 6mm
• PE Hose Diameter: 6mm, 10mm
• Weight: 4kg

Dimension (Unit: mm)

Tips: Where are metering pumps used?

Metering pumps are precision devices used in various industries to accurately and consistently dispense fluids at a controlled rate. They find applications in a wide range of fields, including:

• Water Treatment: Dosing pumps are used to add chemicals like chlorine, coagulants, and pH adjusters to ensure safe and clean drinking water.
• Chemical Manufacturing: They are vital for precise dosing of chemicals in chemical processes, ensuring product quality and safety.
• Oil and Gas: Metering pumps control the injection of chemicals for corrosion inhibition, scale prevention, and enhanced oil recovery.
• Pharmaceutical Industry: They enable the accurate dispensing of ingredients in drug manufacturing, guaranteeing product consistency.
• Agriculture: In agriculture, metering pumps are used for fertilization and pesticide application, optimizing crop growth and protection.
• Food and Beverage: These pumps are essential for flavoring, coloring, and preservative dosing in food and beverage production.
• Wastewater Treatment: Dosing pumps assist in wastewater treatment by accurately adding treatment chemicals.
• Mining: They control the addition of reagents in mineral processing and extraction.
