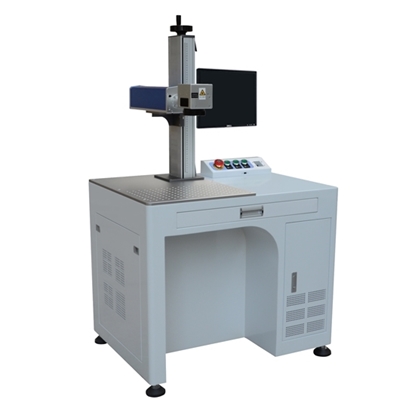

    20w Desktop Fiber Laser Marking Machine

    5 out of 5 based on 1 reviews | Write a review
    $14,696.97
    Desktop fiber laser marking machine for sale, faster marking speed, more sophisticated engraving effect, 20w output power, integrated module design, maintenance-free.
    SKU: ATO-F20PL
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Fiber laser marking system features:

    • Marks widest variety of materials, including steel, titanium, aluminum, copper, ceramics and some plastics.
    • 100,000+ hours of laser life, reducing costs and production downtime.
    • 110mm2 mark field (other sizes available).
    • No consumables and minimal maintenance help reduce operating costs.
    • Air-cooled 10W-20W models.
    • Higher beam quality than flash lamp, diode pumped and vanadate, resulting in a high quality mark.
    Basic Information
    Model ATOF20PL
    Weight 44 lbs. (20 kg)
    Dimension 320mm x 550mm x 600mm (12.6" x21.65"x23.62")
    Distance (scanner to working plateform) 160~284mm (6.3" x 11.18")
    Platform size 320mm x 550mm (12.6" x 21.65")
    Warranty 2 Years
    System Technical Specifications
    Laser type Fiber; Ytterbium doped
    Output power 10W, 20W
    Power requirements 10W 20W: 220 V AC, 16 A, 50/60 Hz
    Wavelength 1070 nm
    M2 <1.4
    Operation mode Pulsed
    Pulse rep rate 20-80 kHz
    Cooling 10-20W: Fan assisted air cooling
    Scanning method XY galvanometer
    Max line speed 7,000 mm/sec
    Controls LEC 1 industrial computer based controller
    Communications USB ports, Ethernet, EtherNet/IP™, RS232
    Documentation USB flashdrive with operator's manual and integration guide; Online video troubleshooting
    Lens Configurations
    Lens Marking field Focal length
    100mm 65mm x 65mm (2.5" x 2.5") 97mm (3.82")
    160mm 110mm x 110mm (4.3" x 4.3") 175mm (6.89")
    254mm 175mm x 175mm (6.9" x 6.9") 296mm (11.65")
    330mm 228.6mm x 228.6mm (9" x 9") 387mm (15.23")

    Material: Plastic, steel, stainless steel, magal, zinc alloy, copper, nickeling, zincing, alox.

    Tips: Selection skills of laser marking machine

    1. Firstly, users should think about the materials to be marked. According to different laser lights, laser marking machines are classified into optical fiber type, YAG type, CO2 type and so on. For metal materials and non-metal products, users should choose the most suitable laser marking machine type.
    2. Choose laser marking machine according to product requirements. Based on different use methods, laser marking machines are divided into engraving, cutting and marking. Some are special-purpose machines while some are multi-functional machines, so users should take actual use needs into consideration
    3. Choose suitable machine marking area according to the sizes of products to be processed. In terms of the size of marking area, it is not that bigger is better. On the one hand, marking machine with large marking area is surely more expensive. On the other hand, for some large-breadth equipment with poor quality, the output average degree of laser light of each point is unstable, so that the depth of the products marked on a same table is not the same. Hence, it is important to choose the optimal marking area.
    Existing reviews of 20w Desktop Fiber Laser Marking Machine
    worthy investment
    We are a small-scale manufacturing company specializing in custom gifts and crafts. After tirelessly searching for a solution to elevate the quality and competitiveness of our custom gifts and crafts, we stumbled upon this Desktop Fiber Laser Marking Machine. Our small-scale manufacturing business relies heavily on precision and efficiency, making this investment a pivotal decision. The 20W output power ensures seamless execution of intricate designs, while the integrated module design simplifies operation, allowing our team to focus on creativity rather than technicalities. This machine has truly transformed our workflow and elevated the standard of our offerings, making it a valuable asset to our business.
    From: Lydia | Date: 14/06/2024
    Was this review helpful? Yes No (0/0)
