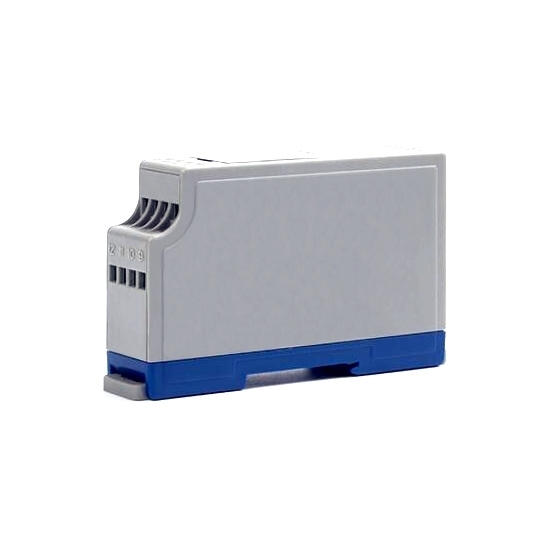

    DC Voltage Transducer 10mV to 1000V, Power Supply DC 12V/24V/36V

    $195.56
    DC voltage transducer has a measuring range from DC 10mV/50mV/75mV/5V/150V/300V/500V to 1000V. It's also an isolated voltage transducer with special isolation module, supply voltage DC 9-36V, accuracy 0.2%FS and output signal 0-20mA/4-20mA. DC voltage sensor is widely used for voltage isolated measuring and control, such as all the instruments, medical equipment, etc.
    *
    *
    SKU: ATO-VOS-DC1000S
    Availability: Out of stock
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    This SKU ATO-VOS-DC1000S is out of stock.
    We recommend you another isolated DC voltage sensor ATO-VOS-DC1000, which has measuring range from DC 10mV, 50mV, 75mV, 5V, 75V, 150V, 300V, 500V to 1000V and power supply DC 12V/24V.


    DC voltage sensor has measuring range of 10mV/50mV/75mV/5V/50V/150V/200V/300V/400V/500V/750V to 1000V.


    Specification:

    Model ATO-WBV344M05
    Shipping weight 1kg
    Measuring range of input voltage * DC 0-10mV ~ 0-1000V
    Short-time overload 2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
    Linear measurement range 0% ~ 120% measuring range
    Input impedance When Ux>1V, Ri=Ux*10kΩ/V; when Ux≤1V, Ri≥1MΩ
    Output signal * DC 0-20mA, 4-20mA
    Power supply DC 9-36V
    Accuracy 0.2%F.S.
    Load capacity 300Ω
    Response time ≤20ms
    Temperature drift 50*10-6/℃
    Static power consumption 0.32W
    Isolation features Isolation between input, output and power supply
    Isolation voltage DC 2.5kV, 1 min
    Work temperature -25~+70℃
    Storage temperature -40~+85℃
    Protection features Surge (inrush) immunity: IEC61000-4-5
    Electrostatic discharge immunity: IEC61000-4-2
    Radio frequency electromagnetic field radiation immunity: IEC61000-4-3
    Electrical fast transient burst immunity: IEC61000-4-4
    Conducted immunity of radio frequency electromagnetic field: IEC61000-4-6
    Mean time between failures >50000h
    Housing material PC + Fire-retardant ABS
    Wiring Terminal connection
    Installation DIN rail (NS35/7.5, NS35/15, EN50022), or screw (M3) fixation

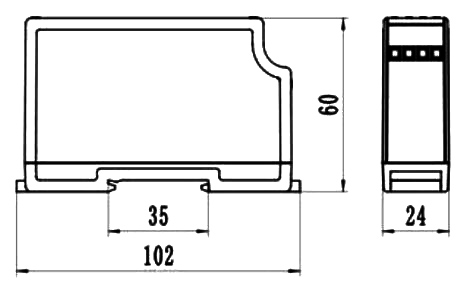

    DC voltage transducer 10mV to 1000V dimensional drawing (unit: mm):
    DC voltage transducer 10mV/5V/200V/500V to 1000V dimension

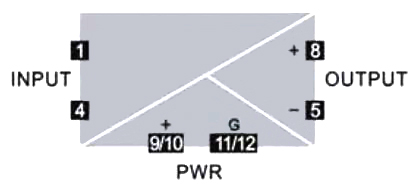

    DC voltage transducer 10mV to 1000V wiring diagram:
    DC voltage transducer 10mV/5V/200V/500V to 1000V wiring

    Details

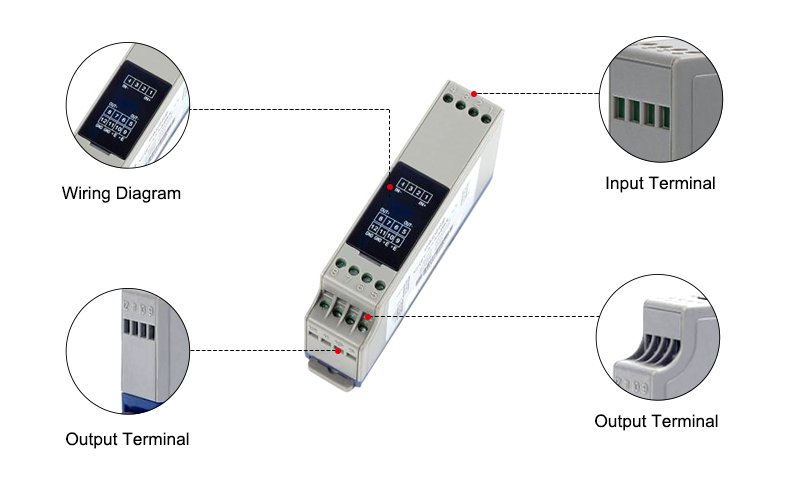

    Voltage Sensor Range 10mV to 1000V Details
