    12V/24V DC Cooling Fan, 50mm x 50mm x 15mm

    5 out of 5 based on 5 reviews | Write a review
    $25.79
    12V DC 50mm cooling fan for sale, size of 50mm x 50mm x 15mm, DC brushless cooling fan runs quietly, bearing type oily or ball, rated current 0.06A/0.07A/0.1A/0.12A, DC cooling fans are rugged and resistant to high temperatures. DC brushless cooling fans operate quietly and efficiently, providing the perfect solution for noise-sensitive environments.
    *
    *
    *
    SKU: ATO-CF-DC5015
    This product has a minimum quantity of 3
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    12V/24V DC brushless cooling fan 50mm x 50mm x 15mm, IP67, fan speed of 4000rpm/4500rpm/5000rpm, fireproof and waterproof. ATO brushless DC fans are a versatile and reliable cooling solution for a wide range of applications, from domestic appliances to industrial equipment.

    12V/24V DC Cooling Fan Specifications:

    Model ATO-DC5015SLL ATO-DC5015BLL ATO-DC5015SLM ATO-DC5015BLM ATO-DC5015SLH ATO-DC5015BLH
    Rated Voltage 12V 24V 12V 24V 12V 24V 12V 24V 12V 24V 12V 24V
    Bearing Type Oily Ball Oily Ball Oily Ball
    Rated Current 0.06A 0.07A 0.06 0.07A 0.06A 0.1A 0.12A 0.1A 0.12A
    Input Power 0.72W 1.44W 0.72W 1.44W 0.84W 1.44W 0.84W 1.44W 1.2W 2.88W 1.2W 2.88W
    Fan Speed 4000±10%RPM 4500±10%RPM 5000±10%RPM
    Air Flow 9.7CFM 10.9CFM 12.4CFM
    Static Pressure 2.8mm-H2O 3.2mm-H2O 3.8mm-H3O
    Noise 25.5dB-A 29dB-A 31dB-A
    Dimension 50mm x 50mm x 15mm
    Material Plastic
    Certificate CE, UL
    Fire Rating UL94V-0
    Operating Temperature -10 ℃ ~ 70 ℃
    Operating Humidity 35% ~ 85RH
    Storage Temperature -40 ℃ ~ 70 ℃
    Storage Humidity 35% ~ 85RH

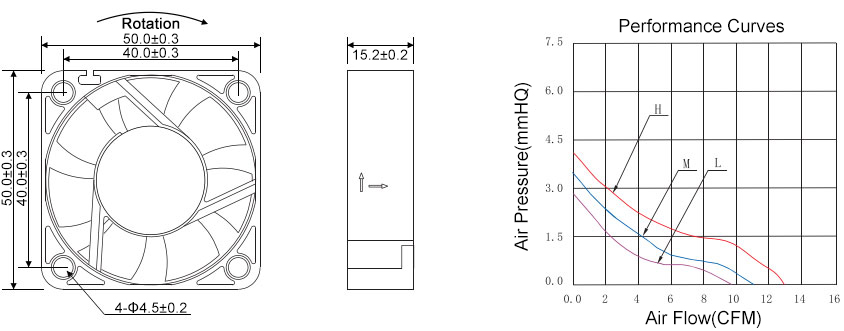

    Dimensions and Curves (unit: mm)50mm dc cooling fan dimensions
    DC Cooling Fan Interface
    DC cooling fan interface one
    DC cooling fan interface two
    DC cooling fan interface three
    Tips: DC cooling fan noise processing method
    1. Select appropriate fan specifications and parameters according to the actual situation.
    2. Regularly clean the dust and refuel the fans to reduce the conflict between the fans.
    3. Put a sponge, rubber or cotton between the fan and the fixed end to reduce the noise caused by the feeling caused by the high speed rotation of the fan.
