12V/24V DC Cooling Fan, 120mm x 120mm x 25mm

5 out of 5 based on 4 reviews | Write a review

$39.87

This brushless DC fan is designed to provide reliable, high-performance cooling for a variety of applications. DC cooling fan rated voltage 12 volt or 24 volt, dimension of 120mm x 120mm x 25mm, air flow 33.5CFM/50.2CFM/67CFM. The DC brushless cooling fan is the perfect choice for any cooling application thanks to its advanced features and reliable performance.

Model *
Rated Voltage *
Interface *

SKU: ATO-CF-DC12020

This product has a minimum quantity of 3

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

24V 120mm DC cooling printer fan for sale, size of 120mm x 120mm x 25mm. ATO brushless DC fans are designed for easy installation and use, with a simple plug and play design for quick and easy start-up and operation.

Specifications:

Model	ATO-DC12025SLL		ATO-DC12025SLM		ATO-DC12025SLH
Rated Voltage	12V	24V	12V	24V	12V	24V
Bearing Type	Oily
Rated Current	0.09A	0.08A	0.2A	0.13A	0.27A	0.07A
Input Power	1.08W	1.92W	2.4W	3.12W	3.24W	1.68W
Fan Speed	1000±10%RPM		1500±10%RPM		2000±10%RPM
Air Flow	33.5CFM		50.2CFM		67CFM
Static Pressure	1.4mm-H2O		2.0mm-H3O		2.7mm-H2O
Noise	19dB-A		28dB-A		37dB-A
Dimension	120mm x 120mm x 25mm
Material	Plastic
Certificate	CE, UL
Fire Rating	UL94V-0
Operating Temperature	-10 ℃ ~ 70 ℃
Operating Humidity	35% ~ 85RH
Storage Temperature	-40 ℃ ~ 70 ℃
Storage Humidity	35% ~ 85RH

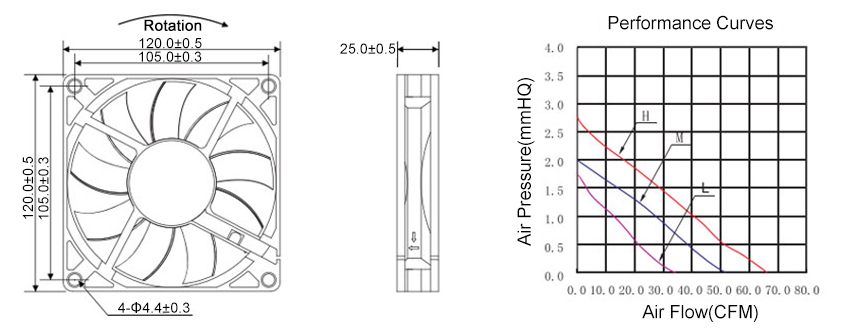

Dimensions and Curves (unit: mm)

DC Cooling Fan Interface

Tips: How to install a cooling fan in the case?
Usually there are two places where the fan can be installed in the chassis. The front side is usually at the hard disk fixing bracket, and the back side is usually under the power supply and above the computer keyboard port. Some cases are already installed with 1-2 cooling fans.
When installing the chassis cooling fan, you should follow the basic principle of air mobility.
If the installed cooling fan is forward and backward, then the internal flow path of the chassis is very regular. If the cooling fan is installed reversely, the rear-entry front-out or rear-entry forward is sufficient. Given that the power cooling fans are all out of the wind, Flow path error
Mess. When only one chassis cooling fan is installed, it depends on your cooling needs whether it is cooling the hard disk or the whole machine.
