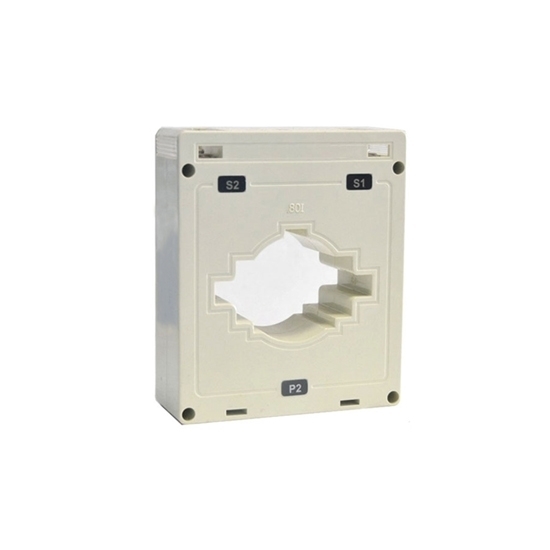

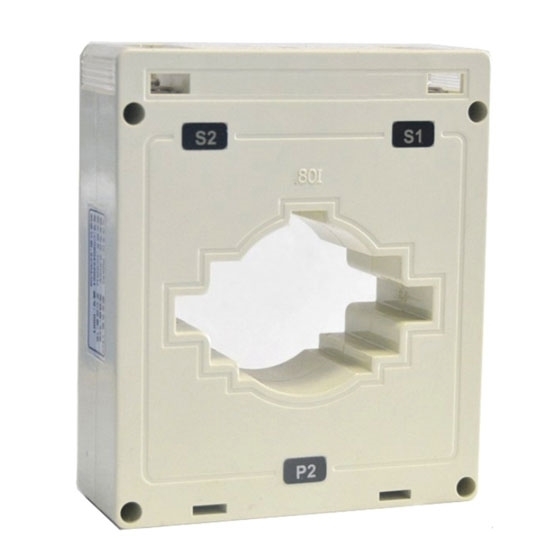

    Current Transformer, 500/5A, 800/5A, 1500/5A to 2500/5A

    5 out of 5 based on 2 reviews | Write a review
    $179.68
    Current transformer rated ratio 500:5A, 750:5A, 1200:5A and 2500:5A are available, accuracy classes can select 1, 0.5, 0.5S, 0.2 and 0.2S, rated frequency 50Hz or 60Hz, manufacturer direct saleand free shipping.
    *
    *
    SKU: ATO-CT-80I
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    AC current transformer rated frequency is 50 Hz, current ratio 500/5A, 1000/5A, 1500/5A and 2500/5A, are optional, comfortable price and long service time.

    Note: The installation method of current transformer can be fixed by busbar and fixed by the bottom plate, suitable for installation in any direction. The primary conductor can be busbar or cable.

    Specifications:

    Model ATO-CT-80I
    Weight 1kg
    Current Ratio (A) VA Secondary load/ Burden (VA) Cross-core Turn Number
    0.2 0.5S 0.2S
    800/5 / 5 5 1
    1000-1250/5 / 10 5 1
    1500-2000/5 / 15 10 1
    2500/5 / 20 20 1
    3000/5A / 20 20 1
    Rated Frequency 50/60Hz
    Rated Test Voltage 3kV AC (1min)
    Rated Short-Time Thermal Current (ith) 60 in
    Rated Dynamic Current (idyn) 2.5 lth
    Rated Voltage (Um) 0.66 kV AC
    Continuous Overload (ld) 1.2 in
    Operating Temperature -10℃~50℃
    Housing Self-Extinguishing Class VO
    Safety Factor FS 5
    Secondary Current 5A/ 1A
    Bus Specification (mm)/Number 1

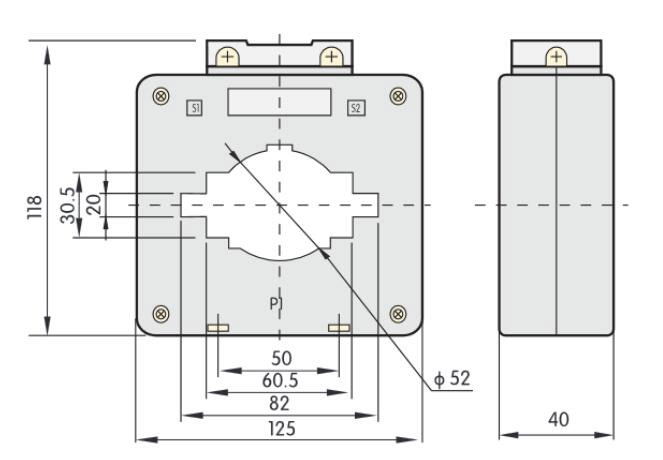

    Dimension (unit: mm)

    Current transformer dimension

    Model Dimensions Perforation size Installation size
    W H D a e φ M N
    ATO-CT-30I 62 78 45 32 11 22 40 57.5
    ATO-CT-3030I 85 102 50 32 11 28 / 57.5
    ATO-CT-40I 75 95 45 42 11 31 40 57.5
    ATO-CT-60I 102 130 45 61.5 21 45 42 57.5
    ATO-CT-60II 102 125 45 31 33 / 42 57.5
    ATO-CT-80I 118 140 45 82 11 52 60 57.5
    ATO-CT-100II 145 125 45 103 35 / 80 57.5

    Tips: How to select a current transformer?

    Rated primary voltage of the current transformer shall be in consistent with the rated voltage of the system. Rated primary current of the current transformer shall be 20%~120% of its normal load current. Secondary loads of the current transformer, such as instruments and relay, consume a power or impedance less than rated capacity corresponding to the selected class of accuracy, otherwise the class of accuracy will reduce. A proper class of accuracy shall be selected for the current transformer according to the requirements of measurement and protection.

    Quantity of the current transformer can be determined by the power supply mode and wire connection method. Dynamic and thermal stability of the current transformer can be verified according to the system short circuit capacity of the position where the current transformer is installed.

    Existing reviews of Current Transformer, 500/5A, 800/5A, 1500/5A to 2500/5A
    Questions about current transformers
    What are the units on the accuracy of your current transformer? Amps? % of rated amps?
    From: Santosh | Date: 03/06/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    %, the CT has accuracy levels of classes 1, classes 0.5 and classes 0.2. For example: Classes 0.5, means that the measurement error is within ±0.5% of the standard test data.
