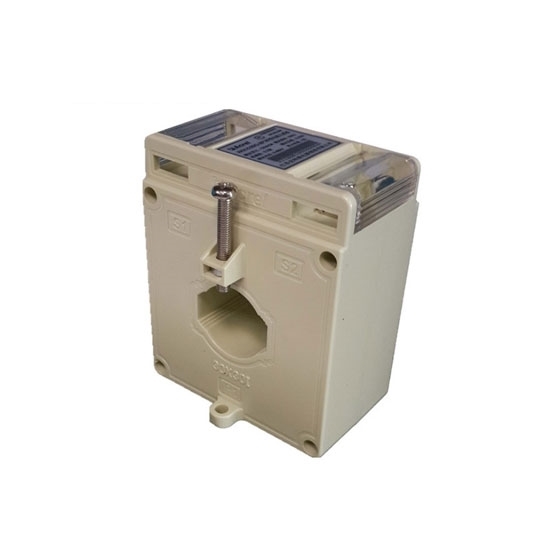

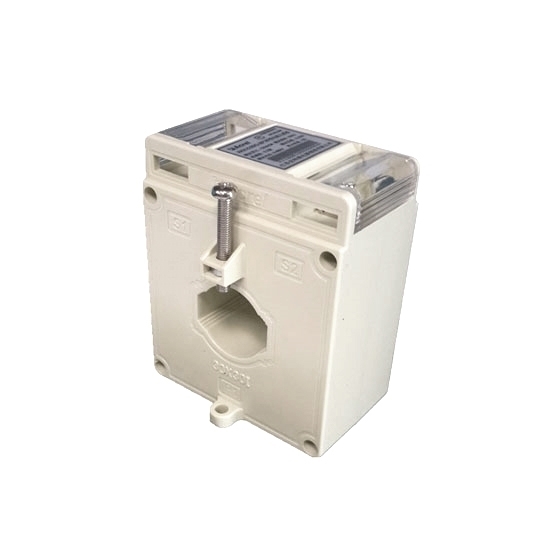

    Current Transformer, 30/5A, 75/5A, 100/5A to 400/5A

    5 out of 5 based on 2 reviews | Write a review
    $116.98
    Low cost CT transformer rated frequency 50Hz and 60Hz are optional, current ratio can be 30/5A, 75/5A, 100/5A, 200/5A and 400/5A, accuracy classes can be selected. AC current transformer with high accuracy, fast response and light weight.
    *
    *
    SKU: ATO-CT-3030I
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Current transformer is one of important devices for power system and used to transform the voltage or current. Current radio 50:5A, 100:5A, 250:5A, to 400:5A. AC current transformer with rated frequency 50Hz or 60Hz, free shipping and good value for money.

    Note: The installation method of current transformer can be fixed by busbar and fixed by the bottom plate, suitable for installation in any direction. The primary conductor can be busbar or cable.

    Specification:

    Model ATO-CT-3030I
    Weight 1kg
    Current Ratio (A) VA Secondary load/ Burden (VA) Cross-core Turn Number
    0.2 0.5S 0.2S
    30/A 2.5 2.5 2.5 3
    50/5 2.5 2.5 2.5 2
    75/5 2.5 2.5 2.5 2
    100/5 2.5 2.5 2.5 1
    150/5 2.5 1.5 1.5 5
    200/5 5 5 3.75 1
    250/5 5 5 5 1
    300/5 5 5 5 1
    400/5 5 5 5 1
    Rated Frequency 50/60Hz
    Rated Test Voltage 3kV AC (1min)
    Rated Short-Time Thermal Current (ith) 60 in
    Rated Dynamic Current (idyn) 2.5 lth
    Rated Voltage (Um) 0.66 kV AC
    Continuous Overload (ld) 1.2 in
    Operating Temperature -10℃~50℃
    Housing Self-Extinguishing Class VO
    Safety Factor FS 5
    Secondary Current 5A/ 1A
    Bus Specification (mm)/Number /

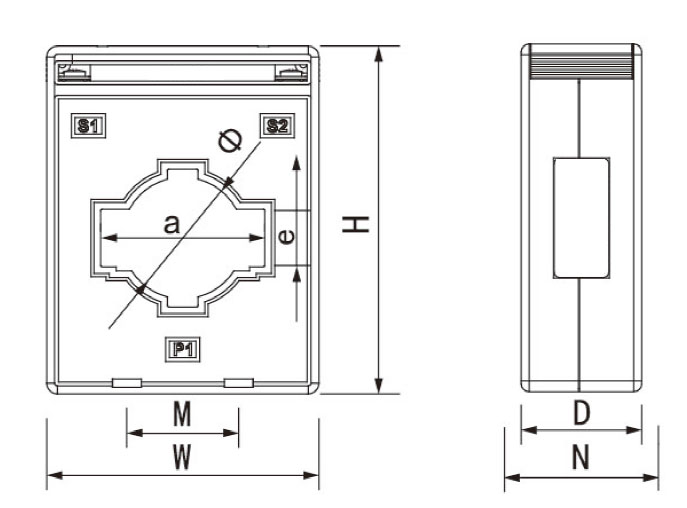

    Dimension (unit: mm)

    Current transformer dimension

    Model Dimensions Perforation size Installation size
    W H D a e φ M N
    ATO-CT-30I 62 78 45 32 11 22 40 57.5
    ATO-CT-3030I 85 102 50 32 11 28   57.5
    ATO-CT-40I 75 95 45 42 11 31 40 57.5
    ATO-CT-60I 102 130 45 61.5 21 45 42 57.5
    ATO-CT-60II 102 125 45 31 33 / 42 57.5
    ATO-CT-80I 118 140 45 82 11 52 60 57.5
    ATO-CT-100II 145 125 45 103 35 / 80 57.5

    Tips: What causes the current transformer to burn out?

    • Secondary open circuit of the current transformer produces high voltage to burn out the current transformer.
    • Long-term use of the current transformer makes the insulation aging, local breakdown or discharge occurs and overvoltage is thereof produced, thus burning out the current transformer.
    • Long-term overload operation makes the current transformer to give out heat, it is thereof burned out.
    • The aluminum contact surface of current transformer’s primary connection is seriously oxidized, which results in large contact resistance. The contact resistance gives out heats and burns out the current transformer.
    Existing reviews of Current Transformer, 30/5A, 75/5A, 100/5A to 400/5A
    Very delicate AC transformer
    I bought a 400/5A current transformer again, the price is cheap, it matches the description, it has been installed and used, and the quality is reliable.
    From: Vincent | Date: 12/04/2022
    Was this review helpful? Yes No (0/0)
    Can you proivde 8500A/5A current transformer?
    Can you proivde 8500A/5A current transformer?
    From: Mikem | Date: 17/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We can provide standard current transformer ratios: 9000/5 or 8000/5 not 8500/5.
