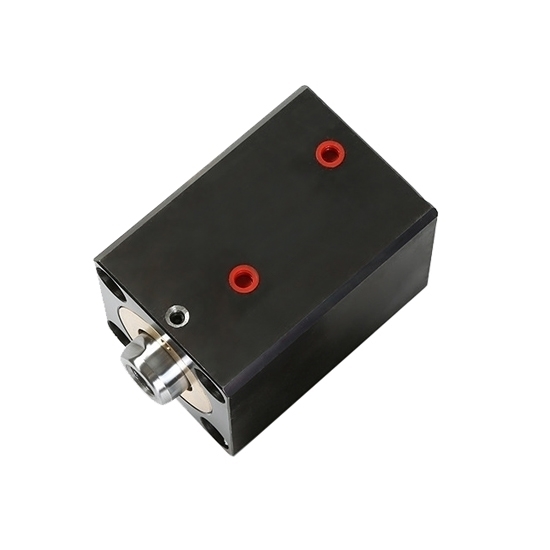

Double Acting Compact Hydraulic Cylinder, 2 inch (50mm) Stroke

$473.69

Purchase economical price compact hydraulic cylinder online. This double acting hydraulic cylinder comes with 2 inch (50mm) stroke, available in bore diameters of 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, which are employed in diverse machinery such as industrial presses, material handling equipment, and robotic systems.

Bore Diameter *

SKU: ATO-CHC-50MM

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

ATO compact hydraulic cylinder is employed in applications like clamping, lifting, and positioning. The compact design contributes to faster response times and precise control, making it ideal for tasks requiring accuracy.

Specification

Model	ATO-CX-SD2050	ATO-CX-SD2550	ATO-CX-SD3250	ATO-CX-SD4050	ATO-CX-SD5050	ATO-CX-SD6350	ATO-CX-SD8050	ATO-CX-SD10050
Bore Diameter	20mm	25mm	32mm	40mm	50mm	63mm	80mm	100mm
Stroke	2 inch (50mm)
Working Fluid	Hydraulic Oil
Working Pressure	3~140kg·f/cm
Pressure Resistant	210kg·f/cm
Working Speed	8~100mm/sec
Working Temperature	-10~70℃

Note: If you need to customize compact hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

Compact hydraulic cylinder dimension

Bore Diameter	A	B	C	CL	D	SW	E	F	H	K	M	N	P1	P2	R	PT
φ20	51	43	8	6	12	10	44	30	5.5	5.6	9	M81.2512D	22.5	11	5	1/8
φ25	53	45	8	6	14	12	50	36	5.5	5.6	9	M101.515D	23	12	5	1/8
φ32	64	54	10	7	20	17	62	47	6.5	6.8	11	M121.7515D	28	14	10	1/4
φ40	65	55	10	7	25	22	70	52	9	9	14	M162.020D	28	15	10	1/4
φ50	71	60	11	8	30	27	80	58	11	11	18	M202.525D	29.5	18	10	1/4
φ63	80	67	13	10	35	32	94	69	13	13	20	M273.035D	61	20	10	3/8
φ80	95	78	17	14	40	35	114	86	15	15	22	M303.535D	66	27	15	3/8
φ100	99	82	17	14	45	40	134	102	17.5	18	26	M364.040D	36	27	15	3/8

Tips: How does a compact hydraulic cylinder work?

A compact hydraulic cylinder operates on the principle of transmitting force through a fluid to generate linear motion. It consists of a cylindrical barrel, a piston, and hydraulic fluid. When hydraulic fluid is pressurized and introduced into one end of the cylinder, it exerts force on the piston, causing it to move along the cylinder's axis. This motion is then used to perform mechanical work, such as lifting or pushing loads. The compact design is achieved by integrating the hydraulic components into a small space without compromising performance. The cylinder's compactness is beneficial for applications with limited space, providing a versatile solution for various industrial and mobile machinery applications, where space constraints are a critical factor.
