Double Acting Compact Hydraulic Cylinder, 1-1/2 inch (40mm) Stroke

$338.19

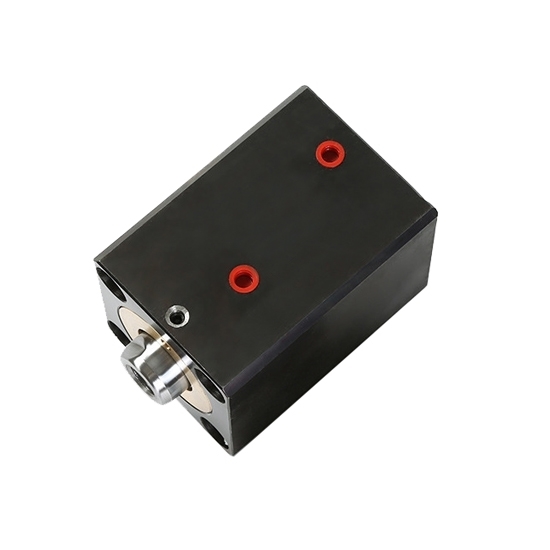

Cost-effective double acting compact hydraulic cylinder for sale, with 1-1/2 inch (40mm) stroke, available in bore diameters of 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, 100mm. This mini hydraulic cylinder is a mechanical actuator designed to provide linear force and motion through the use of pressurized hydraulic fluid.

Bore Diameter *

SKU: ATO-CHC-40MM

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Double acting compact cylinders deliver substantial force, making them versatile for various industrial and mobile machinery applications. The compact size allows for easy integration into tight spaces, making them essential components in equipment such as robotics, automotive systems, and medical devices.

Specification

Model	ATO-CX-SD2040	ATO-CX-SD2540	ATO-CX-SD3240	ATO-CX-SD4040	ATO-CX-SD5040	ATO-CX-SD6340	ATO-CX-SD8040	ATO-CX-SD10040
Bore Diameter	20mm	25mm	32mm	40mm	50mm	63mm	80mm	100mm
Stroke	1-1/2 inch (40mm)
Working Fluid	Hydraulic Oil
Working Pressure	3~140kg·f/cm
Pressure Resistant	210kg·f/cm
Working Speed	8~100mm/sec
Working Temperature	-10~70℃

Note: If you need to customize compact hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

Compact hydraulic cylinder dimension

Bore Diameter	A	B	C	CL	D	SW	E	F	H	K	M	N	P1	P2	R	PT
φ20	51	43	8	6	12	10	44	30	5.5	5.6	9	M81.2512D	22.5	11	5	1/8
φ25	53	45	8	6	14	12	50	36	5.5	5.6	9	M101.515D	23	12	5	1/8
φ32	64	54	10	7	20	17	62	47	6.5	6.8	11	M121.7515D	28	14	10	1/4
φ40	65	55	10	7	25	22	70	52	9	9	14	M162.020D	28	15	10	1/4
φ50	71	60	11	8	30	27	80	58	11	11	18	M202.525D	29.5	18	10	1/4
φ63	80	67	13	10	35	32	94	69	13	13	20	M273.035D	61	20	10	3/8
φ80	95	78	17	14	40	35	114	86	15	15	22	M303.535D	66	27	15	3/8
φ100	99	82	17	14	45	40	134	102	17.5	18	26	M364.040D	36	27	15	3/8

Tips: What is a compact hydraulic cylinder?

A compact hydraulic cylinder is a mechanical actuator that converts hydraulic power into linear force and motion in a space-efficient design. It consists of a cylindrical barrel, a piston, and hydraulic fluid. Unlike traditional cylinders, compact hydraulic cylinders are specifically engineered for applications with limited space or where a smaller footprint is essential. These cylinders deliver high force in a confined area, making them suitable for various industrial and mobile equipment, such as robotics, automotive systems, and machinery with space constraints. The compact design ensures efficient use of available space without compromising performance. Compact hydraulic cylinders play a crucial role in providing reliable and precise linear motion in applications where size and efficiency are critical factors.
