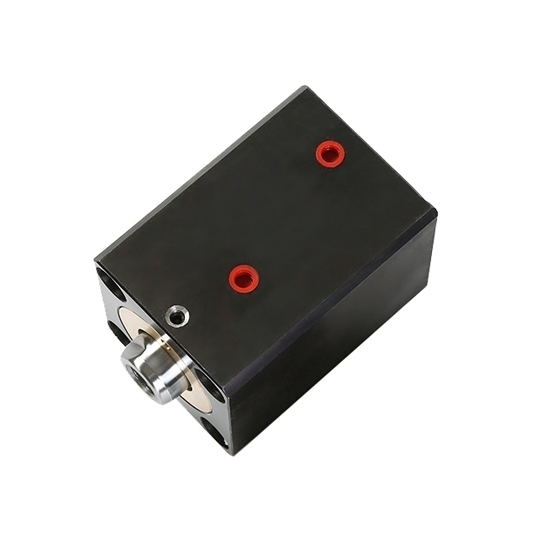

Double Acting Compact Hydraulic Cylinder, 1-1/4 inch (30mm) Stroke

$308.29

Buy compact hydraulic cylinder online at favorable price, with 1-1/4 inch (30mm) stroke, optional bore diameters of 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm. This double acting hydraulic cylinder offers precise control and reliable performance, designed to provide linear force through the use of pressurized hydraulic fluid.

Bore Diameter *

SKU: ATO-CHC-30MM

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

30mm stroke double acting compact hydraulic cylinders offer a space-efficient solution for converting fluid power into linear motion, finding application in diverse industries where limited space and high performance are crucial considerations.

Specification

Model	ATO-CX-SD2030	ATO-CX-SD2530	ATO-CX-SD3230	ATO-CX-SD4030	ATO-CX-SD5030	ATO-CX-SD6330	ATO-CX-SD8030	ATO-CX-SD10030
Bore Diameter	20mm	25mm	32mm	40mm	50mm	63mm	80mm	100mm
Stroke	1-1/4 inch (30mm)
Working Fluid	Hydraulic Oil
Working Pressure	3~140kg·f/cm
Pressure Resistant	210kg·f/cm
Working Speed	8~100mm/sec
Working Temperature	-10~70℃

Note: If you need to customize compact hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

Compact hydraulic cylinder dimension

Bore Diameter	A	B	C	CL	D	SW	E	F	H	K	M	N	P1	P2	R	PT
φ20	51	43	8	6	12	10	44	30	5.5	5.6	9	M81.2512D	22.5	11	5	1/8
φ25	53	45	8	6	14	12	50	36	5.5	5.6	9	M101.515D	23	12	5	1/8
φ32	64	54	10	7	20	17	62	47	6.5	6.8	11	M121.7515D	28	14	10	1/4
φ40	65	55	10	7	25	22	70	52	9	9	14	M162.020D	28	15	10	1/4
φ50	71	60	11	8	30	27	80	58	11	11	18	M202.525D	29.5	18	10	1/4
φ63	80	67	13	10	35	32	94	69	13	13	20	M273.035D	61	20	10	3/8
φ80	95	78	17	14	40	35	114	86	15	15	22	M303.535D	66	27	15	3/8
φ100	99	82	17	14	45	40	134	102	17.5	18	26	M364.040D	36	27	15	3/8

Tips: Compact hydraulic cylinder applications

Compact hydraulic cylinders find applications in various industries where space constraints are critical. These cylinders are employed in automotive systems, where they contribute to compact and efficient designs for steering and braking systems. In the aerospace sector, compact hydraulic cylinders are utilized in landing gear mechanisms, ensuring reliable retraction and extension in confined spaces. Additionally, these cylinders play a crucial role in manufacturing equipment, such as robotic systems and material handling machines, optimizing space utilization while providing high-force output. Medical devices also benefit from compact hydraulic cylinders, enabling precise movements in equipment like surgical robots and diagnostic instruments. Overall, the versatility and space-saving attributes of compact hydraulic cylinders make them indispensable in applications where efficient force transmission is required within limited spatial parameters.
