Double Acting Compact Hydraulic Cylinder, 3/8 inch (10mm) Stroke

5 out of 5 based on 1 reviews | Write a review

$252.39

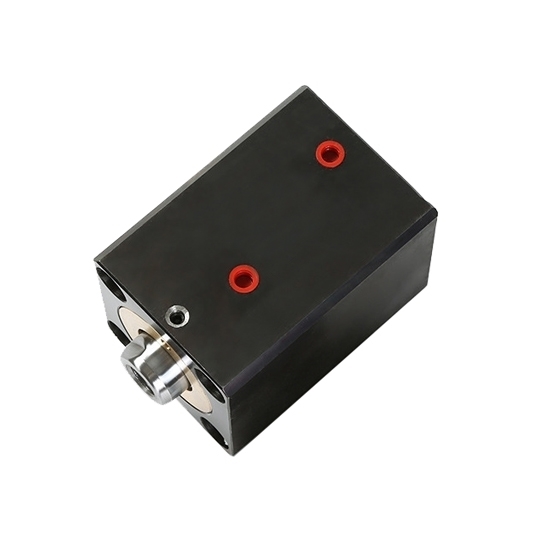

Factory price compact hydraulic cylinder with 3/8 inch (10mm) stroke for sale, bore diameters of 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm available. This double acting hydraulic cylinder is a mechanical device that converts hydraulic power into linear motion, widely used in manufacturing, automotive, and aerospace, where space constraints demand a compact yet powerful solution.

Bore Diameter *

SKU: ATO-CHC-10MM

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Double acting compact cylinders deliver substantial force, making them versatile for various industrial and mobile machinery applications. The compact size allows for easy integration into tight spaces, making them essential components in equipment such as robotics, automotive systems, and medical devices.

Specification

Model	ATO-CX-SD2010	ATO-CX-SD2510	ATO-CX-SD3210	ATO-CX-SD4010	ATO-CX-SD5010	ATO-CX-SD6310	ATO-CX-SD8010	ATO-CX-SD10010
Bore Diameter	20mm	25mm	32mm	40mm	50mm	63mm	80mm	100mm
Stroke	3/8 inch (10mm)
Working Fluid	Hydraulic Oil
Working Pressure	3~140kg·f/cm
Pressure Resistant	210kg·f/cm
Working Speed	8~100mm/sec
Working Temperature	-10~70℃

Note: If you need to customize compact hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

Bore Diameter	A	B	C	CL	D	SW	E	F	H	K	M	N	P1	P2	R	PT
φ20	51	43	8	6	12	10	44	30	5.5	5.6	9	M81.2512D	22.5	11	5	1/8
φ25	53	45	8	6	14	12	50	36	5.5	5.6	9	M101.515D	23	12	5	1/8
φ32	64	54	10	7	20	17	62	47	6.5	6.8	11	M121.7515D	28	14	10	1/4
φ40	65	55	10	7	25	22	70	52	9	9	14	M162.020D	28	15	10	1/4
φ50	71	60	11	8	30	27	80	58	11	11	18	M202.525D	29.5	18	10	1/4
φ63	80	67	13	10	35	32	94	69	13	13	20	M273.035D	61	20	10	3/8
φ80	95	78	17	14	40	35	114	86	15	15	22	M303.535D	66	27	15	3/8
φ100	99	82	17	14	45	40	134	102	17.5	18	26	M364.040D	36	27	15	3/8

Tips: How do you troubleshoot issues with a compact hydraulic cylinder?

To troubleshoot issues with a compact hydraulic cylinder, start by checking for visible leaks, as hydraulic fluid leaks can impair performance. Inspect the cylinder for damaged seals, and replace any that show signs of wear or deterioration. Ensure proper fluid levels and check for contaminants in the hydraulic fluid. If the cylinder is not moving smoothly, inspect the piston rod for bends or damage. Verify that the hydraulic hoses are securely connected and not kinked. Examine the pressure settings and adjust them if necessary. If the cylinder fails to extend or retract, check the directional control valve and associated connections. Additionally, listen for unusual noises during operation, as they may indicate internal damage. Regular maintenance, such as lubrication and seal replacement, can prevent many common issues. If problems persist, consult the manufacturer's documentation or seek assistance from a hydraulic system expert.
