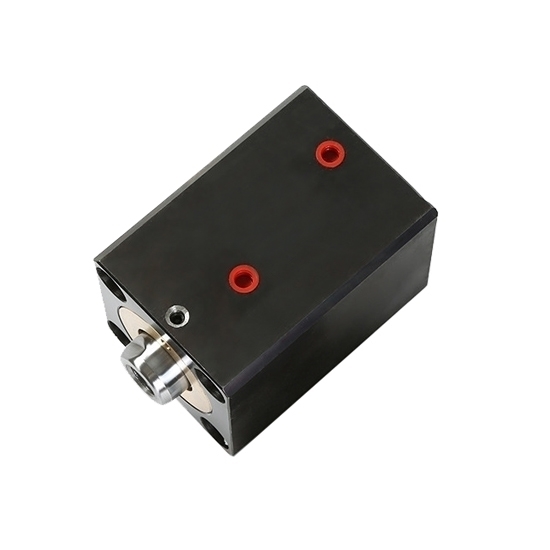

Double Acting Compact Hydraulic Cylinder, 4 inch (100mm) Stroke

$524.19

Double acting hydraulic cylinder offers precise control and reliable performance, designed to provide linear force through the use of pressurized hydraulic fluid. ATO favorable price compact hydraulic cylinder comes with 4 inch (100mm) stroke for compact and powerful solution, and bore diameters of 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm are available.

Bore Diameter *

SKU: ATO-CHC-100MM

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Compact hydraulic cylinders find widespread use in various industries, including manufacturing, automotive, and aerospace, where space constraints demand a more streamlined and efficient solution. These double acting hydraulic cylinders are constructed from durable materials to withstand the rigors of diverse industrial environments.

Specification

Model	ATO-CX-SD20100	ATO-CX-SD25100	ATO-CX-SD32100	ATO-CX-SD40100	ATO-CX-SD50100	ATO-CX-SD63100	ATO-CX-SD80100	ATO-CX-SD100100
Bore Diameter	20mm	25mm	32mm	40mm	50mm	63mm	80mm	100mm
Stroke	4 inch (100mm)
Working Fluid	Hydraulic Oil
Working Pressure	3~140kg·f/cm
Pressure Resistant	210kg·f/cm
Working Speed	8~100mm/sec
Working Temperature	-10~70℃

Note: If you need to customize compact hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

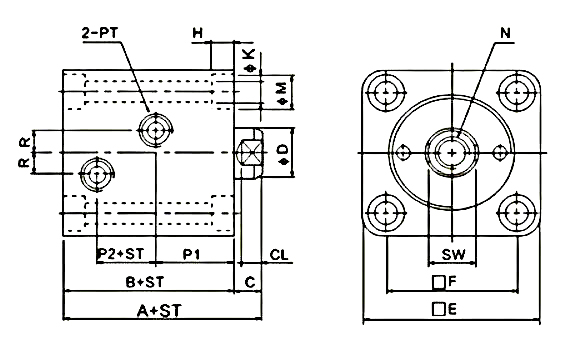

Dimension (Unit: mm)

Compact hydraulic cylinder dimension

Bore Diameter	A	B	C	CL	D	SW	E	F	H	K	M	N	P1	P2	R	PT
φ20	51	43	8	6	12	10	44	30	5.5	5.6	9	M81.2512D	22.5	11	5	1/8
φ25	53	45	8	6	14	12	50	36	5.5	5.6	9	M101.515D	23	12	5	1/8
φ32	64	54	10	7	20	17	62	47	6.5	6.8	11	M121.7515D	28	14	10	1/4
φ40	65	55	10	7	25	22	70	52	9	9	14	M162.020D	28	15	10	1/4
φ50	71	60	11	8	30	27	80	58	11	11	18	M202.525D	29.5	18	10	1/4
φ63	80	67	13	10	35	32	94	69	13	13	20	M273.035D	61	20	10	3/8
φ80	95	78	17	14	40	35	114	86	15	15	22	M303.535D	66	27	15	3/8
φ100	99	82	17	14	45	40	134	102	17.5	18	26	M364.040D	36	27	15	3/8

Tips: What maintenance is required for compact hydraulic cylinders?

Compact hydraulic cylinders, like any mechanical components, require regular maintenance to ensure optimal performance and longevity. Routine checks should include inspecting the cylinder for leaks, wear, and damage to seals. Verify that mounting bolts and connections are secure and properly torqued. Keep the piston rod clean and lubricated to prevent friction and corrosion. Check the hydraulic fluid levels and quality, ensuring it meets the manufacturer's specifications. Regularly inspect filters and replace them if necessary to maintain fluid cleanliness. Additionally, monitor the cylinder's overall operation for any signs of abnormal behavior, such as slow or uneven movement, which could indicate internal issues. Following the manufacturer's maintenance guidelines and scheduling periodic inspections can help prevent breakdowns and extend the lifespan of compact hydraulic cylinders.
