Circular Connector, 2/3/4/5/6/7/8/9/10 Pin, M16

5 out of 5 based on 1 reviews | Write a review

$48.83

Circular connector is used for connecting component and cable, cable and cable. It has simple and firm locking mechanism, easy to seal, insert and dismantle. Circular connector has 2/3/4/5/6/7/8/9/10 Pin, right angle plug, different shapes of socket to select.

Item *
Number of Pins *

SKU: ATO-CIRCN-16M

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Circular connector has 2/3/4/5/6/7/8/9/10 Pin to select.

Specification:

Model	ATO-CIRC-16M
Weight	0.5kg
Coupling mode	Threaded coupling
Shell material	Zinc base alloys with nickel plate
Insert material	Bakelite
Contact material	Copper (silver plating or gold plating)
Termination	Solder
Mating cycle	500 times
Temperature range	-20~+85℃
Cable diameter	≤Φ7.5mm~≤Φ8.5mm
Protection class	IP55

Technology parameter:

Number of pins	2	3	4	5	6	7	8	9	10
Rated current/voltage	30A-125V	30A-125V	30A-125V	16A-125V	8A-125V	8A-125V	8A-125V	8A-125V	8A-125V
Operating voltage	AC 200V	AC 200V	AC 200V	AC 250V	AC 200V	AC 200V	AC 200V	AC 200V	AC 200V
Withstanding voltage (in 1 minute)	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V
Insulation resistance at DC 500V (MΩ)	1500	1500	1500	1500	1500	1500	1500	1500	1500
Contact resistance at 1A (MΩ)	5	5	5	5	5	5	5	5	5
Solder cup diameter Ф (mm)	1.6	1.6	1.6	1.2	0.9	0.9	0.9	0.9	0.9
Pin diameter Ф (mm)	2.45	2.45	2.45	2	1.15	1.15	1.15	1.15	1.15

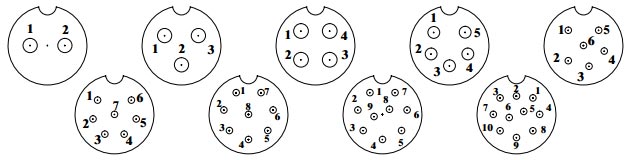

Pin assignments:

Dimensional drawing (unit: mm):

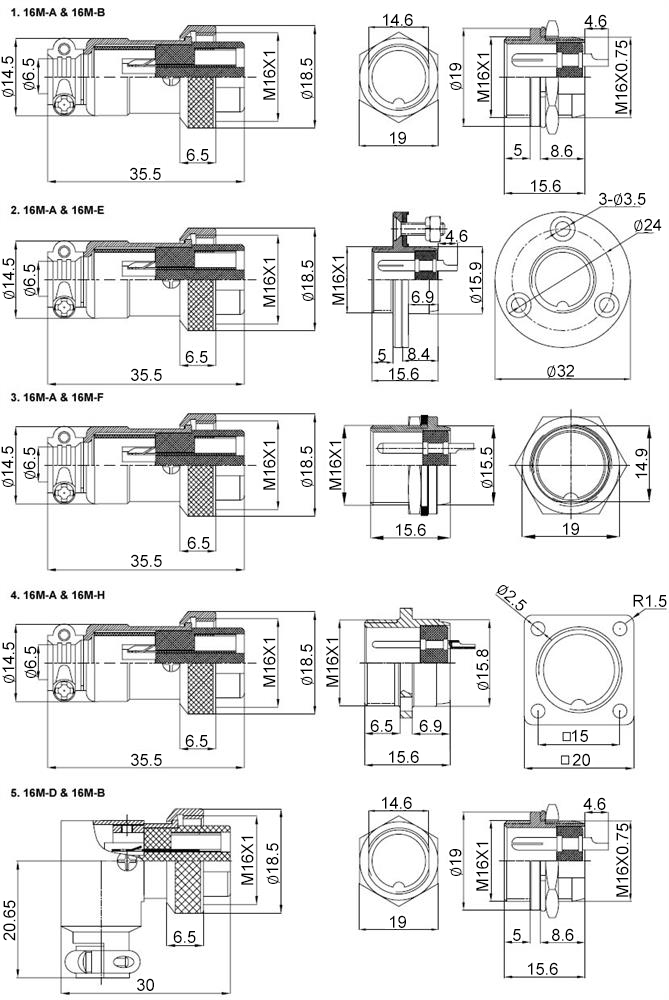

Circular connector 2 to 10 pin m16 dimensional drawing
Tips: Attachment of circular connector
Attachment is divided into structural attachment and mounting attachment. Structural attachments include rand, locating key, locating pin, guiding pin, connecting ring, cable clamp, gasket, waveform spring, shielding reed, seal ring and sealing gasket. Mounting attachments include bolt, screw, screw rod and spring ring.

In the video, ATO will take 5 pin M16 circular connector for circular connector assembly instructions.
