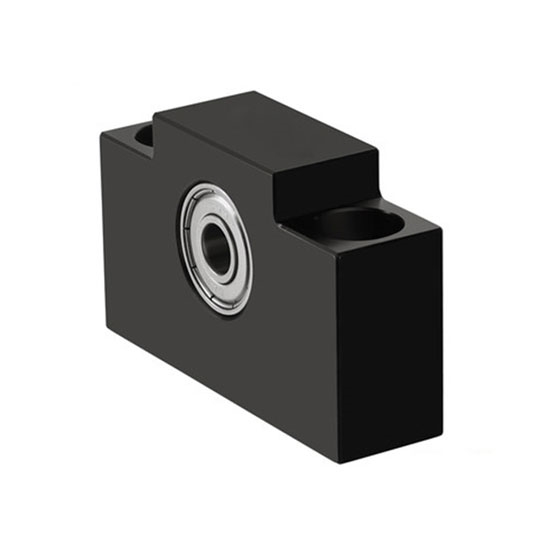

    Ball Screw Bearing, Diameter 25mm

    5 out of 5 based on 1 reviews | Write a review
    $132.89
    Small size ball screw support bearing diameter 25mm, high-precision miniature angular contact bearings have stable rotation performance, ball screw bearing internal bearing is closed with a special closed ring and has a long service life time.
    *
    SKU: ATO-BSB-AF
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Ball screw bearing shaft diameter can be selected from 10mm, 12mm, 15mm, 25mm, bearing contact angle of 45Ā°, small ball diameter and large number of balls. It is an ultra-small angular contact ball bearing with high rigidity and high precision, which can obtain stable rotation performance.

    Note: C7 level uses deep groove ball bearings to a maximum clearance of 0.005-0.1mm.

    Specification

    Model ATO-BSB-EF6 ATO-BSB-EF10 ATO-BSB-EF12 ATO-BSB-EF15 ATO-BSB-EF25
    Shaft Diameter 6mm 8mm 10mm 15mm 25mm
    Accuracy Grade C7 C7 C7 C7 C7
    L 12 20 20 20 42
    B 42 70 70 80 10
    H 25 40 43 50 50
    h 13 22 25 *3 10
    B1 18 36 36 41 95
    H1 20 21 24 25 58
    P 30 52 52 60 47.5
    V 17 22 26 32 30
    d1 5.5 9 9 11 56
    d2 9.5 / / / /
    e 11 / / / /
    Use Bearings B606ZZ B608ZZ B6000ZZ B6002ZZ B6205ZZ
    Use Ring Buckle STWN.S6 STWN.S8 STWN.S10 STWN.S15 STWN.S25
    Weight 0.06kg 0.14kg 0.46kg 0.55kg 1.35kg
    Certificate ISO9001, REACH, RoHS
    Warranty 12 Months

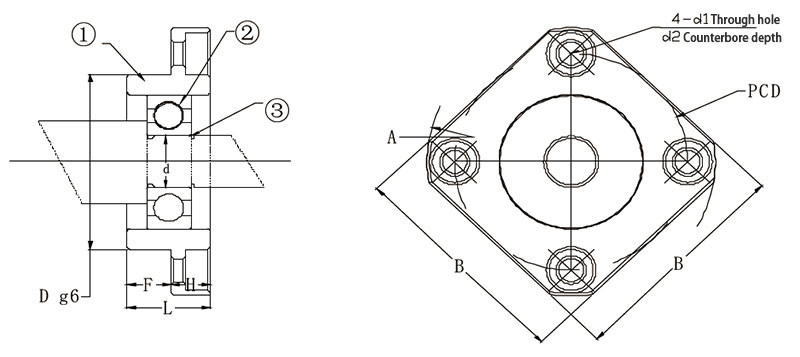

    Ball Screw Bearing Diameter 25mm DimensionĀ (unit: mm)
    Ball screw support bearing diameter 25mm dimension
    Part Details

    Number Part Name Quantity
    1 Housing 1 PC
    2 Bearing 1 Set
    3 Snap Ring 1 PC

    Tips: What is a ball screw?
    Ball screw is an ideal product that converts rotary motion into linear motion, or converts linear motion into rotary motion.
    Ball screw is the most commonly used transmission element in tool machinery and precision machinery. Its main function is to convert rotary motion into linear motion, or convert torque into axial repetitive force, and it has both high precision, reversibility and high Features of efficiency. Because of its small frictional resistance, ball screws are widely used in various industrial equipment and precision instruments.
