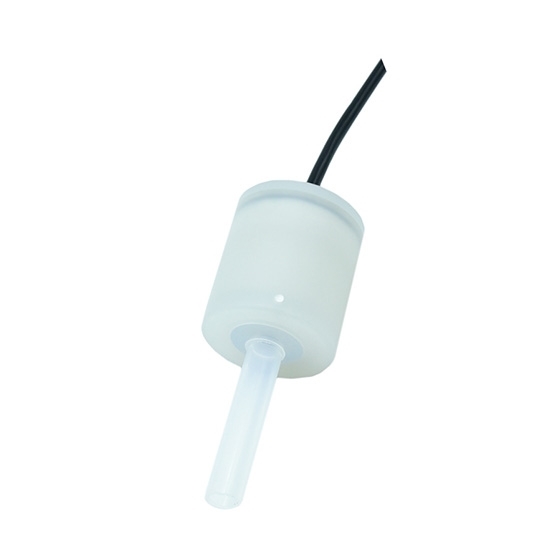

Anti-Corrosion Pressure Transmitter, 4-20mA Output

Write a review

$904.62

The anti-corrosion pressure transmitter can measure the pressure of corrosive gases and liquids. It comes with a standard 4-20mA output (other output modes can be customized), a range of -100~300 KPa (other ranges can be customized), supports large Hirschmann connectors or direct lead connections, and an operating temperature range of -10℃ to 85℃.

Measuring Range *
Output Signal *
Power Supply *
Electrical Connection *
Thread of Pressure Connection *

SKU: ATO-PRES-PA708

Qty:

30-day Returns

Free Shipping

Delivery date: 10-20 days

Overview

This anti-corrosion pressure transmitter uses a waterproof and breathable cable, which is anti-corrosion, moisture-proof, leak-proof, and tensile and durable, and is suitable for various complex working conditions. The range, output method, wiring method, electrical connection method, threaded connector style, etc. can all be customized according to needs. If necessary, please contact us for selection and customization.

Specification

Model	ATO-PA-708
Range	-100~300KPa (other ranges please contact us)
Accuracy	0.5%FS (customizable)
Output	4-20mA (default), 0-5V, 1-5V, 0-10V and other customized
Power supply	5VDC, 24VDC, 9-36VDC (optional)
Process connection	G1/2, 1/2NPT, M20*1.5 (customizable)
Electrical connection	Large Hirschmann connector, direct lead (optional)
Load capacity	Current type: R=(U-8V)/0.02Ω
Temperature compensation	0~75℃
Operating temperature	-10~85℃
Safe overload	150%
Ultimate overload	200%
Temperature drift	0.02%FS/℃
Long-term stability	0.2%FS/year
Wetted material	PP, PVDF, PTFE, PFA, FFKM

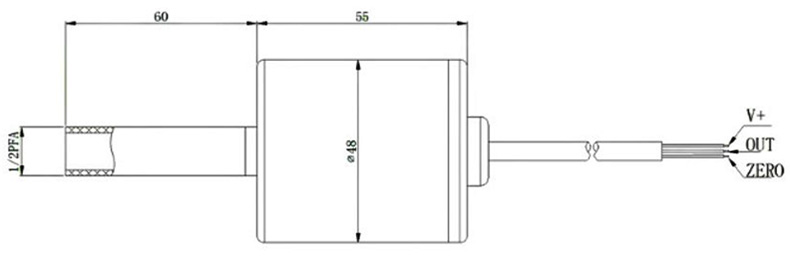

Dimension (mm)

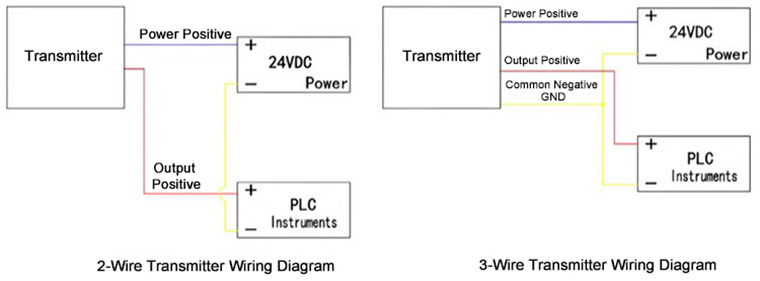

Wiring diagram

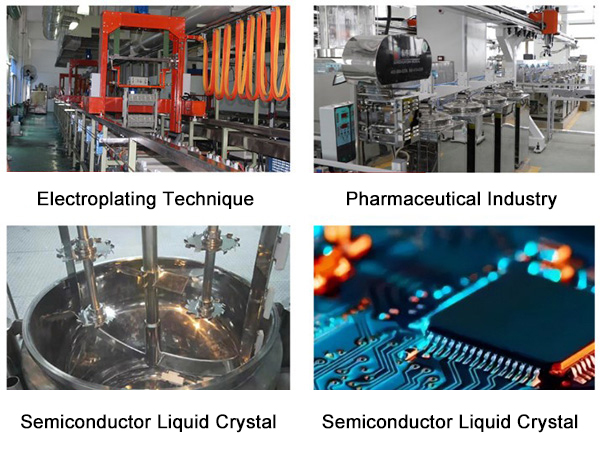

Applications

Tips: Advantages of anti-corrosion pressure transmitters

Excellent corrosion resistance: Using corrosion-resistant materials (such as stainless steel, titanium alloy, Hastelloy, etc.), it can work stably in corrosive gases and liquids for a long time.
High precision and long-term stability: The sensor has excellent linearity and repeatability to ensure accurate pressure measurement after long-term use.
Wide range of media compatibility: Suitable for corrosive gases, liquids and steam, covering a variety of complex media in the chemical, petroleum, pharmaceutical and other industries.
Waterproof and moisture-proof design: Adopting sealed structure and waterproof and breathable cable, it has good moisture and leakage resistance and adapts to harsh environments.
Rugged and durable, vibration and shock resistance: Adopting sturdy shell and anti-vibration structure, it has good resistance to mechanical shock and vibration, suitable for complex working conditions.
