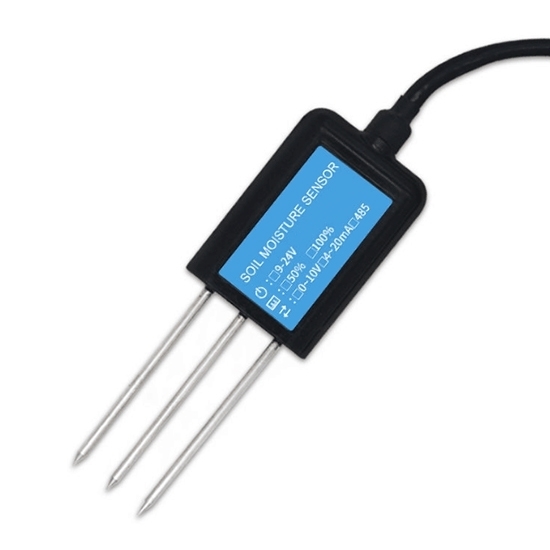

    Analog Soil Moisture Sensor, 0-100% RH

    $56.34
    Analog soil moisture sensor measures 0-100% RH with 0.1% resolution and accuracy of ±2% (0-50% RH) or ±3% (50-100% RH). The soil humidity sensor includes a temperature compensation sensor (0-50°C) and is IP68 rated for waterproofing. Made from anti-corrosion alloy and sealed with black epoxy resin, it can be fully buried or inserted in soil. Suitable for soil probe insertion or immersion in nutrient solutions.
    SKU: ATO-SOIL-VMS3000

    The analog soil moisture sensor measures 0-100% RH with 0.1% resolution and ±2-3% accuracy. It features temperature compensation (0-50°C), IP68 waterproofing, and is built with anti-corrosion alloy and epoxy resin sealing. Designed for full burial or insertion in soil, it’s ideal for soil or nutrient solution monitoring.

    Specification

    Model ATO-VMS-3000-TR
    Soil Moisture Range 0-100% RH, Resolution: 0.1% RH, Accuracy: 0-50% ±2% RH @ standard (30% RH, 25°C); 50-100% ±3% RH @ standard (60% RH, 25°C)
    Electrical Conductivity Temperature Compensation Built-in temperature compensation sensor, compensation range: 0-50°C
    Protection Level IP68 waterproof for long-term immersion
    Probe Material Anti-corrosion special alloy
    Sealing Material Black epoxy resin
    Installation Method Fully buried or probe inserted in measured medium
    Default Cable Length 2 meters
    Dimensions 45*15*123 mm
    Electrode Length 70 mm
    Measurement Principle Soil moisture TDR method
    Measurement Method Soil probe insertion or immersion in nutrient solution/water
    Operating Temperature -40°C~60°C
    Kernel chip temperature 85°C

    Features

    Analog soil moisture sensor feature

    • High Precision Measurement: Provides accurate and reliable soil moisture readings.
    • Fast Response: Quickly detects changes in soil moisture levels for timely data.
    • Corrosion Resistance: Made with anti-corrosive materials, ideal for long-term soil monitoring.
    • Long-Lasting Electrolyte Durability: Designed to withstand prolonged use in soil without degradation.
    • Stable Output: Ensures consistent data output for reliable monitoring.
    • Low Power Imported Chip: Features a high-quality, low-power chip for efficient performance.
    • IP68 Waterproof and Dustproof: Suitable for harsh outdoor environments, ensuring durability.
    • Epoxy Resin Vacuum Seal: Sealed with epoxy resin for enhanced protection against moisture and debris.

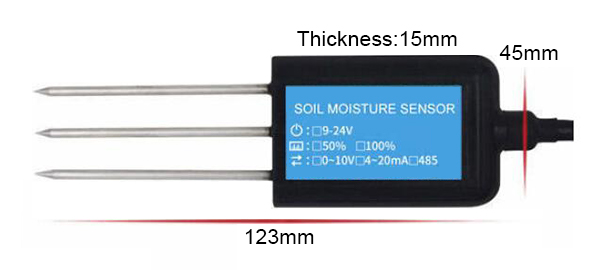

    Size

    Analog soil moisture sensor size

    Application

    Analog soil moisture sensor application

    Tips: How does the analog soil moisture sensor use the TDR method for measuring soil moisture?

    The analog soil moisture humidity utilizes Time-Domain Reflectometry (TDR) technology to measure soil moisture content. TDR works by sending an electrical pulse along a probe inserted into the soil. As the pulse travels, it interacts with the soil moisture, causing changes in the signal's reflection time. The sensor calculates moisture content based on these reflections, as the presence of water in soil affects the dielectric properties and thus the speed of the pulse. This method provides high accuracy, is less affected by soil salinity, and is reliable for various soil types, making TDR an industry-preferred choice for precise soil moisture monitoring.
