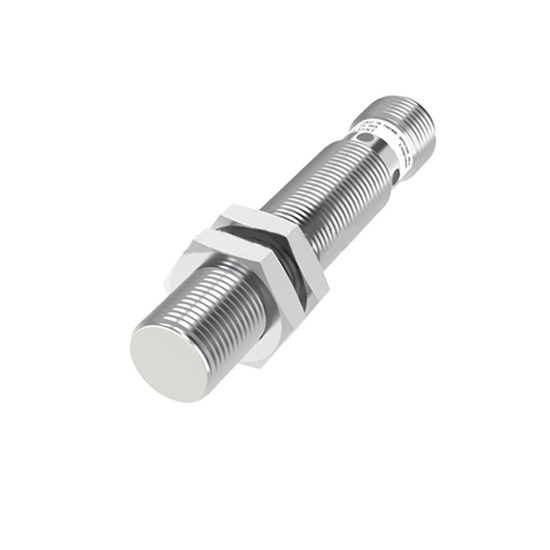

Analog Output Proximity Sensor, Inductive, Flush/ Non-flush

5 out of 5 based on 1 reviews | Write a review

$173.90

Cheap price analog output proximity sensor online for sale, analog inductive sensor has flush/ non-flush two installation types for selection, three output methods can be chosen, M12 connector or 2m PVC cable two connection types.M12 proximity sensor is widely used in displacement measurement, thickness measurement, material differentiation and other fields.

Installation *
Output Mode *
Connection *

SKU: ATO-LR12X

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Factory price inductive proximity sensor with flush and non-flush two different installation types, detection range 0.4-2mm/ 0.8-4mm, switching frequency 200Hz/ 100Hz. Inductive sensor analog output has advantages of light weight, small size and long service life.

Specification

Model	LR12X
Installation type	Flush	Non-flush
Rated distance	2mm	4mm
Detection range	0.4-2mm	0.8-4mm
Switching frequency	200 Hz	100 Hz
Analog signal output	0-10V/ 0-20mA/ 4-20mA/ 0-10V+0-20mA
Diameter	M12
Connection type	M12 connector/ 2m PVC cable
Supply Voltage	15-30VDC
Standard target	Fe 12121t
Switch-point drifts	≤±10%/ Sr
Linearity	≤±5%
Repeat accuracy	≤±3%
Load current	≥4.7KΩ (voltage output) ≤470Ω (current output)
Current consumption	≤20mA
Loop protection	Reverse polarity protection
Power indicator	Yellow LED
Ambient temperature	-25℃-70℃
Ambient humidity	35-95% RH
Voltage withstand	1000V/ AC 50/ 60Hz 60s
Insulation resistance	≥50MΩ (500VDC)
Vibration resistant	Complex amplitude 1.5mm 10-50Hz (X, Y, Z directions for 2 hours each)
Protection class	IP67
Housing material	Nickel-copper alloy
Certificates	CE, UL,CCC, ROHS
Warranty	12 months

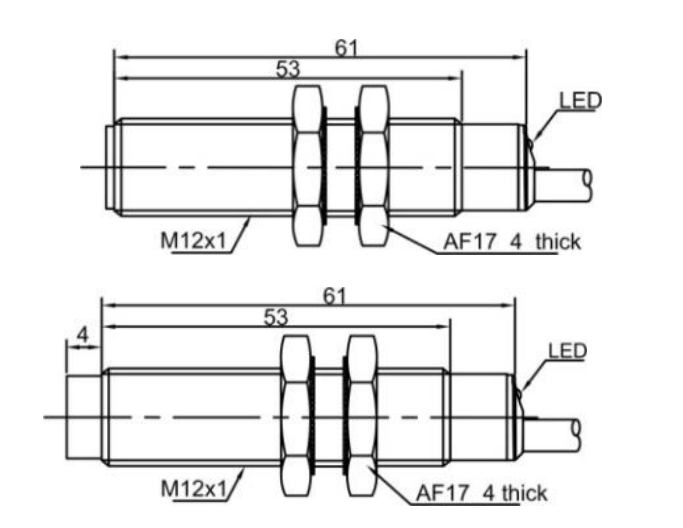

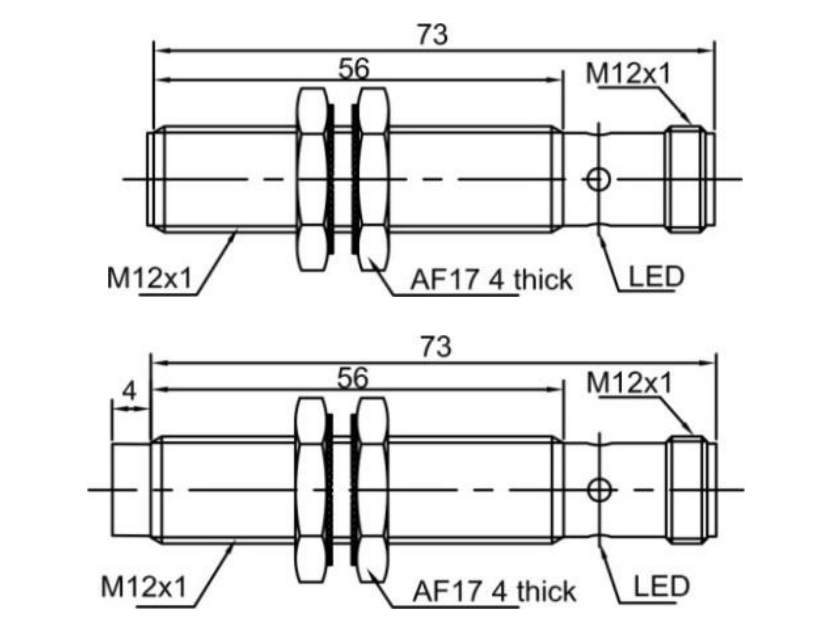

Dimension (unit=mm)

Wiring diagram

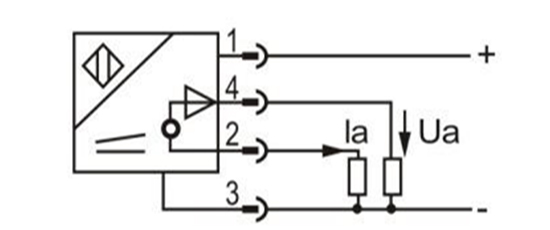

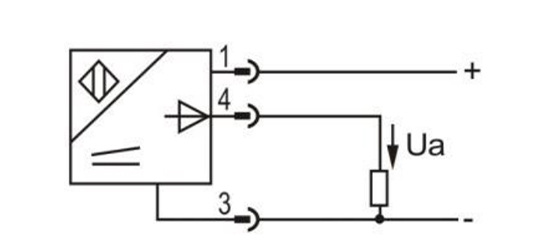

0-10V 0-10V+ 0-20mA

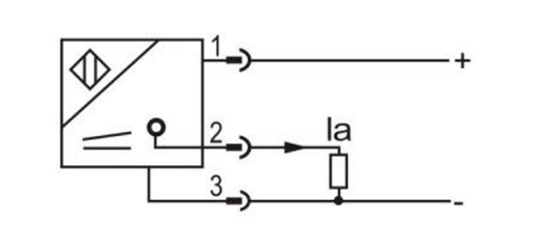

0-20mA/ 4-20mA

Tips: What is Inductive Proximity Sensor?

Proximity sensor is a general term for sensors that replace contact detection methods such as limit switches and perform detection without touching the detection object. The movement information and existence information of the detected object are converted into electrical signals. The detection methods that are converted to electrical signals include the method that uses eddy currents generated in the metal body of the detection target caused by electromagnetic induction, the method that captures the change in the capacity of the electrical signal caused by the proximity of the sensing body, the method of sharp stone and the guide switch.

In this video, ATO will show you the differences between inductive and magnetic.

Change the PNP (NPN) proximity sensor to NPN (PNP)

The polarity of the proximity sensor has two types, PNP and NPN. We show you how to change the PNP (NPN) type proximity sensor to the NPN (PNP) type.

2-wire AC proximity switch/sensor wiring

We have proximity switches with a diameter of 4mm~30mm, applicable voltages are 24V DC/120V AC/240V AC, which can detect metal and non-metal objects.
