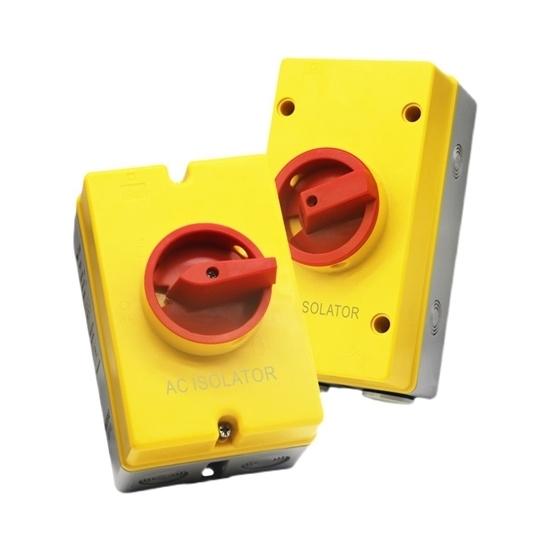

Waterproof AC Isolator Switch, 32A/40A/63A/80A, 4 Pole

4 pole 32A/40A/63A/80A AC isolation switch is a rotary isolating switch for disconnecting and isolating circuits. It comes with 50/60Hz operating frequency, CE certificate, 415V to 690V DC voltage and IP 66 waterproof rating.

Features

• Non-flammable Materials: The AC isolating switch uses PC flame retardant materials and insulating flame retardants.
• Waterproof Sealing Ring: Enhanced sealing protection, IP66 waterproof level.
• Flexible Knob: Provides flexible handle conversion and long mechanical life.
• Inlet and Outlet Holes: There are two separate holes on both sides of the isolating switch for inlet and outlet lines.

Specifications

• Model: ATO-YRASEL
• Number of Poles: 4 Pole
• Rated Voltage: 415V DC to 690V DC
• Rated Current: 32A/40A/63A/80A
• Dimensions: 150X103X121mm (32A), 200X100X115mm (40A/63A/80A)
• Waterproof Grade: IP66
• Operating Frequency: 50/60Hz
• Certificate: CE
• Implementation Standard: IEC60947-3
• Ambient Temperature: -25℃~+75℃
• Insulation Voltage: AC 690V
• Connection Type: M20 M25

Tips: What is AC isolator switch?

An AC isolator switch is a device used to safely disconnect an AC electrical circuit from its power source. It ensures that electrical equipment or circuits can be safely maintained or repaired without the risk of electrical shock or damage. The switch isolates the circuit by breaking the connection between the power source and the equipment, typically featuring a manual operation mechanism and often designed to handle high voltage and current levels. It can also include features like IP ratings for protection against environmental factors and load-breaking capacities to handle electrical loads safely.
