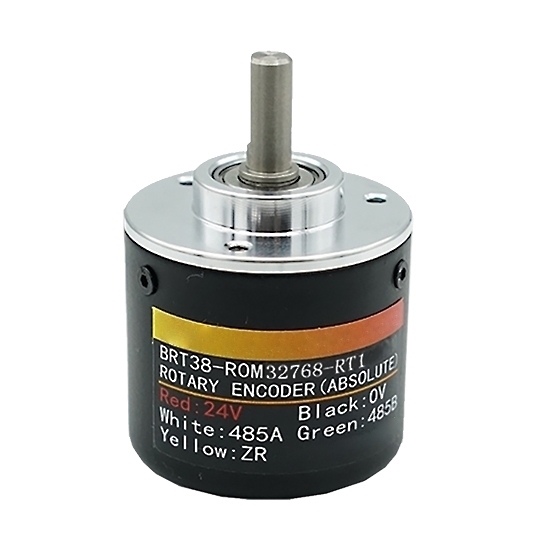

    Absolute Encoder, 10 Bit, Multi-turn, RS485/ CAN

    5 out of 5 based on 2 reviews | Write a review
    $133.33
    High quality 10 bit rotary encoder online for sale. Multi-turn absolute encoder with RS485/ CAN two communication interfaces for selection, working voltage 5V/ 24V are optional, 10 bit absolute encoder with natural binary code encoded output. The shaft encoder is widely used computer input devices such as optomechanical mice and trackballs, controlled stress rheometers and rotating radar platforms.
    *
    *
    *
    SKU: ATO-RE-39M10
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High resolution rotary encoder with shaft diameter 6mm/ 8mm, blind hole 8mm are optional, multi turn absolute rotary encoder with 100mA working current, 24/ 50/ 99/ 1287/ 4968/ 19872 turns can be choose. The multiturn absolute encoder has advantages of small size, light weight and long service life.

    Specification

    Model ATO-RE-38R0M1024 ATO-RE-38C0M1024
    Electrical parameters Communication Interface RS485 CAN
    Protocol Modbus rtu CAN 2.0
    Number of turns 24/ 50/ 99/ 1287/ 4968/ 19872 turns
    Working voltage 5V-24V
    Baud rate 9600-115200 (default 9600)
    Working current 100 mA
    Resolution 10 bit (1024)
    Encoded output Natural binary code
    Outer diameter/ shaft diameter 39mm/ 50mm/ 39mm
    Shaft diameter/ blind hole 6mm/ 8mm/ 8mm
    Working current 50 mA
    Linearity 0.10%
    Kernel refresh cycle 50 uS
    Station numbeer/ address 1-127 (default 1)
    Electrical life >100000h
    Mechanical parameters Maximum machanical speed 1000 rpm
    Shell/ flange material Zinc-nickel coated steel/ Aerospace aluminum
    Shaft material Stainless steel
    Bearing material Bearing steel
    Maximum load of the shaft Axial 20N, radial 80N
    Starting torque 0.006 Nm
    Environmental parameters Operating temperature -40-85
    Storage temperature -40-85℃
    Humidity 98% (No condensation)
    Waterproof Shell: IP54; Shaft, bearing: IP65
    Wiring methods Red Positive power sipply (5V, 9-24V)
    Black Ground (GND)
    Yellow ZR
    Green RS485B CANH
    White RS485A CANL

    Dimension (mm)

    Shaft diameter 6mm

    Dimension of rotary encoder shaft 6mm

    Shaft diameter 8mm

    Dimension of rotary encoder of shaft 8mm

    Blind hole 8mm

    Dimension of rotary encoder of blind hole 8mm

    Tips: Different betwwen Single-turn and Muititurn Absolute Encoder.

    The multi-turn rotary encoder is made on the basis of the single-turn absolute rotary encoder through the principle of mechanical transmission and the mechanical principle of clock gears. The multi-turn encoder signal output includes parallel output, serial output, bus type output, and transmission-body type output.

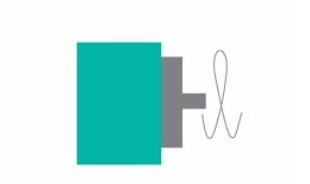

    Single-turn absolute encoders provide a range of 360 degrees (single-turn). When the drive shaft rotates more than 360 degrees, subsequent output characteristics will be identical to the first lap. (Example: output at 361 degrees = output at 1 degree; output at 720 degrees equals output at 360 degrees.)Single turn absolute rotary encoder
    Multi-turn encoders provide ranges in excess of 360 degrees by measuring additional revolutions. The output signal is based on the number of revolutions and the position of the drive shaft within one revolution. For example: the output signal/value after 3.5 (starting at 0) turns will be seven times higher than the output after half a turn.Multi turn absolute rotary encoder
