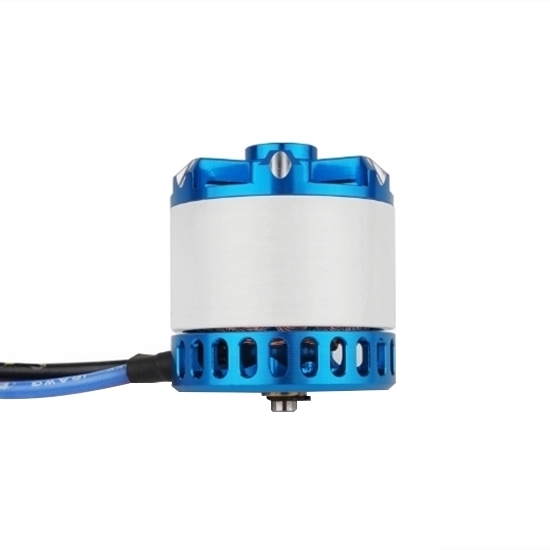

    980KV Brushless Motor for Drone, 3S/4S

    $85.96
    Factory price 3~4S brushless motor for drone. 980KV brushless drone motor with high efficiency, lightweight, low noise, and high thrust, suitable for RC aircraft, airplanes, helicopters and fixed-wing drones. 1250KV/1400KV speed is also available.
    *
    SKU: ATO-BDM-980
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    980KV/1250KV/1400KV brushless motor is available with a 3mm shaft diameter, NSK precision bearings and 3~4s lipo. Low price brushless drone motor can provide a longer run time for the fixed-wing drone.

    Specifications

    Model ATO-X2212-980 ATO-X2212-1250 ATO-X2212-1400
    Motor KV 980KV 1250KV 1400KV
    Interphase Internal Resistance 92mΩ 54mΩ 43mΩ
    Motor Weight 57g 59g 57g
    No-Load Current 0.6A/10V 0.8A/10V 1A/10V
    Maximum Continuous Power 385W 518W 560W
    Maximum Continuous Current 26A/30s 35A/30s 37A/30s
    ESC Recommended 20-30A 30-40A 30-40A
    Recommended Propeller Specifications APC9047/9045/8038 APC9047/9060/8060/ APC9047/9045/8038
    Operating Rated Voltage (Lipo) 3-4S
    Stator Diameter 3.175mm
    Stator Thickness 12
    Number of Slots 12N14P
    Motor Size Long shaft: φ27.5*46.0mm, short shaft: φ27.5*32.5mm(Short axis)
    Motor Silicone Wire Specifications 20AWG 110mm


    Features

    • Each brushless drone motor is made by strict dynamic balancing. Original NSK bearings for lower noise and smoother operation. High-precision CNC machined parts, and fine assembly process to achieve higher runout and concentricity standards.
    • 980KV/1250KV/1400KV brushless motor cool magic blue rotor end cap with six contours, strong and sturdy. High-quality white metallic paint with blue end caps for a more chic layered aesthetic. The stator end caps are hollowed out around the perimeter, which also increases the heat dissipation area for better heat dissipation.

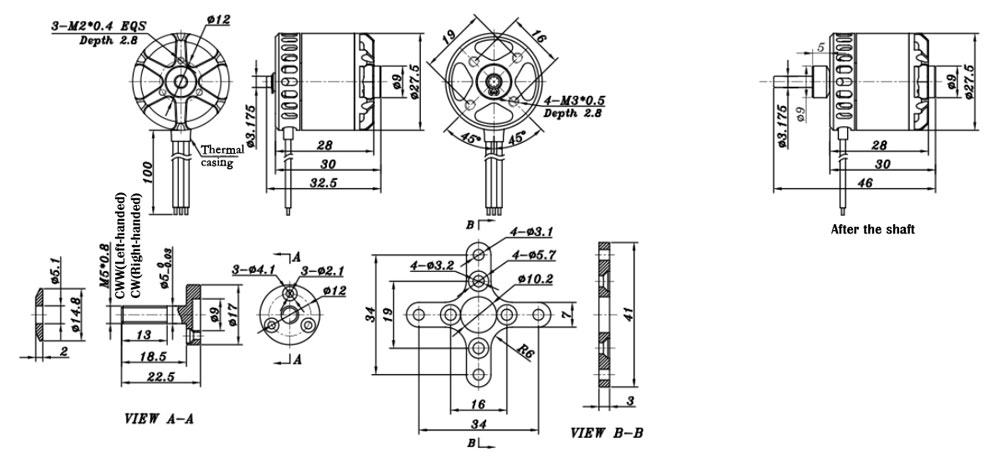

    Dimensions (Unit: mm)

    980KV brushless motor dimension

    Tips: How Much RPM Motor is Required for Drones?

    The brushless drone motor used in a drone is defined by "KV". The general rule of thumb for finding the speed of a brushless motor at zero loads is RPM = KV * Volt. KV = the rating of the brushless motor & Volt = the total potential difference of the lithium polymer battery.

    A wide variety of brushless motors are used in drones, ranging from 40KV to 1900KV. Quadcopters and triacopters use higher KV motors, and octocopters use lower KV motors. The lower KV motors run at slower RPMs, but they can generate more thrust by handling larger propellers. The higher KV is better suited to handle smaller propellers. As a result, low KV brushless motors can produce more thrust even at low speeds. They are also more expensive than higher KV motors.

    The volts of a lithium polymer battery now depend on the "number of cells". (1 cell = 3.7 V) Typically, drones use 3 to 6 Li-Po cells. Therefore, the volts are between 11.1 V and 22.2 V. Now, you can calculate the speed (RPM) of the drone. The speed (RPM) of the motor ranges from 1000 to 20,000.
