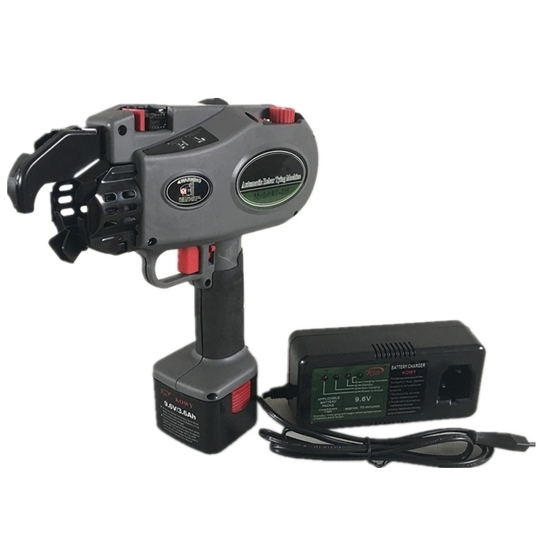

The provided rebar tying machine uses 9V NI-MH battery technology to make rebar tier ties approx 1400 knots per charge. Rebar tier machine provides 4-28mm/45mm/58mm binding rebar range, automatics model, fast and convenient, 3-4 times work efficiency of labor efficiency.
Features
- The rebar tying machine uses a DC 9.6V NI-MH battery and could work 1400 knots per time charging.
- Charge time is 70 minutes. The total length of the wire roll is 100.
- The biggest feature of the rebar tying tool is efficient and convenient. Its efficiency is 2-3 times as labor work.
- Rebar tier machines could drastically lower the work strength and save manpower.
Specifications
Model |
ATO-RT-235 |
ATO-RT-395 |
ATO-RT-550 |
Machine Size |
295x100x260mm |
295x100x260mm |
295x100x260mm |
Machine Net Weight |
2.4kg |
2.5kg |
2.6kg |
Packing Weight |
6.9kg |
7.0kg |
7.1kg |
Battery Model |
9.6V Ni-MH battery |
9.6V Ni-MH battery |
9.6V Ni-MH battery |
Battery Charging Time |
70min |
70min |
70min |
Number of Machines |
2 Coil-3 Coil |
2 Coil-3 Coil |
3 Coil-4 Coil |
Scope of Binding Reinforcement |
4-28mm |
4-45mm |
4-58mm |
Wire Diameter |
0.8mm |
0.8mm |
0.8mm |
Wire Length |
100m |
100m |
100m |
Wire Weight |
0.40kg |
0.40kg |
0.40kg |
Wire Length |
43-59cm |
65-82cm |
105-125cm |
Number of Wire Knots Per Reel |
230 knots |
180 knots |
100 knots |
Number of Knots Per Charge |
1400 knots |
1400 knots |
1300 knots |
Each Distribution Wire |
4 NOS |
4 NOS |
4 NOS |
Number of Machines Per Machine |
2 NOS |
2 NOS |
2 NOS |
Number of Machines Per Set |
1 NOS |
1 NOS |
1 NOS |
Applications
Rebar tying machine is widely used in buildings, bridges, roads, railways, infrastructure, national defense projects, special projects and other fields. It replaces traditional manual binding with fully automatic intelligent binding steel bar technology, which greatly improves work efficiency and reduces the labor intensity of workers.
Tips: What is a rebar-tying machine?
Due to the use of a lithium battery, automatic steel rebar tying machine is also known as automatic lithium battery steel binding machine. This is a kind of hand-held battery-type high-speed steel bar binding tool, which can replace the original manual rebar binding operation. It has a built-in steel bar controller, which can complete all the steps automatically. Automatic rebar tier has been widely used in the field of construction engineering, and instead of manual binding reinforcement.
