    800W Wind Turbine MPPT Charge Controller, 12V/24V/48V
    Picture of 800W Wind Turbine MPPT Charge Controller, 12V/24V/48V
    Picture of 800W Wind Turbine MPPT Charge Controller, 12V/24V/48V

    800W Wind Turbine MPPT Charge Controller, 12V/24V/48V

    5 out of 5 based on 3 reviews | Write a review
    $169.23
    Wind mppt charge controller for wind turbine generator, 800W, 12V or 24V is optional, the wind controller makes the wind power system safe, stable, reliable and has a long service life. Wind mppt charge controller automatically recognizes 12V/24V/48V battery.
    *
    SKU: ATO-WTCMPPT-800
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy cheap price 12V/24V/48V wind turbine charge controller, mppt control, fan power output, good charging effect, economical and applicable, breeze start wind turbine, 800 watt rated power.

    Note:

    The controller needs to be selected according to the power of the wind turbine and the battery voltage.

    Max voltage setup: 12.4V for 12V batteries, 29V for 24V batteries, and 58 for 48V batteries.

    Specification:

    Model ATO-WTCMPPT-800
    Rated Voltage 12V/24V, 24V/48V (Automatic recognition voltage) ATO recommends the same generator voltage as the battery voltage
    Wind Generator Rated Power 800W
    Protection Overcharge, overdischarge, reverse connnection of batteries,overloading, lighting, current control, automatic braking
    Function MPPT Charging
    Unloading Way PWM Electrodeless and noiseless unloading
    Working Temperature -20~+60°C 35~85%RH
    Dimension 100*85*15mm
    Net Weight 0.4kg

    Features
    1. High quality technical components ensure the stability and reliability of the wind turbine controller.
    2. Waterproof and dustproof, the controller can be used in various outdoor environments.
    3. Voltage/current control charging ensures that the battery is always charged.
    4. The MPPT charging effect is to collect electrical energy from the generator and charge the battery.
    5. Use PWM to unload excess electron energy to protect the battery and ensure the safety of the wind generator.

    Wind Power System Connection Diagram
    Wind power system control schemes

    Existing reviews of 800W Wind Turbine MPPT Charge Controller, 12V/24V/48V
    connect 24V wind turbine with 12v battery
    Hi,
    Can we connect 24V wind turbine with that controller, to charge 12V battery?
    thanks for your response
    From: Dago | Date: 29/06/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, 24V wind turbine can be connected to charge the 12V battery, but we recommend that the input voltage and output voltage be consistent to avoid triggering the automatic protection of the controller prematurely.
    Lif
    At the present time I have 12 v battery's I will be switching over to lithium ion phosphate  battery's next year will this controller accommodate these battery's
    From: larry | Date: 21/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    4 strings of lithium iron phosphate are ok.
    Will your wind turbine charge controller regulate / transform power from a 24v wind generator and feed a 48v battery bank?
    Will your wind turbine charge controller regulate / transform power from a 24v wind generator and feed a 48v battery bank? (we have 2) If not do you have anything that will? How does it shed load when batteries full?
    From: Jaime | Date: 14/04/2020
    Was this review helpful? Yes No (0/0)
    ATO Responded
    No, our wind turbine charging controller cannot regulate / convert the power of a 24v wind generator and power a 48v battery pack. Wind turbine output voltage should be the same as battery charging voltage.
    When the battery is fully charged, the fan is automatically instructed to brake and the turbine stops generating electricity.
    Load more reviews...
    Write your review for 800W Wind Turbine MPPT Charge Controller, 12V/24V/48V
    • Only registered users can write reviews
    • Bad
    • Excellent
    Related products
    500W Horizontal Axis Wind Turbine, 12V/24V/48V

    500W Horizontal Axis Wind Turbine, 12V/24V/48V

    $614.62
    SKU: ATO-WT-500M2
    Cost-effective horizontal axis home wind turbine generator for sale, rated power of 500 watt. With its advanced design, the horizontal axis wind turbine provides high power output while minimising noise and vibration.

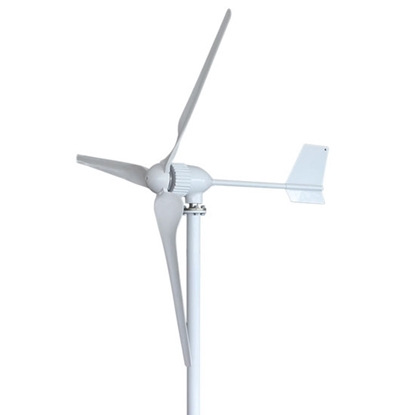

    800W Horizontal Axis Wind Turbine, 24V/48V
