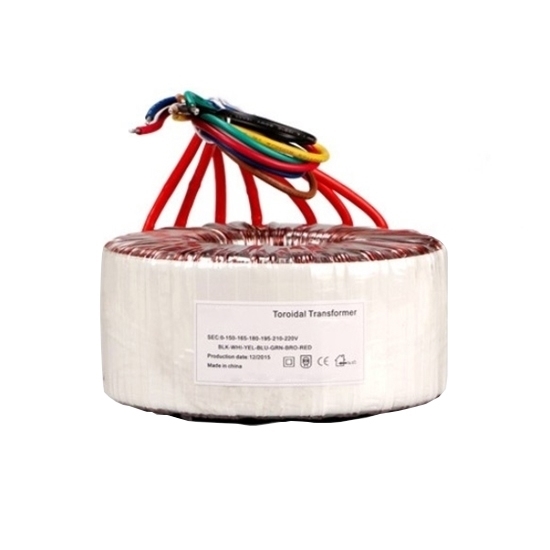

    800VA Toroidal Transformer, 230V AC to 50-0-50V

    $264.47
    Single phase dry-type toroidal transformer with 800VA (800W) full power, all copper design, single input of 230V AC, and output of 50-0-50V (2x50V), double outputs are available. Twin secondary windings may be connected in series, parallel, or used independently.
    *
    *
    SKU: ATO-T-C800VA
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Best and cheap 800VA toroidal transformer is single-phase, made with cold-rolled silicon steel core and pure copper winding and lead. It features one 230V/50-60Hz primary winding and one 110V or two 2x50V secondary winding, high insulation strength, CE recognized, less noise, and long life.

    Advantages of ATO Toroidal Transformer

    1. High Efficiency: Winding matches the core perfectly, which makes the transformer more efficient.
    2. Long Service Life: With high-quality materials and manufacturing technology, the transformer can be used for 30 years.
    3. Less Noise: The core is seamlessly rolled and the winding is set evenly over it, which makes the transformer quiet when it is working.
    4. Less Radiation: Toroidal structure and winding technology reduce electromagnetic radiation.
    5. Low Temperature Rise: Even if it is overloaded at 120%, the temperature rise will be less than 70℃.

    800VA Toroidal Transformer Specifications

    Model ATO-C800VA
    Phase Single phase
    Power 800VA (800W)
    Primary Voltage 230V AC (Optional: 110V, 120V, 220V, 230V, 240V)
    Secondary Voltage 2x50V (50-0-50) (Optional: 12V, 24V, 48V, 110V, 220V, 2x6V, 2x12V, 2x15V, 2x24V, 2x30V, 2x35V, 2x40V, 2x50V, can be customized)
    Secondary Current 7.27A
    No. of Inputs 1 input
    No. of Outputs 2 outputs, 4-wire (1 output is available)
    Note: For the transformer with 2 outputs 4-wire, each output provides the same voltage and current level, the sum of 2 output power capacities is equal to the total capacity.
    Frequency 50Hz/60Hz
    Winding Material Copper Wire
    Coil Structure Toroidal
    Efficiency 90%-96%
    No-load Loss <5W
    Voltage Strength DC2500V
    Insulation Impedance ≥500MΩ
    Cooling Method Natural air cooling
    Temperature +40℃
    Certification CE, RoHS, ISO
    Warranty 12 months
    External Diameter 158mm
    Height 67mm
    Pedestal 160*160mm
    Mounting Hole Distance 150*150mm
    Weight 7kg
    Package Included 1*Toroidal transformer + 1*Accesorries sets (Nut, Shim, Metal disk, Rubber gasket, Pedestal, Screw)

    Toroidal Transformer Accessories

    toroidal transformer accessories

    Toroidal Transformer Mounting Methods

    toroidal transformer mounting method

    Toroidal Transformer Internal Structure

    toroidal transformer internal structure



    Tips: Why does the toroidal transformer need a shielding layer?

    With the advantages of small size, low noise, low heat generation and high conversion efficiency, the toroidal transformer has been widely used in areas such as industrial automation equipment, instruments, medical and health, as well as household appliances.

    The toroidal transformer is mainly composed of the coil and annular core, and the coil can be further divided into primary coil and secondary coil. Among them, some toroidal transformers have shielding layers between the primary and secondary windings, which are generally used in instruments and high-end audio equipment, so what is the function of the shielding layer?

    1. The addition of a shielding layer can increase the distance between the primary and secondary windings so that the coupling capacitance between poles can be reduced, and the electromagnetic noise of the transformer can also be reduced, but the leakage inductance will increase.
    2. The common-mode interference signal between the primary circuit can be grounded through the shielding layer, to prevent it from being transmitted to the secondary coil and affecting the normal operation of the secondary circuit.
    3. There is a high requirement for the production of shielding layers because the quality of shielding layers determines the quality of a toroidal transformer.

    Compared with ordinary transformers, toroidal transformers have great advantages in efficiency, temperature rise, cost, anti-interference, and longevity. This video will showcase its function and benefits.
